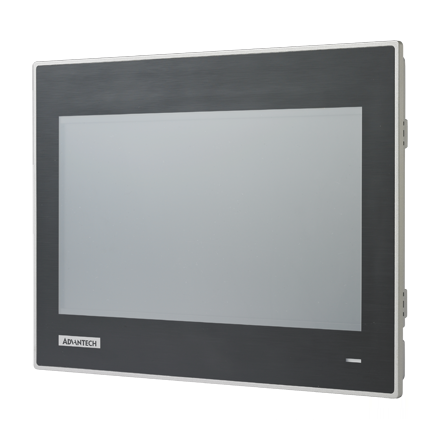

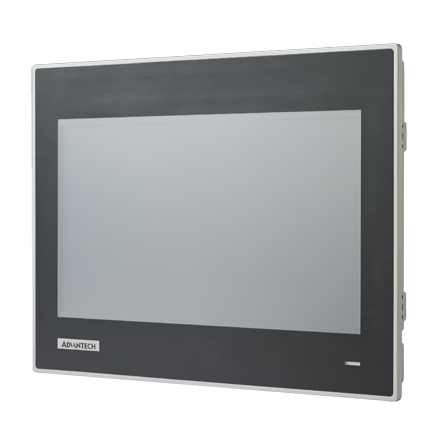

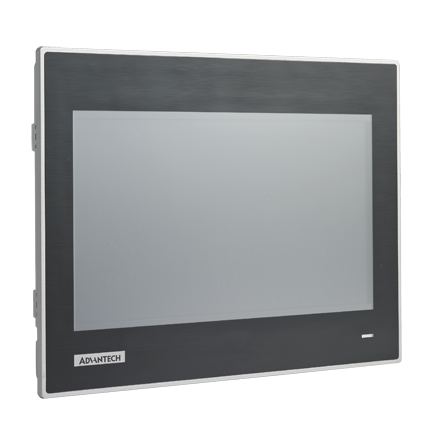

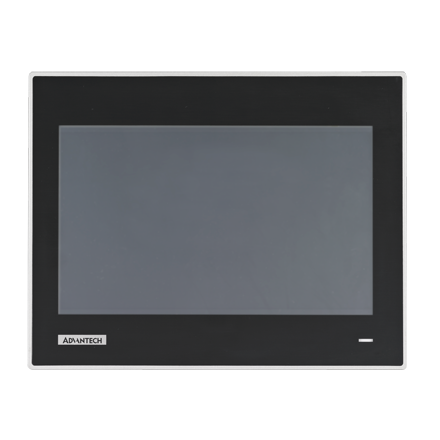

WOP-3100T 10.1″ WSVGA Cortex™ – A8 Operator Panel with Wide Operating Temperature Range
Call for Price
With brand-new ID design, the WebOP-3100T provides stringent standards required in the automation market. Advantech offers the WebOP-3100T with Cortex™-A8 processor which consumes minimum power without sacrificing performance. The WebOP-3100T supports a variety of LCD sizes from 4.3″ to 15″ for different applications involving the use of PLCs, motion/thermal controllers, inverters and sensors. It’s also provided with a wide operating temperature range to fulfill the requirements of harsh environments.
Please click the link below to open the PDF datasheet
View Datasheet -
- RISC 32 bits TI ARM® Cortex™-A8 processor
- Various LCD sizes (7″, 8″, 10.1″, 12″, 15″)
- Full line LED BL TFT LCD with 50K life time
- Embedded Microsoft® WinCE 6.0 OS
- Support WebOP Designer HMI Runtime development tool
- Backup Memory FRAM in 128KB(64 words) without battery concern
- Power & Terminal I/O ports isolation protection
- -20°C ~ 60°C wide operating temperature range
- Support CANopen library registered by CiA 301 V4.02
- RS-422/RS-485/CAN terminal I/O ports support Termination Resistor 120Ω
- Front panel IP66 compliant
- Die-cast aluminum alloy front bezel
General
-
- Certification: CE, BSMI, CCC, UL, FCC Class A
- Dimensions (W x H x D): 271.5 x 213.5 x 43.2 mm (10.69 x 8.41 x 1.7 in)
- Cutout Dimensions: 260 x 201.5 mm (10.24 x 7.93 in)
- OS Support: Microsoft® Windows CE 6.0
- Power Input: 24VDC ±10%
- Power Consumption: 9W (Typical)
- Enclosure: Housing PC + ABS
- Mounting: Panel
- Weight (Net): 1.2 kg (2.65 lbs)
System Hardware
-
- CPU: ARM® Cortex™-A8 32-bit, 600 MHz, RISC processor
- Backup Memory: FRAM 128KB
- Memory: DDR2 256MB on board
- Storage: 512MB on board SLC type
- Power-On LED: Yes

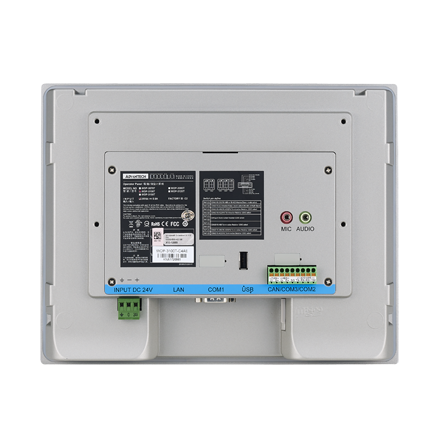

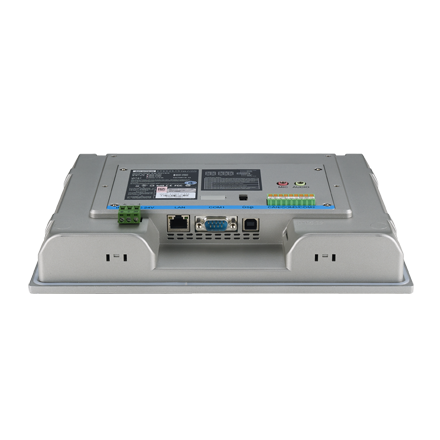

Communication Interface
-
- COM1: RS-232/422/485 (DB9 Male)
- COM2: RS-422/485 (Terminal Plug 4-Pin)
- COM3: RS-485 (Terminal Plug 2-Pin)
- CAN: Terminal Plug 2-Pin
- Ethernet (RJ45): 10/100BASE-T
- I/Os: 1 x USB 2.0 (Client), 1 x USB 2.0 (Host), 1 x micro SD slot, 1 x Audio line out, 1 x mic in
LCD Display
-
- Display Type: WSVGA TFT LCD
- Display Size: 10.1″
- Max. Resolution: 1024 x 600
- Max. Colors: 64K
- Luminance (cd/m2): 550
- Viewing Angle (H/V): 140/110
- Backlight Life: LED, 50,000 hr
- Dimming: Adjustable by touch panel
- Contrast Ratio: 500:1
Touchscreen
-
- Lifespan: 36 million touches of 8 mm in diameter through silicone rubber, with at least 250 g load, twice per second
- Light Transmission: above 80%
- Resolution: Linearity
- Type: 5-wire analog resistive
Environment
-
- Operating Temperature: -20 ~ 60 °C (-4 ~ 140 °F)
- Storage Temperature: -30 ~ 70 °C (-22 ~ 158 °F)
- Humidity: 10 ~ 90% RH @ 40 °C, non-condensing
- Ingress Protection: Front panel: IP66
- Vibration Protection: Operating, random vibration 1 Grms (5 ~ 500 Hz)
