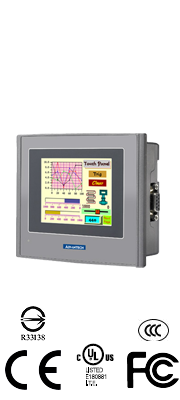

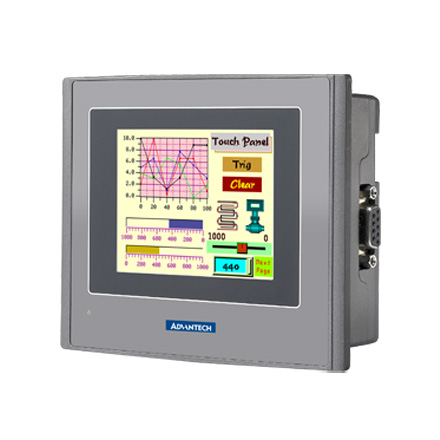

WOP-2035V 3.5″ QVGA Operator Panel with WebOP Designer 1.2 Software
Call for Price
To satisfy the stringent standards required in the automation market, especially packaging, label slitting, and motion-based robot dispensing, Advantech offers the WebOP-2000 series which are designed with ARM9-based RISC CPU with 70~200MHz and 4~16MB flash memory size for application software. The WebOP-2000 series also support a variety of LCD size from 3.5″ to 12.1″ for different applications involving the use of PLCs, motion/thermal controllers, inverters and sensors. WebOP Designer 2.0 is a software development kit which helps create application solutions for labor-saving, improved efficiency of manufacturing and easy control of every machine in the factory. The WebOP-2000 series is bundled with WebOP Designer 2.0 offering an outstanding price performance ratio for various markets such as conventional operator panels, HMI Low mini SCADA systems, and HMI communication gateways.
Please click the link below to open the PDF datasheet
View Datasheet - Various LCD sizes (3.5″, 5.7″, 7″, 8″, 10.4″, 12.1″)
- Supports ARM9-based CPUs with 70~200MHz and 4~16MB flash memory
- Supports RTC, battery backup RAM, and Ethernet-based operator panels
- Supports runtime data downloads through Serial, Ethernet, USB
- Supports adjustable brightness controls via touch panel
- Reliable firmware for 24/7 operation
- Supports Windows XP/ Vista-based WebOP Designer 2.0 development tool
- Easy to switch one application to different LCD sizes in seconds
- Supports vertical and horizontal application screen rotation
- Supports over 250 PLC industrial communication protocols
- Communicates with up to four types of devices
- Panel mounting for machinery
- General
- Certifications: CE, BSMI, CCC, UL, FCC Class A
- Dimensions (WxHxD): 130 x 106.2 x 45 mm (5.11″ x 4.18″ x 1.77″)
- Cut-out Dimensions: 118.5 x 92.5 mm (4.66″ x 3.64″)
- Front Panel Thickness: 6mm
- Operating System: HMI RTOS, WebOP Designer
- Power Supply Voltage: 24VDC ±10%
- Power Consumption: 10W
- Enclosure Housing: Plastic
- Mounting: Panel
- Weight (Net): 0.27 kg (0.59 lbs)
- CPU: RISC 32bits, 70MHz
- Battery Backup Memory: 128KB
- Flash Memory: 4MB
- Power-On LED: Yes
- Communication LED: No
- Front USB Access: No

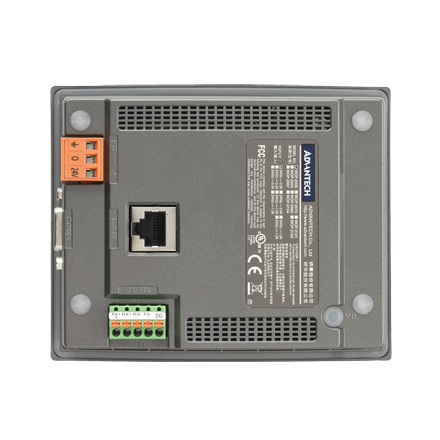

- COM1: RS-232/422/485 (DB9 Female)
- COM2: RS-422/485 (5-Pin Plug Connector)
- COM3: None
- Ethernet (RJ45): 10/100-BaseT (for N1AE model)
- I/Os: USB Client No
- Display Type: QVGA TFT LCD
- Display Size: 3.5″
- Max. Resolution: 320 x 240
- Max. Colors: 265 colors
- Luminance (cd/m2): 350
- Backlight Life: LED, 20,000 hrs
- Dimming: Adjustable by touch panel
- Touchscreen: 4 wire analog resistive
- Operating Temperature: 0 ~ 50°C (32 ~ 122°F)
- Storage Temperature: -20 ~ 60°C (-4 ~ 140°F)
- Humidity: 10 ~ 95% RH @ 40°C, non-condensing
- Ingress Protection: Front panel: IP65
- Vibration Protection: Operating, radom vibration 1 Grms (5 ~ 500 Hz)
System Hardware
Communication Interface
USB Host No
Micro-SD Slot No
LCD Display and Touchscreen
Environment
