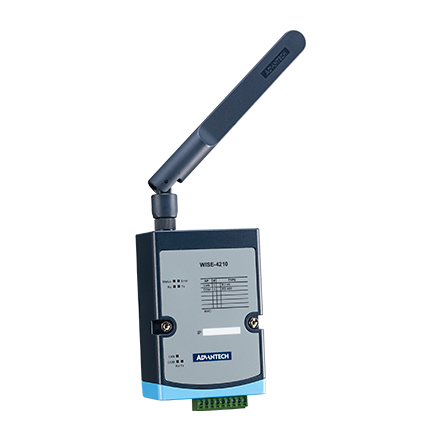

WISE-4210-AP LPWAN Wireless to Ethernet AP
£183.00 excl. vat
WISE-4210 wireless sensor node and AP series utilize proprietary LPWAN (Low-Power Wide-Area Network) wireless communication technology. Comparing with traditional 2.4G Wi-Fi, Sub-1GHz LPWAN can provide better connection and eliminate network interference. A WISE-4210-AP can organize a LPWAN network with 64 WISE-4210-S200 series nodes paired by star topology. Moreover, WISE-4210-AP supports MQTT and RESTful API IoT protocol for cloud integration as well as pre-integrating Azure IoT Hub for automatically pushing data to the cloud without requiring any gateway.
Please click the link below to open the PDF datasheet
View Datasheet -
- Proprietary LPWAN using sub-1GHz wireless frequency
- Longer communication range than 2.4GHz
- Better penetration through concrete and steel than 2.4GHz
- Less interference than 2.4GHz spectrum
- Support up to 64 sensor node clients
- MQTT and RESTful API IoT Protocol Support
- Azure IoT Hub Support
WISE-4210
-
- Frequency Band: AS923: 923MHz (920.60~924.60), BW: 400kHz
EU868: 868MHz (865.00~869.00), BW: 400kHz
UN433: 433MHz (433.05~434.55), BW: 300kHz
-
- Antenna Gain: 902~928MHz:1.33 dBi
863~870MHz:2.19 dBi
-
- Data Rate: 625bps, 50kbps
- Outdoor Range: 625bps: 5 km with line of sight
50kbps: 2 km with line of sight
-
- Topology: Star
- Network Capacity: 64 clients
General
-
- Power Input: AP: 10 ~ 50 VDC
Sensor Node: 3 x AA, 3.6V Lithium Battery or 10 ~ 50 VDC
-
- Battery Life: 625bps: 5 years with 10 minute update rate @ 25°C
50kbps: 5 years with 1 minute update rate @ 25°C
-
- Configuration Interface: AP: LAN port
Sensor Node: Micro-B USB
-
- LED Indicator: Status, Error, Tx, Rx, Battery/Signal Level
- Mounting: DIN 35 rail, wall, pole and stack
- Dimension (W x H x D): 70 x 102 x 38 mm
- Certification: CE, FCC, IC, NCC, TELEC
Environment
-
- Operating Temperature: -25 ~ 70°C
- Operating Humidity: 5 ~ 95% RH
- Storage Temperature: -40 ~ 85°C
- Storage Humidity: 0 ~ 95% RH
WISE-4210-AP (Access Point)
-
- Data Rate: 625 bps, 2.5k bps, 5k bps, 50k bps,
- Ethernet: RJ-45 (for configuration and data query)
- RS-485: Data+, Data- (for query node data)
- Messaging Protocol: Modbus/TCP, Modbus/RTU, REST, MQTT
- Application Protocol: HTTP, HTTPS, SNTP, DHCP
- Transport Protocol: TCP, UDP
- Supports RESTful Web API in JSON format
- Supports Web Server in HTML5
