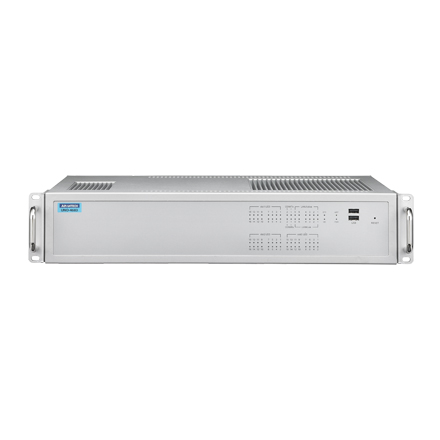

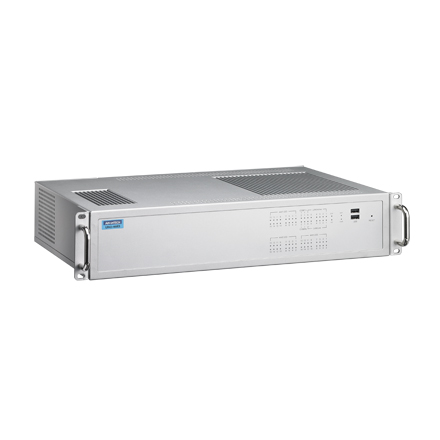

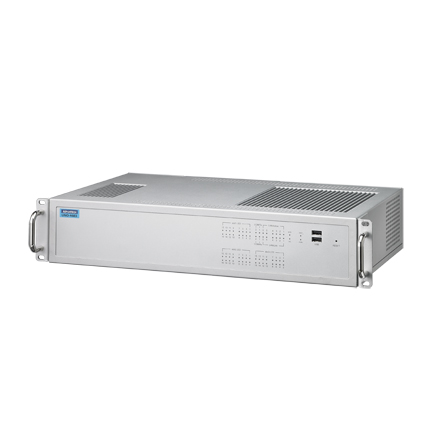

UNO-4683 Intel® Atom™ D510/ Core™ i7 Power & Energy Automation Computers with 6 x LAN, 2 x COM and 3 x Expansion Slots
Call for Price
UNO-4673A and UNO-4683 are compliant with the hardware requirements of IEC 61850-3, which defines the international standards of network and system communications in power substations. Featuring fanless designs with built-in isolated PSU and 3 expansion slots for I/O plug-in cards, the UNO-4673A and UNO-4683 are suitable for harsh environments. The rear I/O connection and LEDs on front panel for all ports and modes highly simplify monitoring for operation and maintenance.
Please click the link below to open the PDF datasheet
View Datasheet - IEC 61850-3 and IEEE 1613 compliant for substation automation applications
- Onboard Intel Atom 1.66 GHz processor
- 2 x RS-232/422/485 isolated serial ports with automatic flow control and 128KB FIFO
- 2 x 10/100/1000 Base-T (supports teaming function) and 4 x 10/100 Base-T
- Supports 1 x internal CF card and 1 x 2.5″ SATA HDD
- x USB 2.0 (1 x internal) and 3 x Domain I/O expansions

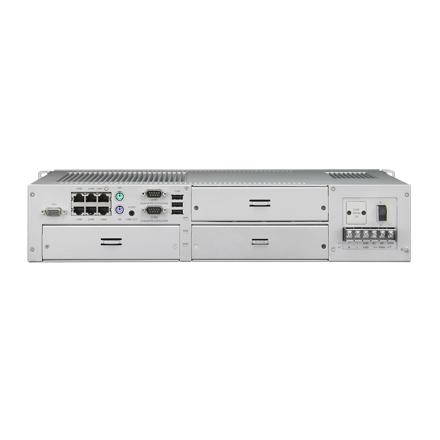

- Rear wiring, rich system & I/O LED status indicators
- Windows® CE 6.0, Windows XP Embedded SP2, and Linux ready solution
- Fanless design with no internal cabling
- Isolation power design with wide AC / DC input range
- Isolation between chassis and power ground
- One internal USB for dongle and flash drive
- Redundant power supplier for system power backup
- General
- Certification: IEC 61850-3, IEEE 1613, CE, FCC Class A, UL, CCC
- Dimensions (W x D x H): 2U (440 x 280 x 88) mm (17.3″ x 11″ x 3.4″)
- Enclosure: SECC
- Mounting: 2U Rackmount
- Power Consumption: 45W (Typical)
- Power Requirements: AC : 100 ~ 240 VAC (47 ~ 63 Hz)
- Weight: 6.0 kg
- OS Support: WES7, Windows XP Embedded, Windows /XP,
- System Design: Fanless
- Remote Management: Built-in Advantech DiagAnywhere agent on Windows
- CPU: Intel Dual Core Atom D510 1.66 GHz / Core i7 2.0 GHz
- Memory: 2G DDR2 SDRAM/4G DDR3 SDRAM built-in
- Indicators: LEDs for Power, IDE, Alarm for battery backup SRAM,
- Keyboard/Mouse: 2 x PS/2 connector for Keyboard & Mouse
- Storage:
- Display: 1 x DVI-I (UNO-4683)
- Watchdog Timer: Programmable 7-tier event handler, from 1 to 255
- Battery Backup SRAM: 1 MB
- Relay:
- Serial Ports: 2 x DB-9
- Serial Port Speed: RS-232: 50 ~ 115.2 kbps
- LAN: 2 x 10/100/1000 Base-T RJ-45 ports,teaming function
- Audio: Line-out
- USB Ports: 6 x USB, UHCI, Rev. 2.0 compliant
- Expansion: 3 x Domain I/O expansions (Only slot 1 supports PCIe
- Storage Humidity: 5 ~ 95% RH (non-condensing)
- Operating Temperature: IEC 60068-2-2 with 100% CPU/ I/O loading, 48 hrs
- Operating Humidity: 5 ~ 95% RH (non-condensing)
- Shock Protection: IEC 60068-2-27 CompactFlash®: 50 G half sine, 11 ms
- Vibration Protection: IEC 60068-2-64 (Random 1 Oct./min, 1hr/axis.)
fits into standard 19 inch rack
DC : 106 ~ 250 VDC
With isolation protection, AT
Windows CE 6.0, Linux, QNX, Win10, Win7, Windows
Server 2008R2/ 2012/ 2012R2
CE/XPe
System Hardware
Diagnosis (programmable), LAN (Active, Status) and
Serial (Tx, Rx)
CF 1 x internal type I/II CompactFlash® slot
HDD 1 x build-in 2.5″ SATA HDD bracket
*RAID capable with 2nd HDD kit
seconds for each tier
Relay output: Form C
Contact: 5A@250VAC5A@30VDC
I/O Interface
Automatic RS-485 data flow control
2000 VDC EFT protection & 2000 VDC isolation
RS-422/485: 50 ~ 921.6 kbps (Max.)
supported
4 x 10/100Base-T RJ-45 ports
2 x Front, 3 x Rear and 1 x Internal ports
resource)
Environment
-20 ~ 70°C
HDD: 20 G half sine, 11 ms
CompactFlash®: 2 Grms @ 5 ~ 500 Hz,
HDD: 1 Grms @ 5 ~ 500 Hz
