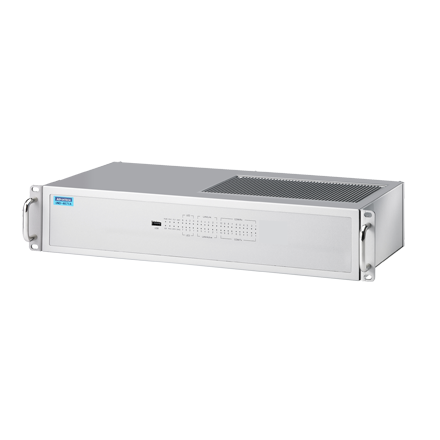

UNO-4671A Intel® Atom™ D510/D525 Power & Energy Automation Computers with 6 x LAN, 10 x COM, and 1 x PCI-104
Call for Price
UNO-4671A is compliant with Electricity Certificate IV level (especially for China) and IEC 61850-3 certification, which defines the international standards of network and system communications in power substations. Featuring a fanless design with low power consumption and high performance Intel Atom D510/D525 processor, the UNO-4671A comes with 10 isolated serial ports, 6 x LAN, 4 x USB (Internal) and 1 x PCI-104 extension. With rich OS and driver support, such as WES 2009, Windows XP, Windows CE 6.0, WES7 and Linux, users can integrate applications easily with a platform that can provide versatile functions to fulfill diverse requirements.
Please click the link below to open the PDF datasheet
View Datasheet -
- IEC 61850-3 and IEEE 1613 compliant for Power & Energy automation applications
- China Electricity Certificate IV level
- Onboard Intel Atom D525 1.8 GHz processor
- Supports wide range and dual power input
- 2 x RS-232 isolated ports, 4 x RS-422/485 isolated ports and 4 x RS-485
isolated ports
-
- 6 x 10/100Base-T RJ-45 connector/2 x 10/100/1000Base-T and 4 x 10/100
Base-T RJ-45 connector
-
- Supports 1 x internal CF card and 1 x 2.5″ SATA HDD
- Fanless design
- WES 2009, Windows XP, Windows CE 6.0, WES7 and Linux ready solution
General
-
- Certification: CE, FCC class A, CCC, Electricity IV level for China
(Compatible IEC 61850-3, IEEE 1613)
-
- Dimensions (W x D x H): 2U (440 x 220 x 88 mm/17.3″ x 8.6″ x 3.4″)
fits into standard 19 inch rack
-
- Enclosure: SECC & Aluminum
- Mounting: 2U Rackmount
- Power Consumption: 30 W @ 24 V (Typical)
- Power Requirements: Supports Redundant power input
Power 1: 100 ~ 240 VAC or 100 ~ 240 VDC
Power 2: 100 ~ 240 VAC or 100 ~ 240 VDC
-
- Weight: < 5.5 kg
- System Design: Fanless design
- OS Support: WES 2009, Windows XP, Windows CE 6.0, WES7 and
Linux
-
- Remote Management: Built-in Advantech DiagAnywhere agent on Windows
CE/XPe/7
System Hardware
-
- CPU: Intel Atom D525 1.8 GHz
- Memory: 2GB DDR3 SDRAM
- Indicators: LEDs for Power1&2, IDE, LAN (Active,Link) and Serial
(Tx, Rx)
-
- Storage: 1 x internal typeI/II CompactFlash® slot,
1 x Built-in 2.5″ SATA HDD bracket
-
- Display: VGA , 1920 x 1080
- Reset Button: Yes
- WatchDog Timer: Programmable 256 levels time interval, from 1 to 255
seconds for each tier
I/O Interface
-
- Serial Ports: 10 ports, 2 x RS-232, 4 x RS-422/485, 4 x RS-485
(Automatic RS-485 data flow control)
-
- Communication Speed: RS-232: 50 ~ 115.2 kps,
RS-422/485: 50 ~ 921600 bps
-
- LAN: 2x 10/100/1000 Base-T RJ-45 ports and
4 x 10/100 Base-T RJ-45 ports
-
- USB Ports: 4 x USB (include 1 x internal USB), UHCI, Rev. 2.0
compliant
-
- Expansion: 1 x PCI-104
Environment
-
- Storage Humidity: 95% @ 40°C (non-condensing)
- Operating Temperature: IEC 60068-2-2 with 100% CPU/ I/O loading, 48 hrs -20
~ 60°C (-4 ~ 140°F)
-
- Operating Humidity: 20 ~ 95% (non-condensing)
- Shock Protection: IEC 68 2-27 CompactFlash®: 30 G half sine, 11 ms
HDD: 20 G half sine, 11 ms
-
- Vibration Protection: IEC 68 2-64 (Random 1 Oct./min, 1hr/axis.)
CompactFlash: 2 Grms @ 5 ~ 500 Hz
