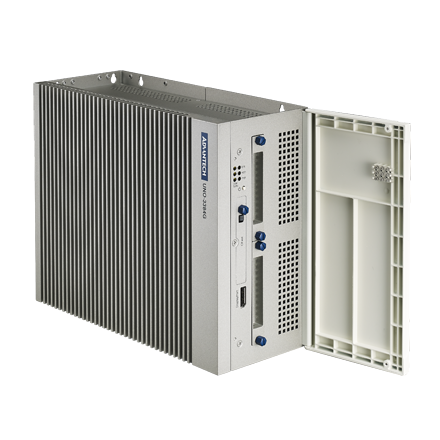

UNO-3384G Intel® Core™ i7/Celeron Control Cabinet PC w/ 2 x GbE, 2 x mPCIe, HDMI/DP
Call for Price
Advantech’s UNO-3300 series offer an open and universal automation solution. The newest UNO-3300 series of the Control Cabinet PC have attractive and flexible extension capabilities such as 2 x USB 2.0 ports and 2 x USB 3.0 ports, 1 x HDMI, 1 x DP, 1 x COM ports, 2 x LANS, 2 x mPCIe and 2 x PCI/PCIe. It’s a reliable industrial control machine certified by industrial automation standard IEC-61010.
Please click the link below to open the PDF datasheet
View Datasheet - 4th Generation Intel® Core™ i7/Celeron Processors with 8GB/4GB DDR3L Memory
- 2 x GbE, 2 x USB 2.0, 2 x USB 3.0, 1 x RS-232/RS-422/485, 1 x HDMI, 1 x DP, 1 x Cfast, 2 x PCI/PCIe, 2 x mPCIe (2 x full)
- Hot-Swappable HDD/SSD support for RAID 0/1
- Protection Technology of optional UPS is compatible with UNO-3300 series which enhances the quality of input power and secure the data safety
- Supports Fieldbus Protocol by iDoor Technology 3G/GPS/GPRS/Wi-Fi Communication by iDoor Technology
- Supports MRAM by iDoor Technology
- LAN Redundancy (Teaming)
- General
- Certification: CE, FCC, UL
- Dimensions (W x D x H): UNO-3384G: 103.2 x 254 x 207 mm (4.06″ x 10″ x 8.15″)
- Form Factor: Regular Size
- Enclosure: Aluminum Housing
- Mounting: Book mounting
- Weight (Net): UNO-3384G: 3.9kg
- Power Requirements: 24 VDC ± 20%
- Power Consumption: 75W (Max, UNO-3384)
- OS Support: WIN7/8, WES7, WES10, Advantech Linux
- BIOS: AMI UEFI 128Mbit Flash BIOS
- Watchdog Timer: Programmable 255 levels timer interval, from 1 to 255 sec
- Processor: Intel® Core™ i7-4650U 1.7GHz Haswell, 4MB L2
- System Chip: Integrated Intel 8 Series Chipset
- Memory: Built-in 4GB/8GB DDR3L 1333 MHz
- Graphics Engine: Intel® HD graphics
- Ethernet: Intel® i210-ITGbE
- LED Indicators: LEDs for Power, Battery, COM (Tx/Rx) HDD and reserved x2
- Storage: 1 x CFast slot
- Expansion: UNO-3384G: 2 Full-size mPCIe, 1x PCIex4, 1x PCI
- Serial Ports: 1 x RS-232/422/485, DB9, auto flow control,
- LAN Ports: 2 x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000Base-T
- USB Ports: 4 x USB Ports (2 x USB 2.0, 2 x USB 3.0 compliant )
- Displays: 1 x HDMI, supports 1920 x 1200 @ 60Hz 24bpp
- Power Connector: 1 x 3 Pin, Terminal Block
- Operating Temperature: 0 ~ 55°C(32 ~ 131°F) @ 5 ~ 85% RH with 0.7m/s airflow
- Storage Temperature: – 40 ~ 85°C ( -40 ~ 185°F)
- Relative Humidity: 10 ~ 95% RH @ 40°C, non-condensing
- Shock Protection: Operating, IEC 60068-2-27, 20G, half sine, 11ms
- Vibration Protection: Operating, IEC 60068-2-64, 2Grms, random, 5 ~ 500Hz,
System Hardware
Intel® Celeron® 2980U 1.6GHz, 2MB L2
Two built-in 2.5″ SATA HDD brackets with support for RAID
0/1. (Compatible with 9.5mm height HDD)
(total combined power consumption on the PCI/PCIe slots
should be less than 20W)
I/O Interfaces
50~115.2kbps
Fast Ethernet
1 x DP, supports 3200 x 2000 @ 60Hz 24bpp
Environment
(Industry SSD)
1hr/axis (mSATA)
