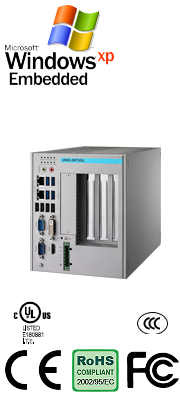

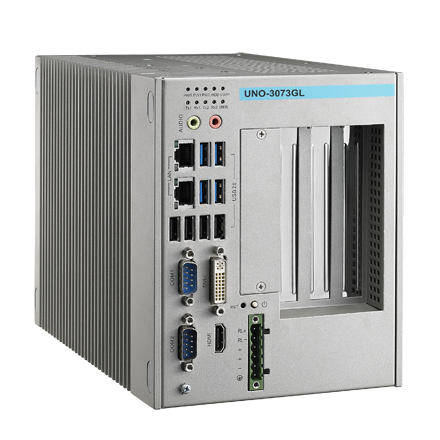

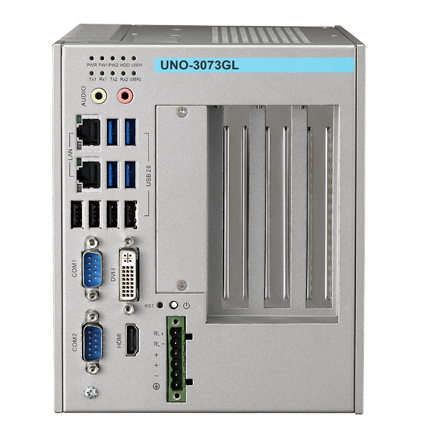

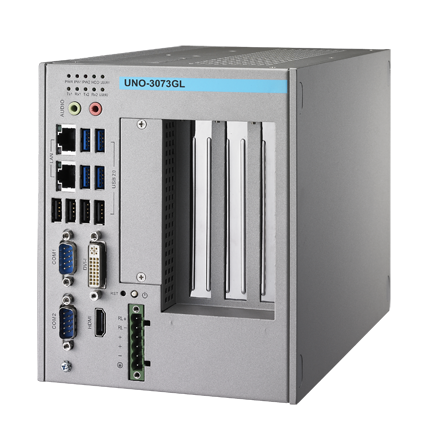

UNO-3073GL Intel Core i7/Celeron 800 series Automation Computers with 3/5 PCI(e) expansion slots, 2 Mini PCIe slots and 2 CFast sockets
Call for Price
The UNO-3083G/3085G/3073G/3075G/3073GL are configured with high-performance Intel® Core i7/Celeron 800 series processors and QM77/ QM67/ HM65 PCH, which supports 2 displays, 8 USB ports, 2 Mini PCIe sockets, 2 CFast Sockets and up to 5 expansion slots. They also feature two power inputs for redundancy and relay function for alarm handling, furthermore, two friendly front accessible HDD/ SSD bays to support RAID 0/1. Two Gigabit LANs support teaming function with fault tolerance, link aggregation and load balance features. The built-in intelligent BIOS to diagnose system status immediately via relay function or LED indication.
Please click the link below to open the PDF datasheet
View Datasheet - Onboard Intel Core i7-3555LE/i7-2655LE/Celeron 847E/807UE, 2.2GHz/1.1GHz/1.0GHz
- 2 x RS-232/422/485 ports with automatic flow control and 2 x RS-232 pin head reserved
- 2 x 10/100/1000Base-T Ethernet
- DVI-I, HDMI support 2 x independent displays
- Audio with Mic in, Line out
- 9 x USB ports (1 x internal USB for dongle and flash drive)
- Windows® WES 2009, WES 7 ready solution
- Dual power input for power redundancy
- Onboard system diagnosis LED indicators
- Supports wake on LAN and boot from LAN function
- Isolation between chassis and power ground
- Front accessible dual HDD/SSD with onboard RAID 0/1 support
- General
- Certification: CE, UL, CCC, FCC, BSMI
- Dimensions (W x D x H): 3073GL: 148 x 238 x 177 mm (5.8″ x 9.3″ x 7.0″)
- Enclosure: Aluminium
- Mounting: Wallmount, Stand mount, Panel mount
- Power Consumption: UNO-3073GL: 25W (Typical), 115(Max)
- Power Requirements: 12V ±20%/ 24V ±20% (e.g +24 V @ 5 A)
- Weight: 3073G: 4.5kg
- OS Support: Windows XP, Windows7/8, WES7, WES-2009, Win 10 Ent. LTSB
- System Design: Fanless with no internal cabling (except COM1/COM2)
- CPU: UNO-3073GL: Intel Celeron 807UE 1.0GHz
- Memory: Built-in 4GB DDR3 1600 MHz (UNO-3083G/3085G/3073G/3075G can
- Indicators: LEDs for Power, Battery, LAN (Active, Status), Serial communication
- Storage:
- Display: 1 x DVI-I, 1 x HDMI (2 x independent displays)
- Ethernet: LAN A: Intel 82579LM
- Audio: 1 x Mic in, 1 x Line Out
- Watchdog Timer: Programmable 255 levels timer interval, from 1 to 255 sec
- Mini PCIe: Expansion 2 x Mini PCIe slots with 2 x SIM card slots
- PCI (e) Expansion: UNO-3073GL: 1 x PCIex1 slot and 2 x PCI slots
- PCI Slot Power: 12 V @ 3 A, -12 V @ 0.8 A, +5 V @ 6 A, +3.3 V @ 6 A (total combined
- Serial Ports: 2 x RS-232/422/485 with DB9 connectors, automatic
- LAN: 2 x 10/100/1000Base-T RJ-45 ports, wake on LAN in flash BIOS
- USB Ports: 9 x USB (one internal, and 4 x USB3.0 support on
- Humidity: 95% @ 40°C (non-condensing)
- Operating Temperature: – 10 ~ 60°C (14 ~ 140°F) @ 5 ~ 85% RH with 0.7m/s airflow (Industry
- Shock Protection: IEC 60068-2-27
- Vibration Protection: IEC 60068-2-64 (Random 1 Oct./min, 1hr/axis.)
System Hardware
support up to 16GB RAM by project)
(Tx, Rx) and User Defined
CF 2 x CFast slots
HDD Two built-in 2.5″ SATA HDD brackets with RAID 0/1 (except UNO-3073GL)
LAN B: Intel 82574L
power consumption on the PCI slots should be less than 40W)
I/O Interface
RS-485 auto flow control, 50~115.2kbps, 2 x RS-232 (optional)
UNO-3083G-D64E
Environment
SSD)
CompactFlash: 50 G @ wall mount, half sine, 11 ms
HDD: 20 G @ wall mount, half sine, 11 ms
CompactFlash: 2 Grms @ 5 ~ 500 Hz,
HDD: 0.5Grms@5~500Hz
