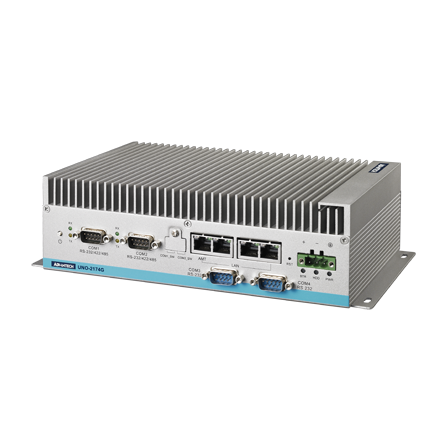

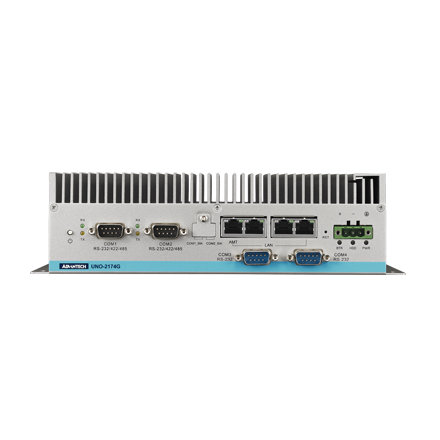

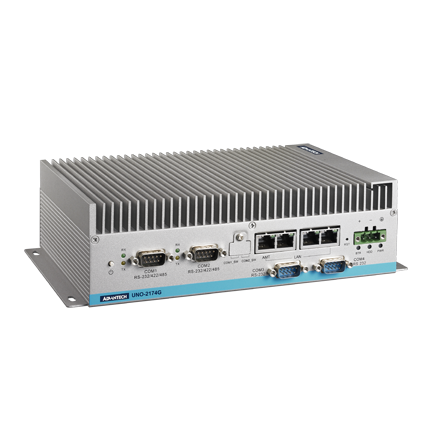

UNO-2174G Intel® Celeron® Automation Computers with 4 x GbE, 2 x Mini PCIe, DVI/DP/HDMI
Call for Price
The UNO-2184G & 2174G/GL are high-performance Intel 3rd generation Core i7-3555LE/Intel 2nd generation core i7-2655LE/847E/807UE grade controllers that support PCI-104 with daughterboard expansion, 3 x display, 6 x USB, and 2 x Mini PCIe socket. They also feature WLAN, 3G expansion and compatibility with Windows 7. The 4 x Gigabit LANs on the UNO-2184G support teaming function with fault tolerance, link aggregation, and load balance features. The UNO-2184G & 2174G/GL are high end computing platforms designed to support applications with tremendous data volume and 3D content.
Please click the link below to open the PDF datasheet
View Datasheet - Onboard Intel Celeron 847/807UE/Core i7-2655LE, 1.1 GHz/1.0 GHz/2.2 GHz processors
- 2 x RS-232 and 2 x RS-232/422/485 ports with automatic flow control
- 4 x 10/100/1000Base-T Ethernet
- DVI-I, DP, HDMI support 2 x independent displays
- Audio with Mic in, Line in, Line out
- 6 x USB 2.0 ports
- Supports 2 x PCI-104 plug-in card with daughterboard expansion
- Windows® WES 2009, WES 7 ready solution
- External accessible CFast slot
- Onboard system status LED indicators
- Supports wake on LAN and boot from LAN function
- Supports Power eSATA
- Isolation between chassis and power ground
- IP40 ingress protection
- General
- Certification: CE, UL, CCC, FCC, C-Tick, BSMI
- Dimensions (W x D x H): 255 x 152 x 69 mm (10″ x 6.0″ x 2.7″)
- Enclosure: Aluminum
- Mounting: DIN-rail, Wallmount, VESA
- Power Consumption: UNO-2174G: 30 W/ 20 W (Typical)
- Power Requirements: 9 ~ 36 VDC (e.g +24V @ 3A) (Min. 72W), AT/ATX
- Weight: 3.0 kg
- OS Support: Windows XP/7, WES7, WES-2009, Linux
- System Design: Fanless with no internal cabling (except COM3/COM4)
- Remote Management: Built-in Advantech DiagAnywhere agent on WES2009 /WES7
- CPU: UNO-2174G: Intel Celeron 847E 1.1GHz
- Memory: UNO-2174G: 4 GB DDR3 SDRAM built-in
- Indicators: LEDs for Power, battery, LAN (Active, Status) and Serial (Tx,Rx)
- Keyboard/Mouse: 1 x PS/2
- PC/104 Slot: PCI-104 slot, supports +5 & 3.3V power
- Storage: CF: 1 x CFast slot
- Display: 1 x DVI-I, 1 x HDMI, 1 x DP (2 x independent displays)
- Audio: Mic in, Line in, Line out
- Watchdog Timer: Programmable 256 levels timer interval, from 1 to 255 sec
- Mini PCIe Expansion: 2 x Mini PCIe slots with 1 x SIM card
- Serial Ports: 2 x RS-232, 2 x RS-232/422/485 with DB9
- Serial Port Speed: RS-232: 50 ~ 115.2 kbps
- LAN: 4 x 10/100/1000Base-T RJ-45 ports
- USB Ports: 6 x USB (only UNO-2184G-D64E supports 2 x USB3.0)
- Humidity: 95% @ 40°C (non-condensing)
- Operating Temperature: UNO-2174: -10 ~ 60°C (14 ~ 140°F) @ 5 ~ 85% RH. (with air flow)
- Storage Temperature: -40 ~ 60°C (-40~140°F)
- Shock Protection: IEC 60068-2-27
- Vibration Protection: IEC 60068-2-64 (Random 1 Oct./min, 1hr/axis.)
System Hardware
HDD: One built-in 2.5″ SATA HDD bracket
(Optional 2 x HDD Bracket Kit)
I/O Interfaces
connectors; automatic RS-485 data flow control
RS-422/485: 50 ~ 115.2 kbps (Max.)
Supports AMT (UNO-2184G only), wake on LAN and
built-in boot ROM in flash BIOS
Environment
CompactFlash: 50 G @ wall mount, half sine, 11 ms
HDD: 20 G @ wall mount, half sine, 11 ms
CompactFlash: 2 Grms @ 5 ~ 500 Hz,
HDD: 1 Grms @ 5 ~ 500 Hz
