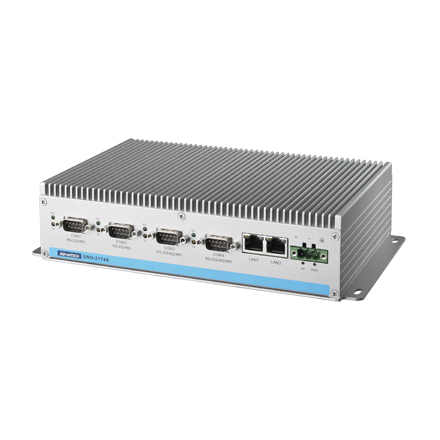

UNO-2174A Intel® Atom™ N450/ D510 Automation Computers with 6 x USB, 8 x COM, 2 x Mini PCIe
Call for Price
The UNO-2174A and UNO-2178A are Embedded Automation Computers equipped with Intel Atom N450/D510 CPUs, Gigabit Ethernet ports, rich I/O, and 2 x Mini PCIe socket. They also feature WLAN, 3G expansion and compatibility with Windows 7. Both products have Energy Star certification, IP40 anti-dust ingress protection and wide operating temperatures (-10 ~ 70°C), providing high performance and high versatility with low power consumption. The UNO-2174A and UNO-2178A are economic new computing platforms for manufacturing executing systems, facility automation, and industrial thin client applications. With an additional daughterboard, the UNO-2174A and UNO-2178A support 1 x PC/104 and 1 x PCI-104 plug-in cards for further expansion.
Please click the link below to open the PDF datasheet
View Datasheet - Onboard Intel Atom N450/D510 processors
- 2 x 10/100/1000Base-T RJ-45 ports, 6 x USB 2.0 ports
- Windows® CE 6.0, WES 2009, WES 7 and Linux ready solution
- Onboard system status LED indicators
- Front-accessible CF slot
- Supports Boot from LAN function
- 2 x Mini PCIe slots with 1 x SIM slot support
- Fanless design with no internal cabling
- Isolation between chassis and power ground
- Supports wide operating temperatures from – 10 ~ 70°C
- IP40 ingress protection
- Windows 7 32 bit supported
- Supports plug-in cards (1 x PCI-104 and 1 x PC/104+) with additional daughterboard expansion
- Supports arbitrary baud rates
- Certification: Energy Star, CE, FCC Class A, UL, CCC,
- Dimensions (W x D x H): UNO-2174A-A23E: 255 x 152 x 50 mm (10″ x 6.0″ x 2.0″)
- Enclosure: Aluminum +SECC
- Mounting: DIN-rail, Wallmount, VESA
- Industrial Grounding: Isolation between chassis and power ground
- Power Consumption: UNO-2174A: 12 W (Typical)
- Power Requirements: 9 ~ 36 VDC (e.g +24 V @ 1.5 A) (Min. 36 W), ATX
- Power Suspend Mode: S3, S4
- Weight: 2.5 kg
- OS Support: Windows XP/7, WES7, WES-2009, CE 6.0, Advantech Linux, QNX
- System Design: Fanless design with no internal cabling
- Remote Management: Built-in Advantech DiagAnywhere agent on Windows CE,
- CPU:
- Memory: 2 GB DDR2 SDRAM built-in
- Indicators: LEDs for Power, CF, LAN (Active, Status), Serial (Tx, Rx)
- Keyboard/Mouse: 1 x PS/2
- Storage: CF: 1 x rear type I/II CompactFlash® slot
- Display: DB15 VGA connector, UNO-2174A supports
- Watchdog Timer: Programmable 256 levels timer interval, from 1 to 255 sec
- Expansion: 2 x Mini PCIe
- Printer Port: 1 x Printer port (UNO-2174A)
- Expansion Slot: PC/104+ and PCI-104 support (+5 & 3.3V power)
- Serial Ports: UNO-2174A: 2 x RS-232/485 (COM1-2),
- Serial Port Speed: 50-115.2 kbps (COM 1-6 in RS-232/485 mode)
- LAN: 2 x 10/100/1000Base-T RJ-45 ports (Built-in boot ROM in
- USB Ports: 6 x USB 2.0
- Audio: Line in, Line out, Mic in (5.1 channel HD audio)
- Humidity: 95% @ 40°C (non-condensing)
- Operating Temperature: IEC 60068-2-2 with 100% CPU/ I/O loading
- Ingress Protection: IP40
- Shock Protection: IEC 60068-2-27
- Vibration Protection: IEC 60068-2-64 (Random 1 Oct./min, 1hr/axis.)
- General
C-Tick Class A, BSMI
UNO-2174A-A33E: 255 x 152 x59mm(10″x6.0″x2.3″)
WES2009, WES7
System Hardware
UNO-2174A: Intel Atom N450 1.6 GHz /D510 1.66GHz
HDD: 1 x built-in 2.5″ SATA HDD/SSD bracket (Not available
when PCI-104 expansion is being used)
up to 1400 x 1050, UNO-2178A supports
up to 2048 x 1536
1 x SIM card slot
Daughterboard (Additional purchase required)
(HDD slot is not available when PCI-104 slot is being used)
2 x Mini PCIe card slots and 1 x SIM card slot
I/O Interface
2 x RS-232/422/485 w/ 128kB FIFO
(COM A-B)
50-115.2 kbps (COM A/B in RS-232 mode, 921.6kbps peak
performance)
50-921.6 kbps (COM A/B in RS-422/485 mode)
flash BIOS)
Environment
-10 ~ 70°C (14 ~ 158°F)
CompactFlash: 50 G @ wall mount, half sine, 11 ms
HDD: 20 G @ wall mount, half sine, 11 ms
CompactFlash: 2 Grms @ 5 ~ 500 Hz,
HDD: 1 Grms @ 5 ~ 500 Hz
