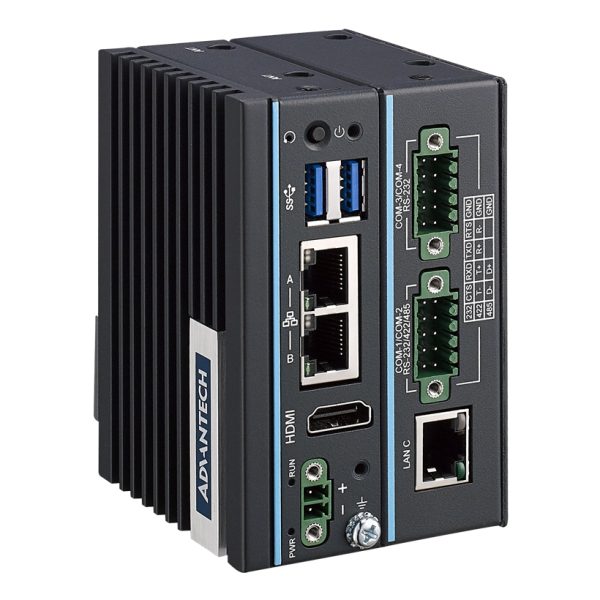

UNO-127 Pocket-Size DIN-Rail Edge IPC with Intel® Atom® x6413E

Call for Price

Advantech’s UNO-100 series of integrated DIN-rail controllers feature a modular design for flexible configuration according to specific usage requirements. The UNO-127 model is equipped with an Intel® Atom® x6413E processor, 4 GB or 8 GB DDR4 RAM, 64 GB eMMC storage, 2 x LAN, 2 x USB, and 1 x HDMI, as well as 1 x full-size mini PCIe for expansion. IEC 61010-1 certified for industrial use, UNO-127 can also be equipped with an optional second-stack extension kit that supports additional 4 x COM ports and 1 x M.2 B key for extending the system I/O and wireless connectivity capabilities.

Category: Embedded Automation Controllers

Please click the link below to open the PDF datasheet

Intel® Quad core x6413E processor with 4GB/8GB DDR4 onboard memory
Compact, robust, fanless and cable-free system with high stability
Optimized basic unit with 2 x GbE, 2 x USB, 1 x HDMI
On-board full-size mPCIe port for various expansion capability
Built-in TPM2.0 for hardware-based security
System ground isolation design
Certified with IEC 61010-2-201 for industrial application
Ubuntu Core 20 certified hardware
Support Windows 11 IoT Enterprise LTSC

See Datasheet
