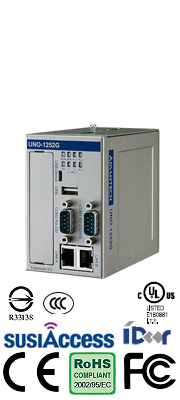

UNO-1252G Intel® Quark Micro Din-Rail Controller w/ 2 x LAN, 2 x mPCIe, 2 x COM, 8 x DI/O, 2 x USB, 1 x 1GB microSD card, 1 x SIM
Call for Price
The UNO-1252G is an Intel Quark DIN-rail controller for IoT gateway solutions. This controller features dual LAN ports and mPCIe card slots for economic gateway applications bridging cloud and brown areas. The general purpose input/output ports directly read the status of sensors and indicate required results. The UNO-1252G is also equipped with Advantech iDoor technology that employs iDoor modules to extend itself to become a wireless gateway. In addition, the UNO-1252G also features eight LED indicators for the status of Power, Battery, SD card, COM ports and three programmable indicators.
Please click the link below to open the PDF datasheet
View Datasheet -
- Intel® Quark X1001 400 MHz Processor with 256MB Memory
- 2 x LAN, 2 x mPCIe, 1 x RS-232, 1 x RS-232/485, 8 x DI/O, 2 x USB, 1 x 1GB microSD card, 1 x SIM
- COM ports and Digital I/O with Isolation Protection design for Sensing and Controlling
- Chassis Grounding Protection
- Compact with Fanless Design
- Din-rail mounting design
- Supports GPRS/3G/GPS/Wi-Fi Communication by iDoor Technology
- Supports Yocto Linux system
General
-
- Certification: CE, FCC, CCC, BSMI, UL
- Dimensions ( W x D x H ): 63 x 105 x 100 mm (2.48″ x 4.13″ x 3.94″)
- Form Factor: Micro Size
- Enclosure: Aluminum Housing
- Mounting: DIN-rail
- Weight (Net): 0.6 kg (1.33 lbs)
- Power Requirements: 10~36 VDC
- Power Consumption: 10W (Typical)
- OS Support: Yocto Linux
System Hardware
-
- BIOS: 8MB SPI Flash
- Processor: Intel Quark X1001 400 MHz
- System Chip: Integrated Intel SoC Chipset
- Memory: On-board 256/512 MB DDR3 800 MHz
- LED Indicators: LEDs for Power (PWR) , battery (BTR),
COM1~2 (Tx/Rx) and microSD (SD),
Programmable Indicators (PL1~3)
-
- Storage: Built-in 1GB micro SD card, up to 32GB
- Expansion: 2 x Full size mPCIe slot (1 x USB signal, 1 x PCIe
signal)
I/O Interfaces
-
- Isolated Serial Ports: 1 x RS-232, DB9, 50~115.2 kbps, supports console debug
1 x RS-232/485, DB9, 50~115.2 kbps
(Isolation Protection 1000 VDC)
-
- LAN Ports: 2 x RJ45, 10/100 Mbps
- USB Ports: 1 x USB 2.0 (type-A), 1 x USB Client (micro-B)
- Isolated DI/O: 4-ch digital input, 4-ch digital output (Isolation)
