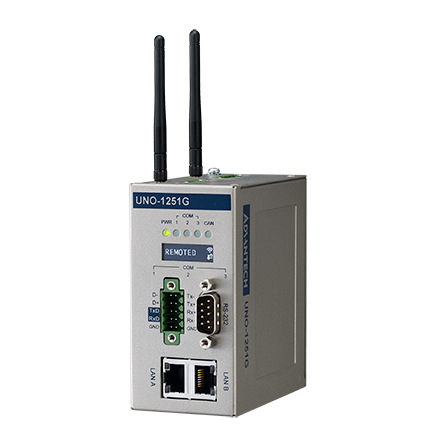

UNO-1251G TI Coretex A8 Micro DIN-Rail Gateway w/ 2 x LAN, 1 x USB, 1 x CANopen, 3 x COM, 2 x microSD, 1 x micro SIM
£326.00 excl. vat
The UNO-1251G is an Industrial IoT DIN-rail gateway. This gateway features dual LAN ports & expansible Wi-Fi/3G connectivity. There are also some user friendly design elements such as: a programmable OLED display to indicate the system status; and a front accessible microSD card/micro SIM slot. With WebAccess/HMI support, it is compatible with 450 types of PLC, controllers & I/O devices. User can easily access UNO-1251G through mobile devices by VNC. It is the ideal solution for automation control as a cloud enabled HMI platform.
Please click the link below to open the PDF datasheet
View Datasheet -
- RISC 32 bit TI ARM® Cortex™-A8 processor
- Programmable OLED display for status & error indication
- 1 x CAN, 3 x COM, 2 x LAN, 1 x USB ports
- Backup Memory FRAM in 128KB for retaining critical data
- Easily accessible Micro SD slot & Micro SIM slot
- Expansible with Wi-Fi/3G/4G connectivity
- Supports WEC7 & Linux operating systems
- Supports WebAccess/HMI software for compatibility with 450 types of PLC, controllers & I/O devices protocols
See Datasheet
