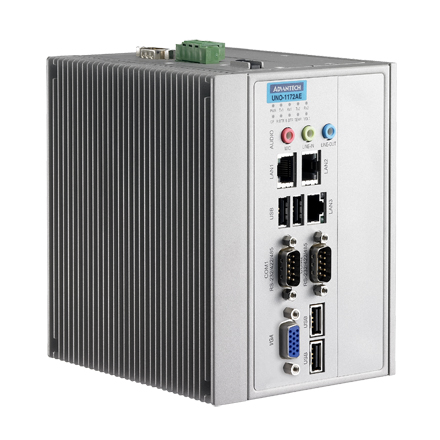

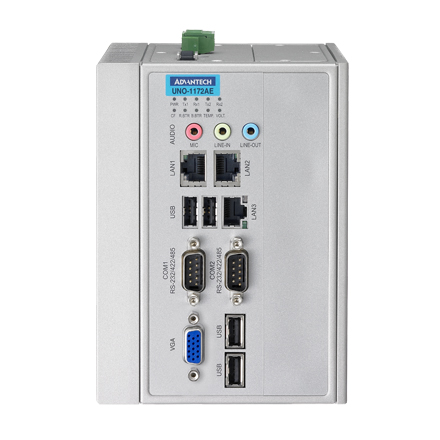

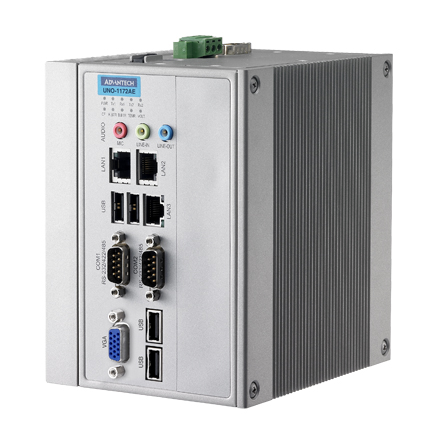

UNO-1172AE Intel® Atom ™ D510 DIN-rail PCs with 3 x LAN, 2 x COM, VGA, Mini PCIe, PC/104+
Call for Price
UNO-1172A/AE are Intel Atom DIN-rail PCs with innovated system diagnostic features. The system diagnosis and remote power control through digital input lines enable users to control and monitor system status remotely. They also provide alarm notices including over temperature, over voltage, battery power fail, power status on both system onboard LED and digital output. Three Gigabit Ethernet interfaces with teaming function support allow users to uplink two ports with data transmit fault tolerance and downlink one port to field devices. Their compact size, small foot print, front accessible I/Os allow convenient wiring and easy installation in field cabinets as well.
Please click the link below to open the PDF datasheet
View Datasheet - Onboard Intel Atom D510 1.66 GHz processor
- Onboard 1 MB battery-backup SRAM
- Onboard system & I/O LED indicators
- System diagnosis through LED and digital output, remote power control through digital input
- Two RS-232/422/485 ports with automatic flow control
- Three 10/100/1000 Base-T RJ-45 ports with teaming function support
- 4 x external USB
- PC/104+ expansion slots option
- 1 x Mini PCIe slot for WLAN card and Fieldbus card
- Windows® 7, Windows CE, XP Embedded and Linux support
- Supports Boot from LAN function
- Fanless design with no internal cabling
- Isolation between chassis and power ground
- General
- Certification CE, FCC Class A, UL, CCC
- Dimensions (W x H x D): UNO-1172AE: 111 x 152 x 139 mm (4.4″ x 6.0″ x 5.5″)
- Enclosure: Aluminum + SECC
- Mounting: DIN-rail, Wallmount
- Power Consumption: 24 W (Typical)
- Power Requirement:
- Weight:
- OS Support:
- System Design:
- Remote Management: Built-in Advantech DiagAnywhere agent on Windows CE / XPe
- CPU: Intel Atom D510 1.66 GHz
- Memory: 2 GB DDR2 SDRAM built-in
- Battery: Backup SRAM 1 MB
- Indicators:
- Keyboard/Mouse: 1 x PS/2
- Storage:
- PC/104 Slot: 2 x PC/104+ slot, supports 3.3 V & +5 V
- Mini PCI: 1 x Mini PCI (UNO-1172AE)
- Display: DB15 VGA connector, 1600 x 1200 @ 85 Hz
- Audio: 5.1 channel HD Audio, Mic in, Line in, Line out
- Watchdog Timer:
- Mini PCIe: 1 x Mini PCIe
- Serial Ports:
- Serial Port Speed RS-232: 50 ~ 115.2 kbps
- LAN:
- USB: 4 x USB, EHCI, Rev. 2.0 compliant
- Digital Input: 2-ch. wet/dry contact, 70 VDC over-voltage protection, 0 ~
- Digital Output: 6-ch DO- 200 mA max/channel sink current
- – Keep output status after system hot reset
- – 5 ~ 40 VDC output range and 10 kHz speed
- System Diagnoses: Remote monitoring: over system temperature, over voltage,
- Ingress Protection: IP40
- Operating Temperature: (IEC 60068-2-2, 100% CPU/ I/O loading)
- Storage Temperature: -20 ~ 80°C (-4 ~ 176°F)
- Operating Humidity: 20 ~ 95% (non-condensing)
- Storage Humidity: 0 ~ 95% (non-condensing)
- Shock Protection: IEC 60068-2-27
- Vibration Protection: IEC 60068-2-64 (Random 1 Oct./min, 1hr/axis.)
10 ~ 36 VDC (e.g +24 V @ 2 A) (Min. 48 W), AT/ATX
power mode by Jumper selection and BIOS AT simulation
(support system reboot automatically after power recovery)
UNO-1172AE: 2.0 kg
WES Windows XP Embedded, Windows XP & Windows 7,
Windows CE 5.0/6.0, Linux, QNX
Fanless design with no internal cabling
System Hardware
System:LEDs for Power, CF, LAN (Active, Status), Serial
(Tx, Rx), Diagnosis /Alarm: over system temperature, over
voltage, alarm for battery backup SRAM, alarm for RTC
battery,Programmable(while disable Serial Tx&Rx), Buzzer
for Diagnosis (programmable)
SSD: 1 x internal type I/II CompactFlash slot
HDD: one 2.5″ SATA HDD bracket
(Only for UNO-1172AE, one PC/104+ with HDD)
Programmable 7-tier event handler, from 1 to 255 seconds for each tier
I/O Interface
2 x RS-232/422/485 with DB9 connectors, automatic
RS-485 data flow control
2 x RS-232 (Optional, pin header)
RS-422/485: 50 ~ 115.2 kbps (Max)
3 x 10/100/1000Base-T RJ-45 ports (supports Wake on
LAN, built-in boot ROM)
50 VDC input range and Interrupt handling
battery power fail, power status
Remote control: Power On/Off, Reset
Environment
-10 ~ 65°C (14~ 149°F)
CompactFlash: 50 G @ wall mount, half sine, 11 ms
HDD: 20 G @ wall mount, half sine, 11 ms
CompactFlash: 2 Grms @ 5 ~ 500 Hz,
HDD: 1 Grms @ 5 ~ 500 Hz
