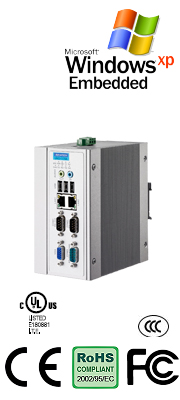

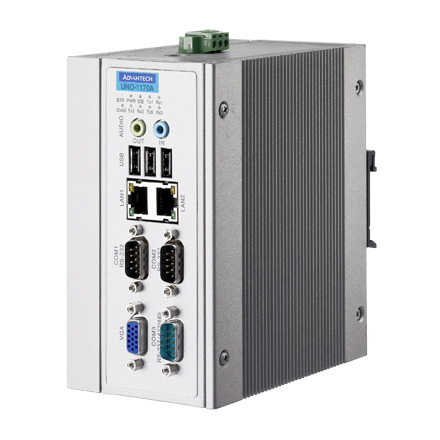

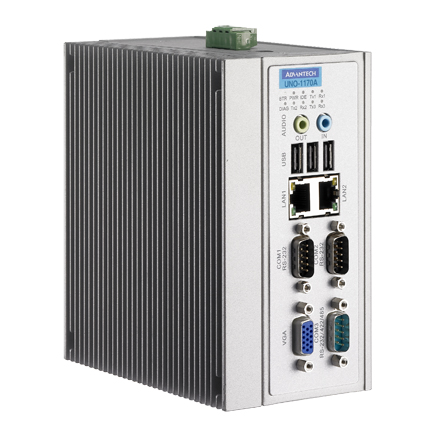

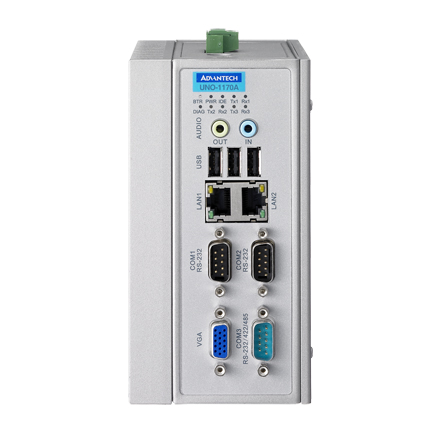

UNO-1170A Intel® Atom™ N270 DIN-rail PCs with 2 x LAN, 3 x COM, 4 x USB, PC/104+
Call for Price
UNO-1170A/AE are DIN-rail PCs that provide several serial communication ports and Ethernet interfaces. With their compact size, small footprint, and front accessibility, UNO-1170A/AE are convenient for wiring and easy to install in field cabinets. With rich OS and driver supports, such as Windows WES 2009, WinCE 6.0, and even embedded Linux, UNO-1170A/AE are application-ready platforms that provide versatile functionality.
Please click the link below to open the PDF datasheet
View Datasheet - Onboard Intel Atom N270 1.6GHz processor
- Onboard 512 KB battery-backup SRAM
- Onboard system & I/O LED indicators
- Two RS-232 and one RS-232/422/485 ports with automatic flow control
- Two 10/100 Base-T RJ-45 ports
- 3 x external USB and 1 x internal USB for dongle and flash drive
- PC/104+ expansion slots option
- DIN-rail design for easy installation in field cabinet
- Windows® CE 6.0, Windows WES 2009, and Linux ready solution
- Supports boot from LAN function
- Fanless design with no internal cabling
- Isolation between chassis and power ground
- General
- Certification: CE, FCC Class A, UL, CCC
- Dimensions (W x H x D): UNO-1170A: 85.5 x 152 x 139 mm (3.4″ x 6.0″ x 5.5″)
- Enclosure: Aluminum + SECC
- Mounting: DIN-rail, Wallmount
- Power Consumption: 24 W (Typical)
- Power Requirement: 10 ~ 36 VDC (e.g +24 V @ 2 A) (Min. 48 W), AT
- Weight: UNO-1170A: 1.6 kg
- OS Support: Windows WES 2009, Windows XP, Windows 7,
- System Design: Fanless with no internal cabling
- Remote Management: Built-in Advantech DiagAnywhere agent on Windows
- CPU: Intel Atom N270 1.6 GHz
- Memory: 1 GB DDR2 SDRAM Built-in
- Battery Backup SRAM: 512 KB
- Indicators: LEDs for Power, IDE, LAN (Active, Status), Serial
- Keyboard/Mouse: 1 x PS/2
- Storage: SSD: 1 x internal type I/II CompactFlash slot
- PC/104 Slot: 1 x PC/104+ slot, supports up to 2 x PC/104+ cards
- Mini PCI: 1 x Mini PCI (UNO-1170AE)
- Display: DB15 VGA connector, 1600 x 1200 @ 85 Hz
- Audio: Line in, Line out
- Watchdog Timer: Programmable 256 level timer interval, from 1 to 255 sec
- Serial Ports: 2 x RS-232, 1 x RS-232/422/485 with DB9 connectors,
- Serial Port Speed: RS-232: 50 ~ 115.2 kbps
- LAN: 2 x 10/100Base-T RJ-45 ports (Built-in boot ROM in
- USB: 4 x USB, EHCI, Rev. 2.0 compliant (1 is for USB dongle
- Operating Temperature: (IEC 60068-2-2, 100% CPU/ I/O loading)
- Storage Temperature: -20 ~ 80°C (-4 ~ 176°F)
- Ingress Protection: IP40
- Operating Humidity: 20 ~ 95% (non-condensing)
- Storage Humidity: 0 ~ 95% (non-condensing)
- Shock Protection: IEC 60068-2-27
- Vibration Protection: IEC 60068-2-64 (Random 1 Oct./min, 1hr/axis.)
Windows CE 5.0/6.0, Linux, QNX
CE / WES 2009
System Hardware
(Tx, Rx), Alarm for battery backup SRAM and diagnosis
(programmable)
Buzzer for Diagnosis (programmable)
HDD: one 2.5″ SATA HDD bracket
(3.3V & 5V)
(Only for UNO-1170AE, one PC/104+ left while using
HDD)
I/O Interface
automatic RS-485 data flow control
1 x pin header RS-232
RS-422/485: 50 ~ 921.6 kbps (Max)
flash BIOS)
inside chassis)
Environment
-10 ~ 60°C (14 ~ 140°F)
CompactFlash: 50 G @ wall mount, half sine, 11 ms
HDD: 20 G @ wall mount, half sine, 11 ms
(UNO-1170AE)
CompactFlash®: 2 Grms @ 5 ~ 500 Hz,
HDD: 1 Grms @ 5 ~ 500 Hz (UNO-1170AE)
