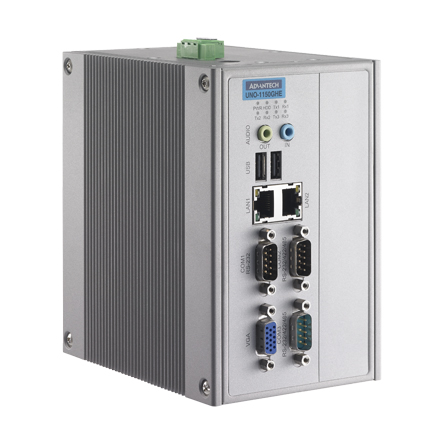

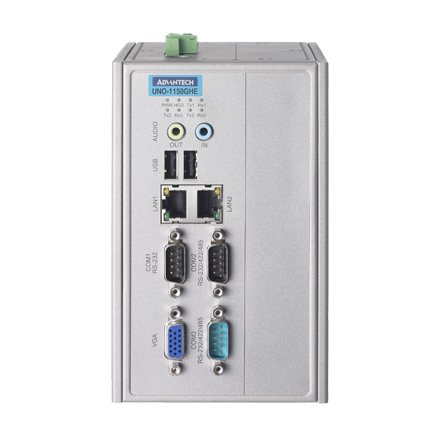

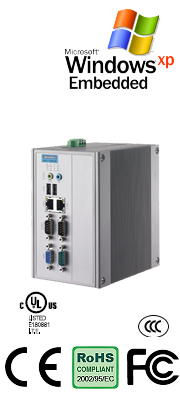

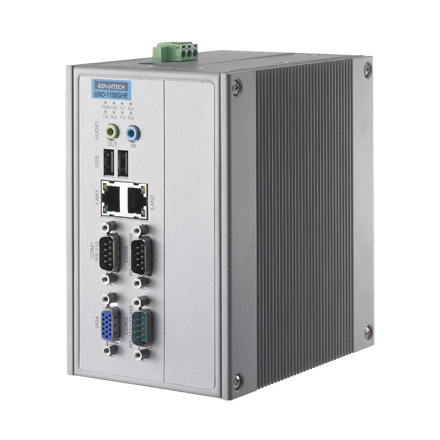

UNO-1150GHE Class I, Division 2 Certified AMD Geode™ LX DIN-rail PC with 2 x LAN, 3 x COM, PCI-104
Call for Price
In hazardous locations, devices are under potential danger from flammable gases, combustible dust, or ignitable fibers, creating the potential for fire and explosions. UNO-1150GH and UNO-1150GHE are designed to be safely operated in these locations and are UL listed for Hazardous Locations with Class I, Division 2, groups A, B, C, D & T3A certification. UNO-1150GH and UNO-1150GHE are DIN-rail mounted and provide several serial communication ports and Ethernet interfaces with a compact size to save space. They are also front accessible for easy installation in field cabinets.
Please click the link below to open the PDF datasheet
View Datasheet - UL listed for Hazardous Locations: Class I, Division 2
- Onboard AMD Geode LX800 (500 MHz) CPU
- One RS-232 and two RS-232/422/485 ports with automatic flow control.
- Two 10/100 Base-T RJ-45 ports
- Two USB, audio and internal CompactFlash®
- Compact size, small foot print, saves space and front accessible for easy wiring
- DIN-rail design for easy installation in field cabinet
- Wide operating temperature range
- Windows® CE 5.0/6.0, Windows XP Embedded, and Linux ready solution
- Fanless desing with no intemal cabling
- Isolation between chassis and power ground
- General
- Certification: CE, FCC Class A, UL, CCC
- Hazardous Locations: US: ANSI/ISA 12.12.01-2007 cUL: CSA 22.2 No. 213
- Dimensions (W x H x D): UNO-1150GH: 71 x 152 x 139 mm (2.8″ x 6″ x 5.5″)
- Enclosure: Aluminum + SECC
- Mounting: DIN-rail, Wallmount
- Power Consumption: 15 W (Typical)
- Power Requirement: 9 (Min.) ~ 36 (Max.) VDC (e.g +24 V @ 1 A) (Min. 24
- Weight:
- OS Support: WES Windows XP Embedded, Windows 2000 & XP,
- System Design: Fanless with no internal cabling
- Remote Management: Built-in Advantech DiagAnywhere agent on Windows
- CPU: AMD Geode LX 800 (500MHz)
- Memory: Onboard 256 MB DDR SDRAM
- Indicators: LEDs for Power, IDE, LAN (Active, Status) and Serial
- Keyboard/Mouse: 1 x PS/2
- Storage: SSD: 1 x internal type I/II CompactFlash® slot
- PC/104 Slot: 2x PCI-104 slot, supports 3.3 V & +5 V
- Mini PCI: 1x MiniPCI (UNO-1150GHE only)
- Display: DB15 VGA connector, supports up to 1024 x 768 @ 60 Hz
- Audio: Line in, Line out
- Watchdog Timer: Programmable 256 level timer interval, 1 to 255 sec
- Serial Ports: 2 x RS-232 (one pin header reserved),
- Serial Port Speed: RS-232 port: 50 ~ 115.2 kbps
- LAN: 2 x 10/100 Base-T RJ-45 ports
- USB: 2 x USB, OpenHCI, Rev. 1.1 compliant
- Printer Port: 1 x Printer Port pin head
- Ingress Protection: IP40
- Operating Temperature: (IEC 60068-2-2, 100% CPU/ I/O loading)
- Storage Temperature: -20 ~ 80°C (-4 ~ 176°F)
- Operating Humidity: 20 ~ 95% (non-condensing)
- Storage Humidity: 0 ~ 95% (non-condensing)
- Shock Protection: IEC 60068- 2-27
- Vibration Protection: IEC 60068- 2-64 (Random 1 Oct./min, 1hr/axis.)
M1987, Class I, Division 2, Groups A,B,C,D,
Hazardous Location, Temperature code: T3A, Ambient
Temperature Range: -10°C ≤ Tamb ≤ 60°C
UNO-1150GHE: 96.5 x 152 x 139 mm (3.8″ x 6″ x 5.5″)
W), AT
UNO-1150GHE: 2.0 kg
Windows CE 5.0/6.0, Linux QNX
CE / XPe
System Hardware
(Tx, Rx)
Buzzer for Diagnosis (programmable)
HDD: 2.5″ SATA HDD bracket (UNO-1150GHE)
(Only UNO-11150GHE, one PCI-104 while using HDD)
I/O Interface
2 x RS-232/422/485 with DB9 connectors, Automatic
RS-485 data flow control RS-232/422/485 ports
support hardware 128 byte FIFO
RS-232/422/485 port: RS-232, 300 ~ 115.2 kbps
RS-232/422/485 port: RS-422/485, 300 ~ 921.6 kbps
(Max)
*Note: This function is optional for project request
Environment
-10 ~ 60°C (14 ~ 140°F)
CompactFlash®: 50 G @ wall mount, half sine, 11 ms
HDD: 20 G @ wall mount, half sine, 11 ms
(Only for UNO-1150GHE)
CompactFlash®: 2 Grms @ 5 ~ 500 Hz
HDD: 1Grms@ 5 ~ 500 Hz (UNO-1150GHE)
