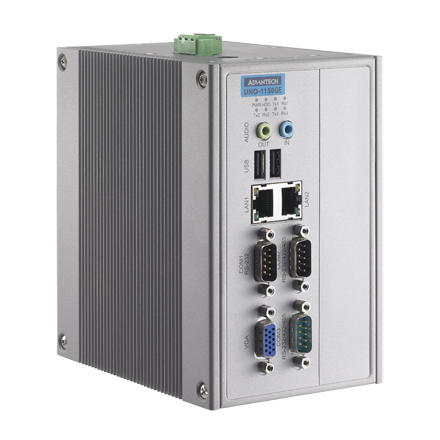

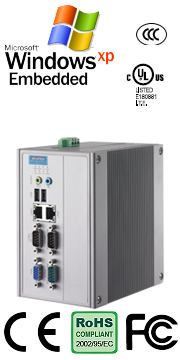

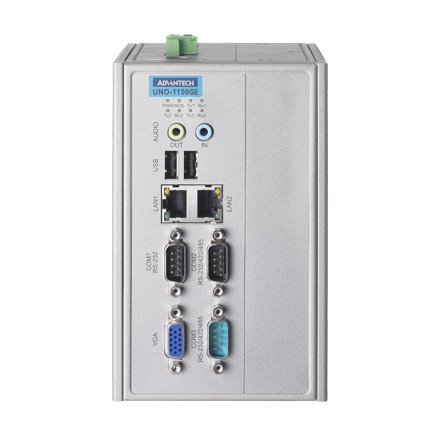

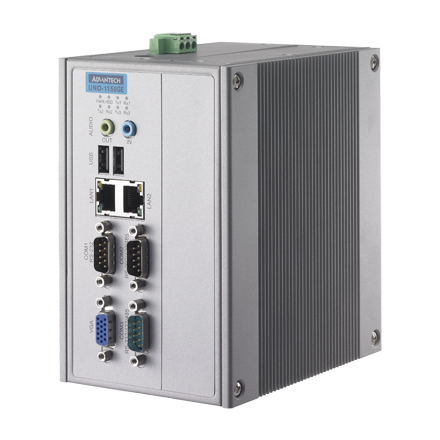

UNO-1150GE AMD Geode ™ LX800 DIN-rail PCs with 2 x LAN, 3 x COM, PCI-104
Call for Price
UNO-1150G/GE are DIN-rail mounted PCs that provide several serial communication ports and Ethernet interfaces. Their compact size, small footprint and front-accessibility allow easy installation in field cabinets and help to save spaces. With rich OS and driver supports, such as Windows XP Embedded, WinCE 6.0 and embedded Linux, users can integrate applications easily with a platform that can provide versatile functions to fulfill diverse requirements.
Please click the link below to open the PDF datasheet
View Datasheet - Onboard AMD Geode LX800 500 MHz processor
- Two RS-232 (one pin header reserved) and two RS-232/422/485 ports with automatic flow control
- Two 10/100 Base-T RJ-45 ports
- Two USB, audio and internal CompactFlash®
- Compact size, small foot print, saves space and front accessible for easy wiring
- DIN-rail design for easy installation in field cabinet
- Wide operating temperature range
- Windows® CE 6.0, Windows XP Embedded, and Linux ready solution
- Onboard system & I/O LED indicators
- Fanless desing with no intemal cabling
- Isolation between chassis and power ground
- General
- Certification: CE, FCC Class A, UL, CCC
- Dimensions (W x H x D): UNO-1150GE: 96.5 x 152 x 139 mm (3.8″ x 6.0″ x 5.5″)
- Enclosure: Aluminum + SECC
- Mounting: DIN-rail, Wallmount
- Power Consumption: 15 W (Typical)
- Power Requirement: 10 ~ 36 VDC (e.g +24 V @ 1 A) (Min. 24 W), AT
- Weight: UNO-1150GE: 2.0 kg
- OS Support: WES Windows XP Embedded, Windows 2000 & XP,
- System Design: Fanless with no internal cabling
- Remote Management: Built-in Advantech DiagAnywhere agent on Windows
- CPU: AMD Geode LX800 500 MHz
- Memory: Onboard 256 MB DDR SDRAM
- Indicators: LEDs for Power, IDE, LAN (Active, Status) and Serial
- Keyboard/Mouse: 1 x PS/2
- Storage: SSD: 1 x internal type I/II CompactFlash® slot
- PC/104 Slot: 2 x PCI-104 slots, supports 3.3 V & +5 V
- Mini PCI: 1 x Mini PCI (UNO-1150GE)
- Display: DB15 VGA connector, supports up to 1024 x 768 @ 60 Hz
- Audio: Line in, Line out
- Watchdog Timer: Programmable 256 level timer interval, from 1 to 255 sec
- Serial Ports: 2 x RS-232 (one pin header reserved),
- Serial Port Speed: RS-232 port: 50 ~ 115.2 kbps
- LAN: 2 x 10/100Base-T RJ-45 ports
- USB: 2 x USB, OpenHCI, Rev. 2.0 compliant
- Printer Port*: 1 x Printer Port pin header
- Ingress Protection IP40
- Operating Temperature (IEC 60068-2-2, 100% CPU/ I/O loading)
- Storage Temperature -20 ~ 80°C (-4 ~ 176°F)
- Operating Humidity 20 ~ 95% (non-condensing)
- Storage Humidity 0 ~ 95% (non-condensing)
- Shock Protection IEC 60068-2-27
- Vibration Protection IEC 60068-2-64 (Random 1 Oct./min, 1hr/axis.)
Windows CE 5.0/6.0, Linux
CE / XPe
System Hardware
(Tx, Rx)
Buzzer for Diagnosis (programmable)
HDD: 2.5″ SATA HDD bracket (UNO-1150GE)
(Only for UNO-1150GE, one PCI-104 left while using
HDD)
I/O Interface
2 x RS-232/422/485 with DB9 connectors,
automatic RS-485 data flow control
RS-232/422/485 ports support hardware 128 byte FIFO
RS-232/422/485 port: RS-232, 300 ~ 115.2 kbps
RS-232/422/485 port: RS-422/485, 300 ~ 921.6 kbps
(Max)
*Note: This function is optional for project requirement.
Environment
-10 ~ 60°C (14 ~ 140°F)
CompactFlash®: 50 G @ wall mount, half sine, 11 ms
HDD: 20 G @ wall mount, half sine, 11 ms
(UNO-1150GE)
CompactFlash®: 2 Grms @ 5 ~ 500 Hz
HDD: 1Grms@ 5 ~ 500 Hz (UNO-1150GE)
