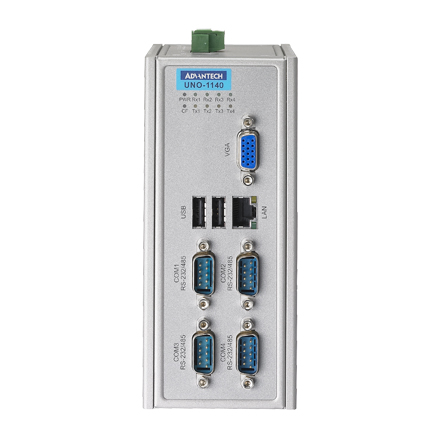

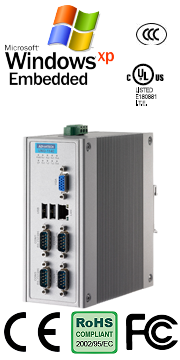

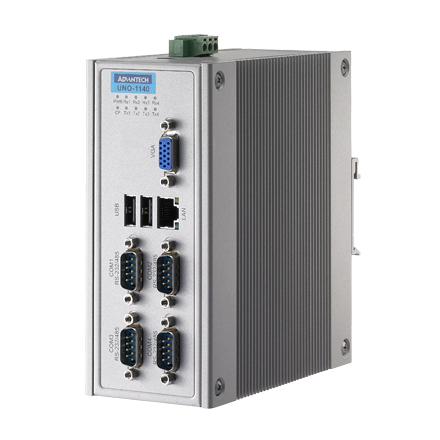

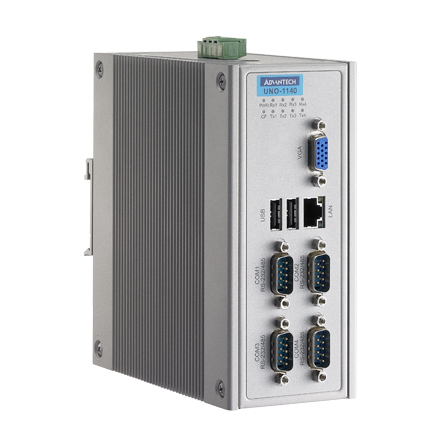

UNO-1140 486SX-grade SoC DIN-rail PCs with 1 x LAN, 4 x COM
Call for Price
The UNO-1140 is a DIN-rail mounted PC which provides several serial communication ports and Ethernet interfaces. With its compact size, small footprint and front accessible I/Os, UNO-1140 is convenient for wiring and DIN-rail installation in control cabinets. Its wide operating temperate range and industrial serial port design makes the UNO-1140 an excellent communication gateway even in critical environments. With OS and driver support on WinCE and Linux, users can integrate applications easily with application ready platforms that can provide versatile functions to fulfill diverse requirements.
Please click the link below to open the PDF datasheet
View Datasheet - Onboard Advantech EVA-X4150 SoC,486SX grade, 150 MHz processor
- Four RS-232/485 ports for UNO-1140
- Industrial-grade serial port design without data loss
- One 10/100 Base-T RJ-45 port
- Two USB 2.0 ports and one internal CompactFlash®
- Compact size, small footprint, saves space
- Front-accessible I/O and DIN-rail design for easy installation in control cabinet
- Wide operating temperature range up to 75°C
- Windows® CE 5.0, DOS, and Linux ready solution
- Onboard system & I/O LED indicators
- Fanless design with no intemal cabling
- Grounding isolation between chassis and system
- IP40 ingress protection
- General
- Certification: CE, FCC Class A, UL, CCC
- Dimensions (W x H x D): 71 x 152 x 139 mm (2.8″ x 6″ x 5.5″)
- Enclosure: Aluminum + SECC
- Mounting: DIN-rail, Wallmount
- Industrial Grounding: Isolation between chassis and power ground
- Power Consumption: 10 W (Typical)
- Power Requirement: 9 ~ 36 VDC (e.g +24 V @ 1 A) (Min. 24 W), AT
- Weight: 1.0 kg
- OS Support: DOS (for UNO-1140 only), Windows CE 5.0, Linux
- System Design: Fanless design with no internal cabling
- Remote Management: Built-in Advantech DiagAnywhere agent on Windows CE
- CPU: Advantech EVA-X4150 SoC,486SX grade, 150MHz
- Memory: Onboard 64 MB Industrial grade SDRAM
- Indicators: LEDs for Power, CF, LAN (Active, Status) and Serial (Tx,
- Keyboard/Mouse: 1 x PS/2
- Storage: CF: 1 x internal type I/II CompactFlash® slot
- Display: DB15 VGA connector, supports up to 1024 x 768 @ 60 Hz
- Watchdog Timer: Programmable 256 level timer interval, from 1 to 255 sec
- Ingress Protection: IP40
- Operating Temperature: IEC 60068-2-2 (with 100% CPU/ I/O loading)
- Operating Humidity: 20 ~ 95% (non-condensing)
- Shock Protection: IEC 60068-2-27
- Vibration Protection: IEC 60068-2-64 (Random 1 Oct./min, 1hr/axis.)
- Serial Ports: UNO-1140: 4 x RS-232/485 with DB9 connectors,
- Serial Port Speed:
- LAN: 1 x 10/100 Base-T RJ-45 port
- USB: 2 x USB, USB 2.0 compliant
System Hardware
Rx)
Environment
-20 ~ 75°C (-4 ~ 167°F)
CompactFlash®: 50 G @ wall mount, half sine, 11 ms
CompactFlash®: 5 Grms @ 5 ~ 500 Hz
I/O Interface
Automatic RS-485 data flow control
COM1~COM4: RS-232 : 50~115.2 kbps
RS-485 : 50~115.2 kbps
