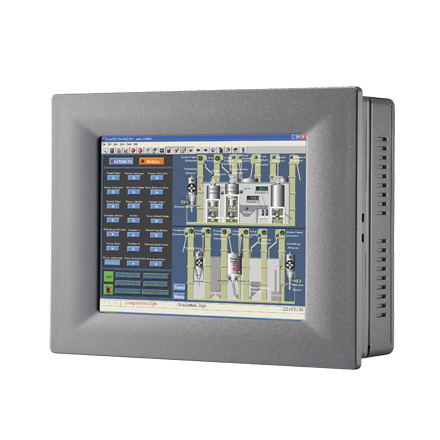

TPC-650H 5.7″ VGA TFT LED LCD Intel® Atom™ Thin Client Terminal
Call for Price
With a high quality TPC product line, TPC extends its Touch Panel Computer family with Intel® Atom™ platform for 5.7″, 12.1″,15″ and17″. TPC thin client is designed with Intel® Atom™ 1.6 GHz processor as its core. The Intel® Atom™ has low power consumption and 1.6 GHz operating frequency. This system is fanless, slim design for Web-based terminal solutions, so JavaScript is included in the Windows operating system. For Linux systems, we provide Mozilla Firefox.
Please click the link below to open the PDF datasheet
View Datasheet - Intel® Atom™ N270 1.6 GHz processor
- 5.7″ VGA/12.1″ SVGA/15″ XGA/17″ SXGA TFT LED LCD
- Fanless cooling system
- IP65 compliant front panel
- Supports Microsoft® Windows XP/XPe/CE
- Windows CE 5.0/6.0 with Java Script ready
- Supports Linux OS with Firefox and Java Script plugins
- Gigabit Ethernet supported
- Energy Star approved
- Supports external 2.5″ SATA HDD kit
- General
- BIOS: Award® 4Mbit
- Certification: BSMI, CCC, CE, FCC Class A, UL
- Cooling System: Fanless design
- Dimensions (W x H x D):
- Enclosure:
- Mounting: Desktop, Wall or Panel Mount
- OS Support:
- Power Consumption: 17 W
- Power Input: 18 ~ 28 VDC
- Watchdog Timer: 1 ~ 255 sec (system)
- Weight (Net): 1.43 kg (3.15 lb)
- CPU: Intel® Atom™ N270 1.6 GHz
- Chipset: Intel® 945GSE+ICH7M
- Memory:
- LAN: 10/100/1000Base-T x 2, (TPC-650H with One Giga LAN)
- Storage:
- I/O:
- Display Type: VGA TFT LED LCD
- Display Size: 5.7″
- Max. Resolution: 640 x 480
- Max. Colors: 262 K
- Luminance cd/m2:700
- Viewing Angle (H/V°): 160/140
- Backlight Life: 50,000 hrs
- Contrast Ratio: 800:1
- Lifespan: 10 million touches at single point
- Light Transmission: Above 75%
- Resolution: Linearity
- Type: 5-wire, analog resistive
- Humidity: 10 ~ 95% RH @ 40°C, non-condensing
- Ingress Protection: Front panel: IP65
- Operating Temperature: 0 ~ 45°C (32 ~ 113°F)
- Storage Temperature: -20 ~ 60°C (-4 ~ 140°F)
- Vibration Protection: 2 Grms (5 ~ 500 Hz)(Operating, random vibration)
650H: 195 x 148 x 58 mm (7.68″ x 5.83″ x 2.28″)
TPC-650H Front bezel: PC/ABS Resin
Back housing: SECC
Microsoft® Windows® 7/XPE/WES
Windows CE 5.0/6.0 with Java Script
Linux with Firefox explorer and Java Script plugin
System Hardware
1GB SO-DIMM DDR2 667 SDRAM (TPC-650H only)
CFast slot x 1
CompactFlash slot x 1 (TPC-650H only )
TPC-650H: RS-232 x 2 (COM1, 2)
RS-232/422/485 x 1
USB 2.0 x 2 (Host)
PS/2 x 1 (TPC-650H only)
LCD Display
Touchscreen
Environment
