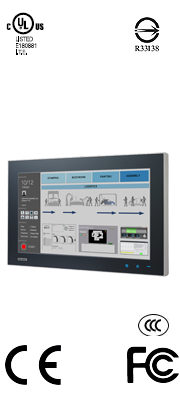

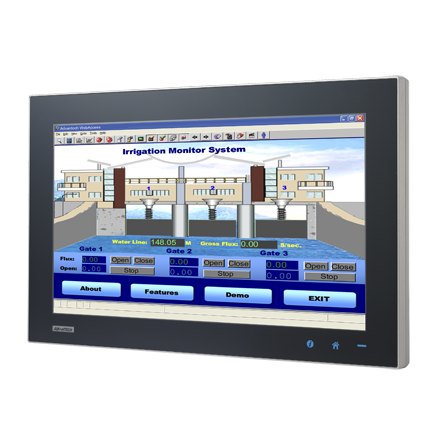

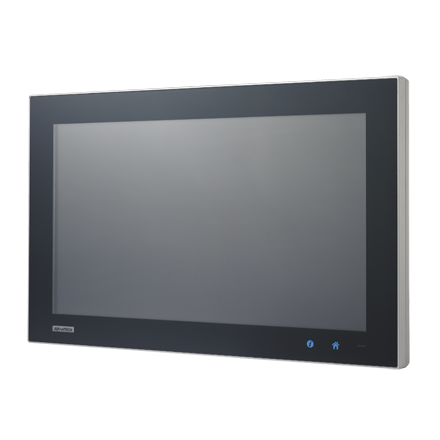

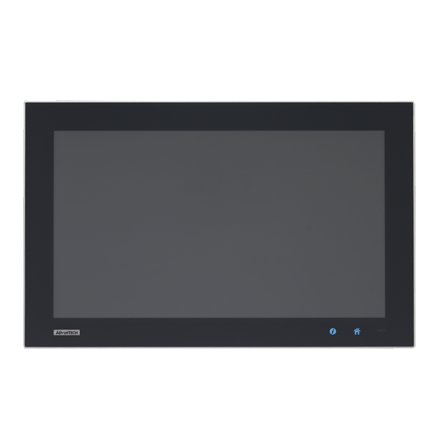

SPC-2140WP 21.5″ Full HD TFT LCD stationary Multi-Touch Panel Computer with AMD dual-core processor
Call for Price
With brand-new ID design, the SPC-2140WP series provide high resolution 21.5″ display and PCT multi-touch in 16:9 wide format. By embedding an AMD T56N 1.65GHz processor with independent GPU, the SPC-2140WP can support advanced graphical performance in more complex applications. Built-in function and home key button for greater user usability and operating safety. The SPC-2140WP also supporst Mini-PCIe slot for communication function expansion. Moreover, the SPC-2140WP includes an all around waterproof design with M12 connectors. With this vertical I/O connector, cable routing can be an easy job in stationary / VESA Arm applications.
Please click the link below to open the PDF datasheet
View Datasheet - 21.5″ Full HD TFT LED LCD display
- AMD dual-core 1.65GHz processor with independent GPU, advanced graphical performance
- 16:9 wide screen with PCT multi-touch
- Built-in function and home key button used for intuitive UI
- Anti-scratch touch surface: 7H hardness

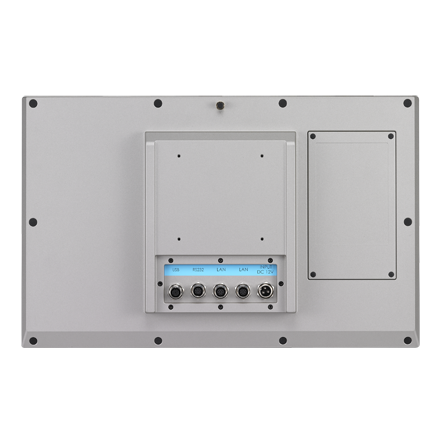

- All around IP66 with waterproof M12 connector
- Support Mini-PCIe expansion slot
- Front LED indicator to show operating status
- Fanless cooling system
- Winner of the 2013 iF product design award
- General
- Certification: BSMI, CCC, CE, FCC Class A, UL
- Cooling System: Fanless design
- Dimensions (W x H x D):
- Enclosure: Front bezel: Die-cast Aluminium alloy
- Mounting: VESA Arm
- OS Support: Microsoft® Win7/8/WES7P/XP/WES2009
- Power Consumption: 35 W Typical
- Power Input: 24 VDC
- Weight (Net): 9 kg (19.8 lbs)
- CPU: AMD G-series T56N 1.6GHz
- Chipset: AMD A50M FCH
- Memory: 4GB SO-DIMM DDR3 SDRAM
- LAN: 10/100/1000Base-T x 2 (connection:M12 A-coded,
- Expansion: Slots Full-sized Mini PCIe slot x 1 (optional)
- Storage: 2.5″ SATA HDD bracket x 1
- I/O: RS-232 x1 (connection:M12 A-coded, 8-pin male)
- Display Type: 21.5″: Full HD TFT LED LCD
- Display Size: 21.5″ / 18.5″
- Max. Resolution: 21.5″: 1920 x 1080
- Max. Colors: 16.7 M
- Luminance cd/m2: 300
- Viewing Angle (H/V°): 21.5″: 178/178
- Backlight Life: 50,000 hrs
- Light Transmission: ≥88%
- Resolution: 4096*4096 dot
- Type: Projected capacitive
- Humidity: 10 ~ 95% RH @ 40°C, non-condensing
- Ingress Protection: All around IP65
- Operating Temperature: 0 ~ 55°C (32 ~ 131°F)
- Storage Temperature: -20 ~ 60°C (-4 ~ 140°F)
- Vibration Protection: With HDD: 1 Grms (5 ~ 500 Hz)
21.5″: 558.4 x 349.8 x 65 mm (21.98″ x 13.77″ x 2.56″)
18.5″: 488 x 309 x 65 mm (19.21″ x 12.17″ x 2.56″)
Back housing: Die-cast Aluminium alloy
System Hardware
8-pin female)
USB 2.0 x1 (connection:M12 A-coded, 8-pin female)
24 VDC power input (connection:M12 A-coded, 5-pin
male)
LCD Display
18.5″: WXGA TFT LED LCD
18.5″: 1366 x 768
18.5″: 170/160
Touchscreen
Environment
Note: Tested for 48hrs
(Operating, random vibration)
