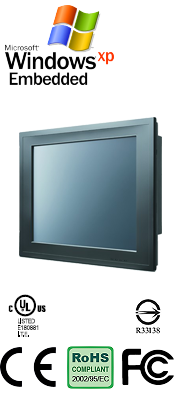

PPC-8170 17″ Panel PC with Mini-iTX AIMB Motherboard supported
£0.00 excl. vat
The PPC-8170 is a Panel PC with Mini-iTX AIMB motherboard supported and a 17″ TFT LED panel. It uses a versatile Mini-iTX AIMB mother board, with a highly efficient power supply or a wide range DC power input, and easy-to-maintain cooling fans. The PPC-8170 especially features additional external COM ports and expansion slot to accommodate different applications.
Out of stock
Please click the link below to open the PDF datasheet
View Datasheet - 17″ TFT LED Panel,resolution up to 1280 x 1024
- Built-in Intel ® Core™ i3, i5 desktop processor (LGA) with Intel H61 chipset
- Two 204 PIN DDR3 SO-DIMM,DDR3 1066/1333/1600MHz SDRAM, up to 8 GB/4 GB per SO-DIMM
- Support one expansion PCIe x 4 slot installed. (Replaceable with PCI riser accessory
- Supports 6 USB, 6 COMs, 1 x GPIO, 8 bits (Internal pin header)
- Support 1 x 2.5″ SATA bay
- Support AC 100~240V input
- Supports iManager, SUSIAccess and Embedded Software APIs
- Processor System
- CPU: Intel® Core i3-3220
- Cores: Dual Core
- Frequency: 3.3GHz
- L3 Cache: 3 MB
- CPU: Intel® Core i5-3550S
- Cores: Quad Core
- Frequency: 3.7 GHz
- L3 Cache: 6 MB
- Chipset: H61
- Memory: 2 x SO-DIMM, DDR3 1066/1333/1600, Max 16 GB
- Storage: 1 x 2.5″ SATA Bay
- Network (LAN): 2 x 10/100/1000 Mbps Ethernet
- I/O ports:
- Expansion:
- Speaker: 2 x 1W
- Fan: 1 x 12V 80x80x15mm
- Dimensions: 442.0 x 362.0 x 113.5mm (17.4″ x 14.25″ x 4.47″)
- Weight: 9.2 Kg (20.28lb)
- OS Support: Microsoft® Windows XP Pro/WES7 32bit&64bit/Windows 7 32bit&64bit/Windows 8.1 32bit&64bit
- Output Rating: 180W (Max.)
- Input Voltage: 100 – 240 Vac, 50/60Hz, 4-2A
- Power Consumption:
- Display Type: 17″ TFT LED Panel
- Max. Resolution: 1280 x 1024
- Viewing Angle: 80 (left), 80 (right), 60 (up), 80 (down)
- Luminance (cd/m2): 350
- Contrast Ratio: 800
- Backlight Lifetime: 50,000 hrs (Min.)
- Touch Type: Analog Resistive 5-wire
- Light Transmission: 81+/-3%
- Controller: USB Interface
- Durability (Touches): 36 million
6 x Serial ports: 1 x RS-232/422/485, 5 x RS-232
6 x USB2.0
1 x VGA, 1 x DVI
1 x GPIO 8 bits (Internal pin header)
1 x Line-out, 1 x Min-in
1 x PS/2
1 x PCIe x4 (Default)
1 x PCI (in the accessory box)
1 x Mini PCIe
Physical Characteristics
OS Support
Power Consumption
81W with i3-3220
96W with i5-3550s
(Burn-in test 7.0 in Windows 7 32-bit)
LCD Display
Touchscreen
