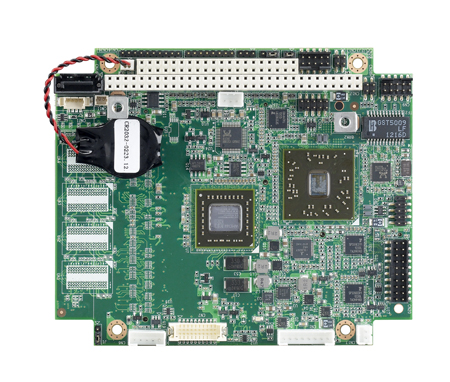

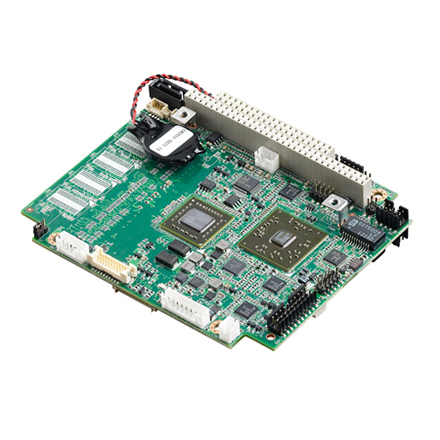

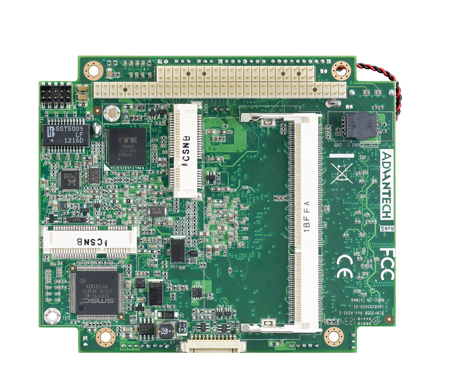

PCM-3356 AMD T16R,T40E, PC/104 SBC, VGA, LVDS, LAN, USB, COM, SATA
Call for Price
AMD T16R PC/104 SBC, VGA, LVDS, Ethernet, USB, COM.
Please click the link below to open the PDF datasheet
View Datasheet -
- AMD® G-Series™ Processor T16R 615 MHz /T40E 1.0GHz
- Supports up to 4GB DDR3L SODIMM/1G DDR3L On board memory
- Supports 18-bit LVDS and VGA
- Supports 3 COM ports, 4 USB 2.0 ports, dual GbE and audio codec
- Supports extended temp: -40 ~ 85° C
- Expansion: PC/104 and half size mini PCIe
- Supports SUSIAccess and Embedded Software APIs
See Datasheet
