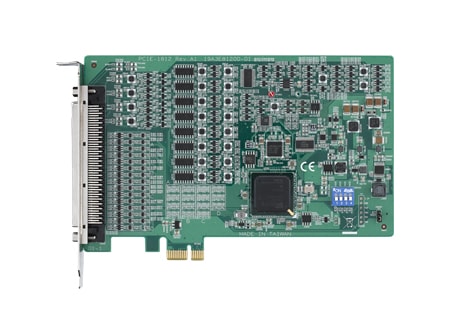

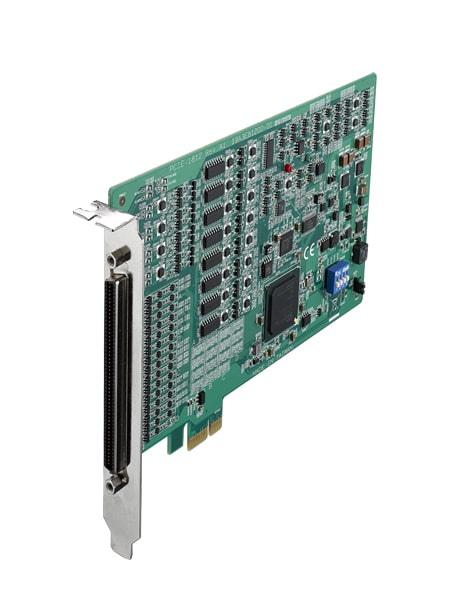

PCIE-1812 250 kS/s, 16-bit, 8-ch, Simultaneous Sampling, Multifunction PCIE Card
£942.00 excl. vat
The PCIE-1812 is a simultaneous-sampling multifunction DAQ card to meet a wide range of application requirements. The devices can simultaneously sample 8 AI channels with differential input configuration in order to achieve maximum noise elimination. It also provide 2-CH 16-bit analog outputs and with waveform generation capability, which can be performed together with analog input functions.
Please click the link below to open the PDF datasheet
View Datasheet -
- 8 differential simultaneous sampling analog inputs, up to 250 kS/s, 16-bit resolution
- 2 analog outputs, up to 3 MS/s, 16-bit resolution
- Full auto-calibration
- 2 analog triggers and 2 digital triggers for AI/O
- 32 programmable DI/Os with interrupt functions
- Four 32-bit programmable counters/ timers/ encoders
- Board ID switch
- Support for Microsoft Windows 10, 8 and 7
