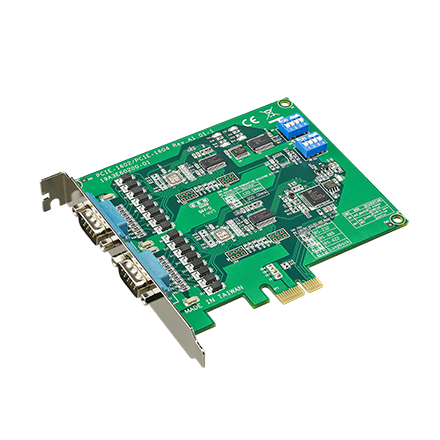

PCIE-1604B 2-port RS-232 PCI Express Communication Card w/Surge
£62.00 excl. vat
2-port RS-232 PCI Express Communication Card w/Surge
Out of stock
Please click the link below to open the PDF datasheet
View Datasheet - PCI Express bus 2.0 compliant
- Speeds up to 921.6 kbps for extremely fast data transmission
- Supports any baud rate setting
- 2 x RS-232 or RS- 232/422/485 ports
- Operating systems supported: Windows 2000/XP/Vista/7, Linux 2.4/ 2.6/ 3.x.x, QNX6.5 and Vxworks
- XR17V352 UART with 256-byte FIFOs
- General
- Bus Type: PCI Express bus 2.0 compliant
- Bus Interface: PCI Express x1
- Certification: CE, FCC class A
- Connectors: 2x male DB9
- Dimensions (L x W): 119.63 x 111 mm (4.71″ x 4.4″)
- Power Consumption: 260 mA @ +3.3 V (typ.)
- Comm. Controller: XR17V352
- Data Bits: 5, 6, 7, 8
- FIFO: 256 bytes
- Parity: None, Odd, Even, Mark and Space
- Speed: 50 bps ~ 921.6 kbps
- Stop Bits: 1, 1.5, 2
- Bundled Software: ICOM Tools
- OS Support: Windows 7/8/10, and Linux. (You can reference SW release note to know
- Operating Humidity: 5 ~ 95 % RH, non-condensing
- Operating Temperature: -10 ~ 60°C (14 ~ 140°F)
- Storage Temperature: -25 ~ 85°C (-13 ~ 185°F)
- Model Name: PCIE-1604B
- ESD Protection: 15KV (air), 8KV (contact)
- EFT Protection: 1000 V
- Surge Protection: 1000 V
Communications
Software
the version of supported OS.)
Environment
Protection
