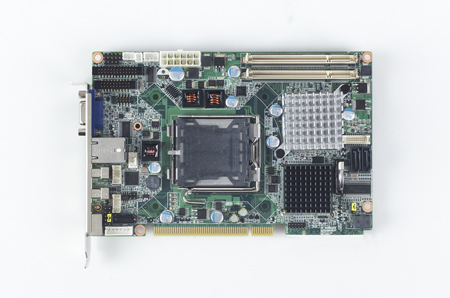

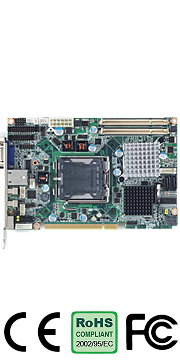

LGA775 Intel® Core™2 Duo PCI Half-size SBC with VGA/GbE LAN/SATA and SSD.

SKU: PCI-7020 Category: Half Size

Please click the link below to open the PDF datasheet

Supports LGA 775 Intel® Core™2 Duo FSB 1066 MHz processors
Supports dual channel DDR2 667 SDRAM up to 4 GB
Supports 6 USB 2.0 ports
Supports GbE LANs via PCIe x1 lanes
Supports up to 6 COM, 4 x RS-485 w/Auto-Flow control by COM module

Processor System

CPU: Core 2 Duo
FSB: 1066 MHz
Max Speed: 2.8 GHz
L2 Cache: 4 MB
Chipset: Intel 945GC + ICH7R
BIOS: AWARD 8 Mbit SPI Flash

Bus

Front Side Bus: 533/800/1066
PCI: 32-bit/33 MHz

Memory

Technology: Dual-channel DDR2 533/667 MHz SDRAM SODIMM
Max. Cap.: 4 GB
Socket: 200-pin SODIMM x 2

Graphics

Controller: Intel Graphics Media Accelerator 950 VGA: Mode: Up to 2048 x 1536 @ 75 Hz refresh
Integrated: Up to 2048 x 1536 @ 75 Hz refresh
VRAM: Shared with 224 MB system memory
DVI: (optional) Maximum pixel lock of 400 MHz up to 2048 x 1536 resolutions @ 75 Hz

Ethernet

Interface: 10/100/1000 Mbps
Controller: Intel 82574L x 1
Connector: RJ-45 with LED Connector x 1

SATA

Bandwidth: 300 MB
Channel: 3

EIDE

Mode: –
Channel: –

I/O Interface

USB: 2.0 6 ports (USB 2.0 compliant, 2 ports on rear I/O, 4 ports onboard by 2.0 mm pitch box header)
Serial: 6 COM (2 x RS-232 onboard, Optional: 4 x RS-422/485 w/Auto-flow by PCA-COM485 module)
Parallel: 1 (EPP/ECP), 2.0 mm pitch pin header
PS/2: 1 (for mouse and keyboard, a Y-cable is included in the package)

Watchdog Timer

Output System reset
Interval Programmable, 1~255 sec/min

Miscellaneous

Audio Output: Intel High Definition audio interface (requires an audio extension module P/N: PCA-AUDIO-HDA1E)
Solid State Disk: CompactFlash Socket (Type I/II)

Power Requirement

CPU/RAM: Core 2 Duo E7400 2.80 GHz + DDR2 800 2 GB
Voltage: +12 V (4.38 A) +5 V (4.86 A) 5 VSB (0.39 A)

Environment

Operating Temperature: 0 ~ 60° C (32 ~ 140° F), with appropriate CPU cooler (operating humidity: 40° C @ 85% RH Non-Condensing)
Non-Operating (Storage) Temperature: -40° C – 85° C and 60° C @ 95% RH Non-Condensing

Physical

Dimensions: 185 mm (L) x 122 mm (W) (7.3″ x 4.8″)
