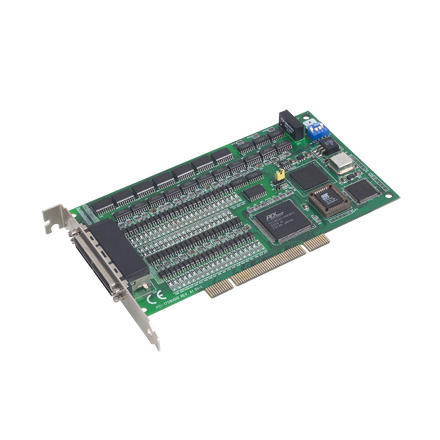

PCI-1758UDIO 128-ch Isolated Digital I/O Universal PCI Card
£362.00 excl. vat
PCI-1758UDI and PCI-1758UDIO provide an interrupt function for every digital input channel. You can disable/enable the interrupt functions, and select trigger type by setting the Rising Edge Interrupt Registers or Falling Edge Interrupt Registers of the card. When the interrupt request signals occur, software will service these interrupt requests by ISR. The multiple interrupt sources provide the card with more flexibility.
Please click the link below to open the PDF datasheet
View Datasheet - 64-ch isolated digital output and 64-ch isolated digital input
- High-voltage isolation on output channels (2,500 VDC)
- High ESD protection (2,000 VDC).
- Wide output range (5 ~ 40 VDC); input range (5 ~ 25 VDC)
- High-sink current for isolated output channels (90 mA max./Channel)
- Digital Filter function.
- Current protection for each port
- Interrupt handling capability for each channel.
- Output status read-back
- Watchdog timer
- Isolated Digital Input
- Channels:PCI-1758UDIO: 64
- Input Voltage: Logic 0: 2.5 V max.
- Interrupt Capable Ch.:PCI-1758UDIO: 64
- Isolation Protection: 2,500 VDC
- Opto-Isolator Response: 20 µs
- Input Resistance: 3 kW
- Channels:PCI-1758UDIO: 64
- Output Type: Sink (NPN)
- Isolation Protection: 2,500 VDC
- Output Voltage: 5 ~ 40 VDC
- Sink Current: 90 mA max./channel
- Opto-isolator Response: 20 µs
- Bus Type: Universal PCI V2.2
- I/O Connectors: 1 x mini-SCSI HDRA-E100 female connector
- Dimensions (L x H): 175 x 100 mm (6.9″ x 3.9″)
- Power Consumption:
- Operating Temperature: 0 ~ 60°C (32 ~ 140°F) (IEC 68-2-1, 2)
- Storage Temperature: -20 ~ 70°C (-4 ~ 158°F)
- Storage Humidity: 5 ~ 95% non-condensing
Logic 1: 5 V min. (25 V max.)
Isolated Digital Output
General
PCI-1758UDIO: Typical 5 V @ 1.2 A
Max. 5 V @ 1.8 A
