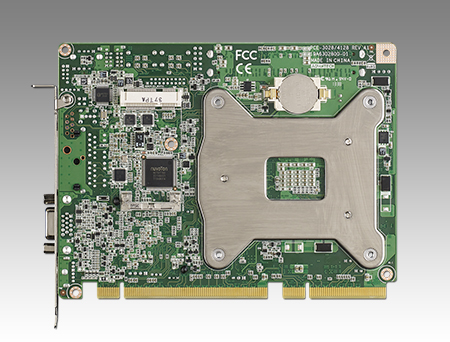

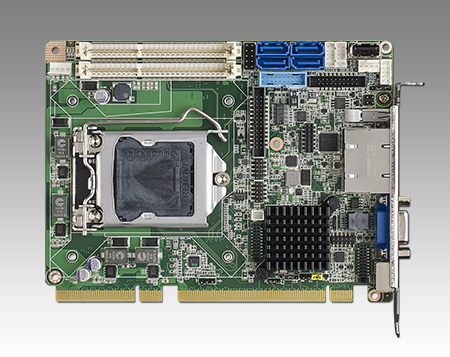

PCE-4128 LGA 1150 4th Generation Intel Xeon and Core i7/i5/i3 PICMG 1.3 Half-size SHB with PCIe 3.0/Triple independent display/Dual GbE LAN/SATA 3.0/m-SATA/USB 3.0
£455.00 excl. vat
display/Dual GbE LAN/SATA 3.0/m-SATA/ USB 3.0
Please click the link below to open the PDF datasheet
View Datasheet -
- Complies with PICMG 1.3
- Supports Intel Xeon E3 1200v3 series, Core i7/i5/i3 LGA1150 processors with C226
- Dual Channel DDR3 1066/1333/1600 up to 16 GB (Only ECC support)
- Supports PCIE 3.0, USB 3.0, SATA3.0, SW Raid 0, 1, 5, 10
- Supports triple displays
- Support dual 10/100/1000 Mbps Ethernet
- Supports out-of-band remote management with AMT9.0
- Supports Advantech TPM module (LPC I/O)
- Supports SUSIAccess and Embedded Software APIs
See Datasheet
