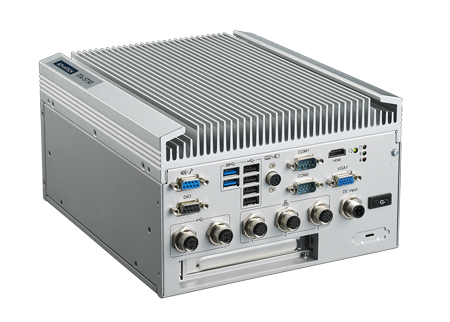

ITA-5730 Intel® 3rd Generation Core™ i Processor Fanless System for railway applications
    ITA-5730 Intel® 3rd Generation Core™ i Processor Fanless System for railway applications
    ITA-5730 Intel® 3rd Generation Core™ i Processor Fanless System for railway applications
    ITA-5730 Intel® 3rd Generation Core™ i Processor Fanless System for railway applications

    ITA-5730 Intel® 3rd Generation Core™ i Processor Fanless System for railway applications

    £1,623.00 excl. vat

    ITA-5730 Intel® 3rd Generation Core™ i Processor Fanless System for railway applications

    Out of stock

    SKU: ITA-5730 Category:

    Please click the link below to open the PDF datasheet

    View Datasheet

    • Supports Intel® 3rd Generation processor with HM76
    • ƒƒ Fanless computer for railway vehicle applications, fully compliant with EN 50155
    • ƒƒ Satisfy temp. standard: EN 50155 TX (-40 ~ 70° C) and IEC 61373 body mount class B
    • ƒƒ Compliant with EN 50121-3-2 EMC test standard
    • ƒƒ Ruggedized connectors (M12) used for communication and power ports
    • ƒƒ Optional PCI/miniPCIe slots for expansion

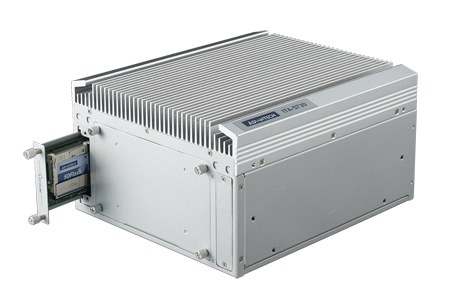

    • ƒƒ Support Easy-swap HDD/SSD/CF module

      System Chipset

    • CPU: Intel® Core™ i7-3555LE
    • Max Speed: 2.5 GHz
    • L2 Cache: 6 MB
    • Chipset: Intel HM76
    • BIOS: AMI SPI 64 Mb

    • CPU: Intel® Core™ i3-3217UE
    • Max Speed: 2.5 GHz 1.6 GHz
    • L2 Cache: 6 MB 3M
    • Chipset: Intel HM76
    • BIOS: AMI SPI 64 Mb

      • Memory

    • Technology: DDR3 1333/1600MHz
    • Max. Capacity: 4G on board memory

      • Display

    • Chipset: Intel Integrated Graphics HD4000, support Direct x11
    • VRAM: Share with system memory up to 512MB
    • Dual Display:

      • VGA + HDMI
      Single channel max: 2048 x 1536 @ 60Hz
      Dual channel max: 1920 x 1080 @ 60Hz

      Ethernet

    • Controller: Intel i210-IT
    • Interface: 10/100/1000 Mbps
    • Connector: Up to 3 x M12 A-coded(F) 8-pin

      • Storage

    • HDD/SSD: Support 1 x 2.5″ SSD/HDD Easy-Swap bay
    • Others: 1 x mSATA slot on M/B

      • 1 x Easy-Swap CF/SATA DOM Module

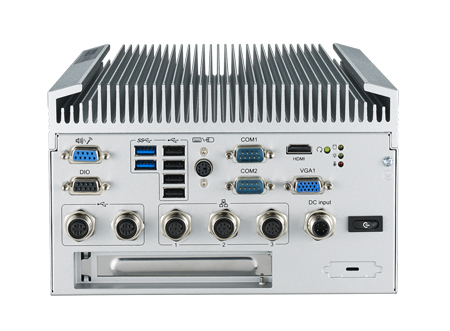

      I/O (Others)

    • USB:

      • 2 x USB2.0 with M12 A-coded(F) 4-pin
      4 x USB2.0 with Type A
      2 x USB3.0 with Type A

    • Serial Port 2 x DB9, RS-232/422/485, Support auto-flow control
    • DIO: 1 x DB9, 8-bit
    • VGA: 1 x DB15
    • HDMI: 1
    • Audio: 1 x DB9, 1 x Speaker-out with 2 x 4W Amp., 1 x Mic-in
    • PS2: 1 x PS2

      • Expansion Slot

    • Mini PCIe: 1 x Mini PCIe Socket (Full size)

      • 1 x Mini PCIe Socket (Full/Half size)

    • PCI: 1 x PCI32 33Mhz Slot

      • LED & Button

    • LED: 1 x Power, 1 x Storage, 1 x Alert
    • Button: 1 x Power on/off Switch

      • 1 x Reset Button

      Power

    • Input Voltage: DC 24V input compliant with EN50155 class S2/C1 (Optional DC 48/72/110V input)
    • Connector: 1 x M12 A-coded(M) 4-pin

      • Watchdog Timer

    • Output: System reset
    • Interval: Programmable 1~255 sec/min

      • Environment

    • Operating (with Industrial SSD/CF) Temperature: -40 ~ 70° C
    • Non-Operating Temperature: C -40 ~ 85° C
    • Humidity: 5% ~ 95% @ 40° C (Non-Condensing)

      • Mechanical

    • Dimension (W x H x D): 210 (W) x 240 (D) x 129 (H) (8.4″ x 9.5″ x 5.1″)

      • 253 (W) x 240 (D) x 133 (H) (10.0″ x 9.5″ x 5.3″) with mounting bracket

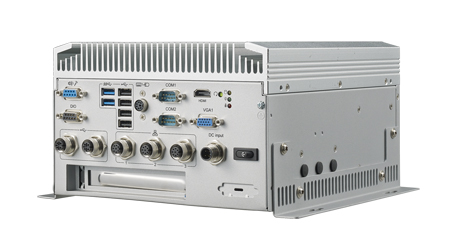

    • Install: Desktop/Wall-mounting

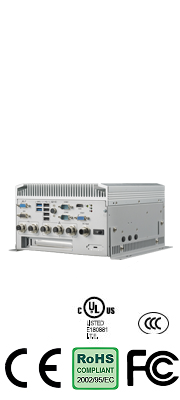

      • Certification

    • EMC: CE/FCC Class A, CCC
    • Safety: UL, CB, CCC

      • EN 50155 Compliance

    • Ambient Temperature: EN 50155 TX (-40 ~ 70° C)
    • Shock and Vibration: IEC 61373 body mount class B
    • Interruptions of Voltage Supply: Class S2
    • Supply Change Over: Class C1
    • EMC: EN 50121-3-2
