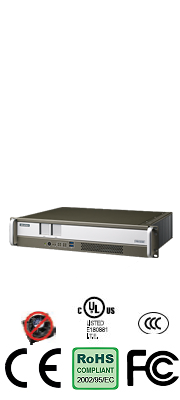

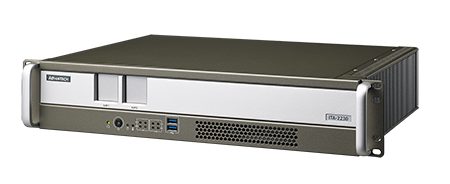

ITA-2230S Intel® Core™ i7 Fanless 2U Rackmount System with 2 ITAM Module
Call for Price
ITA-2230S Intel® Core™ i7 Fanless 2U Rackmount System with 2 ITAM Module
Please click the link below to open the PDF datasheet
View Datasheet - Built-in Intel® Core™ i7-3555LE, 2.5 GHz CPU
- ƒƒ Onboard 4GB DDR3 Memory
- ƒƒ 2U Fanless Rackmount System
- ƒƒ Support 3 ITAM Module for I/O expansion
- ƒƒ Support Easy-Swap Power Module
- ƒƒ 4 USB 3.0 & 4 USB 2.0
- ƒƒ HDMI & VGA Display output
- ƒƒ Compliance with railway applications (EN50121-4)
- CPU: Intel® Core™ i7-3555LE(25W)
- Max Speed: 2.5 GHz
- L2 Cache: 6 MB
- Chipset: Intel® QM77
- BIOS: AMI SPI 64 Mb
- Technology: DDR3 1600
- Max. Capacity: Onboard 4 GB
- Chipset: Intel® HD4000
- VRAM: Shared system memory up to 512 MB SDRAM
- Dual display: 1 x DVI-I, 1 x DVI-D
- Interface: 10/100/1000 Mbps
- Controller: 2 x Intel® I210IT
- Connector: 2 x RJ-45
- SSD: 1 x Full size mSATA
- HDD: 1 x 3.5″ or 2 x 2.5″ HDD bay, RAID 0/1
- DVI: 1 x DVI-I, 1 x DVI-D
- LAN: 2
- USB: 4 x USB 3.0, 3 x USB 2.0
- Serial: 2 x DB9 (RS-232/422/485)
- Digital I/O: 1 x 8-ch TTL GPIO
- PS/2: 1
- Audio: 1 x Speaker-out with 2 x4W Amp, 1 x Mic-in
- PCI: 1 x PCI slot, 32bit
- PCIe: 1 x PCIe x 4 slot
- PC104+: 1
- Mini PCIe: 1
- Single Power Module:
- Dual Power Module
- Output: System reset
- Interval: Programmable 1~255 sec/min
- Temperature Operating (W/O HDD): -25 ~ 60° C
- Temperature Operating (With HDD): 0 ~ 40° C
- Temperature Non-Operating: -40 ~ 85° C
- Dimensions (W x H x D): 483 x 88 x 325 mm
- EMC: CE/FCC Class A
- Safety: UL,CB,CCC
- Compliance: EN 50121-4,Level 4 EMS
Processor System
Memory
Graphics
Ethernet
Storage
I/O Interface
Expansion Slots
Power module
Input Range: AC 100 ~ 240V or DC 110V
Connector: 1 x 3pin 5.08mm Terminal Block
Wattage (60° C): 110 W
Input Range: Dual AC 100 ~ 240V or DC 110V
Connector: 2 x 3pin 5.08mm Terminal Block
Wattage (60° C): 110W (Load Balance)
Watchdog Timer
Environment
Physical Characteristics
Certification
