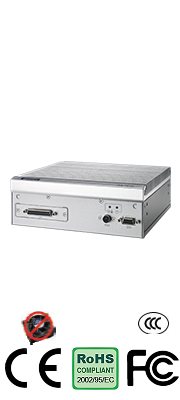

ITA-1610 Intel® Atom™ D525 Compact System with Dual GigaLAN and Dual Display
    ITA-1610 Intel® Atom™ D525 Compact System with Dual GigaLAN and Dual Display
    ITA-1610 Intel® Atom™ D525 Compact System with Dual GigaLAN and Dual Display
    ITA-1610 Intel® Atom™ D525 Compact System with Dual GigaLAN and Dual Display

    ITA-1610 Intel® Atom™ D525 Compact System with Dual GigaLAN and Dual Display

    £386.00 excl. vat

    ITA-1610 Intel® Atom™ D525 Compact System with Dual GigaLAN and Dual Display

    Out of stock

    SKU: ITA-1610 Category:

    Please click the link below to open the PDF datasheet

    View Datasheet

    • Fanless, Intel® Atom™ D525, 1.8 GHz Dual Core Compact System
    • ƒƒ Supports 9 ~ 36 V wide range DC input
    • ƒƒ Supports up to 2 x GbE, 6 x USB 2.0, 6 x COM ports
    • ƒƒ Serial ports support RS-232/422/485 with automatic flow control
    • ƒƒ Dual display
    • ƒƒ Supports 8 channel Digital I/O
    • ƒƒ Onboard DDR3 memory up to 2 GB and optional NVRAM
    • ƒƒ Supports 1x 2.5″ HDD

      Processor System

    • CPU: Intel Atom D525
    • Max Speed: 1.8 GHz
    • L2 Cache: 1 MB
    • Chipset: Intel ICH8-M
    • BIOS: AMI SPI 16Mb

      • Memory

    • Technology: Single channel DDR3 800
    • Capacity: Onboard 1 GB or 2 GB

      • Graphics

    • Chipset: Embedded Gen3.5+GFX Core, Frenquency 400 MHz
    • VRAM: Shared system memory up to 256 MB SDRAM
    • Dual Display:

      • 2 x VGA or VGA + LVDS
      Single channel max: 2048 x 1536 @ 60Hz
      Dual channel max: 1366 x 768 @ 60Hz

    • LVDS: Support 18bit /24bit single channel up to 1366 x 768 @ 60Hz

      • Ethernet

    • Interface: 10/100/1000 Mbps
    • Controller: 2 x Intel 82583V
    • Connector: 2 x RJ-45

      • Storage

    • NVRAM: 1 Mb FRAM(Optional)
    • CF: 1 x CompactFlash socket for Type I/II CompactFlash disk
    • HDD: Support 1 x 2.5″ HDD

      • I/O Interface

    • VGA: 2
    • LVDS: 1
    • LAN: 2
    • USB: 6
    • COM: 2 x RS 232/422/485 ports with automatic flow control

      • (Up to 6 ports with additional 4 optional RS-232 Serial ports)

    • Digital I/O: 1 x 8-ch GPIO
    • Audio: 1 x Speaker out with 2x4w amplifier, 1x Mic in
    • PS/2: 1
    • Reserved area: 1 (default 1 x LPT port, optional 2 x VGA with PCA-5650)

      • Expansion Slots

    • Mini PCIe: 1

      • Power

    • Power Input Voltage: DC 9 V ~ 36 V input

      • Watchdog Timer

    • Output System: reset
    • Interval Programmable: 1~255 sec/min

      • Environment

    • Operating (W/O HDD) Temperature: -25 ~ 60° C
    • Operating (With HDD) Temperature: 0 ~ 40° C
    • Non-Operating Temperature: -40 ~ 85° C

      • Physical Characteristics

    • Dimensions (W x H x D): 220 x 70 x 190 mm
