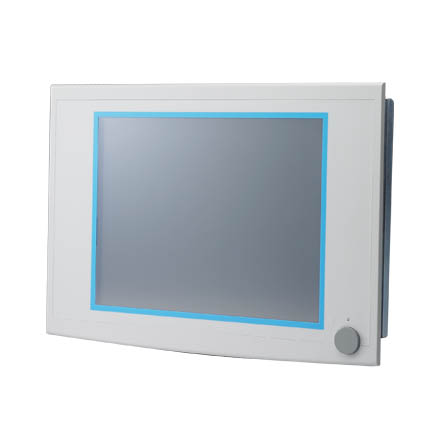

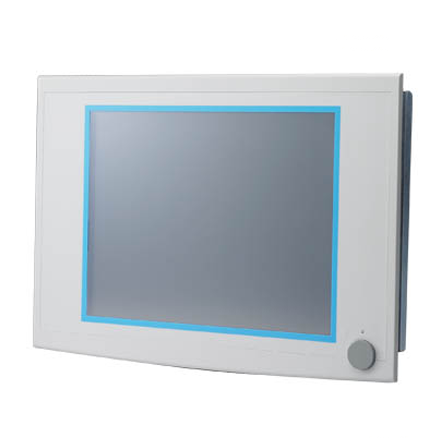

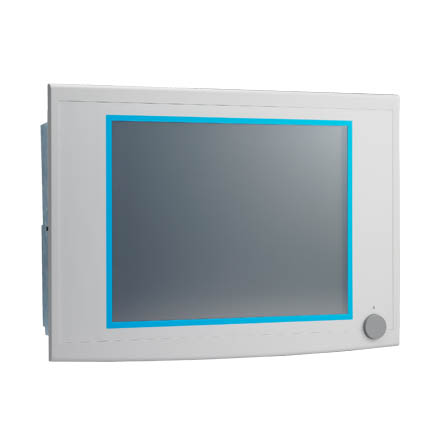

IPPC-6172A 17″ SXGA TFT LCD LED Backlight Core™ i7/i5/i3 Industrial Panel PC
Call for Price
The IPPC-6000A Series is an Industrial Panel PC with front USB access, supports the powerful Haswell platform Core™ i7/i5/i3, high speed DDR3 memory, up to 32 GB, two expansion PCI slots. The processor and chipset combination form the foundation of vPro, Intel’s next generation digital office platform, offering remote out-of-band manageability, improved security, and energy efficient performance. Two SATA hard driver interface with RAID 0,1 support provides data security. Multi function optional ““CFast ,PCI/ PCIe expansion,DVDROM which offers great flexibility for application specific requirements.Rugged Metal &IP65 Flat-Sealed Front provide excellent durability in harsh environment. With optional mounting accessories, from panels to racks,it can be mounted anywhere.
Please click the link below to open the PDF datasheet
View Datasheet -
- 15″ XGA/17″ SXGA/19″ SXGA TFT LCD with touchscreen
- Supports Intel® Core™ i7/i5/i3 processor with Q87 chipset (up to 3.1GHz )
- System supports four DIMM sockets support up to 32 GB DDR3 1333/1600
MHz SDRAM
-
- Offers multiple expansion slots including two PCI (default), one PCI + one
- PCIe x4 (optional), two PCIe x1 (in the accessory box)
- SATA 2.0 or SATA 3.0 HDDs and RAID 0,1 compatibility
- Front USB access and system reset function
- Front panel is IP65 compliant
- Supports Intel AMT 9.0 and Intel vPro competent
- Supports Microsoft® Windows 7,Windows 8.1 and Windows 10
- Supports SUSIAccess and Embedded Software APIs
- Optional Functionality ““CFast ,PCI/ PCIe expansion,DVD-ROM
General
-
- BIOS: AMI 64 MB Flash BIOS

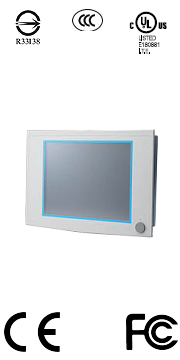

- Certification: UL, CE, FCC, CCC, BSMI
- Enclosure: Die-cast flat-sealed front with SGCC Housing
- Dimensions (W x H x D): IPPC-6172A: 481.93 x 355.87 x 132.5 mm
(18.97″ x 14.01″ x 5.22″)
-

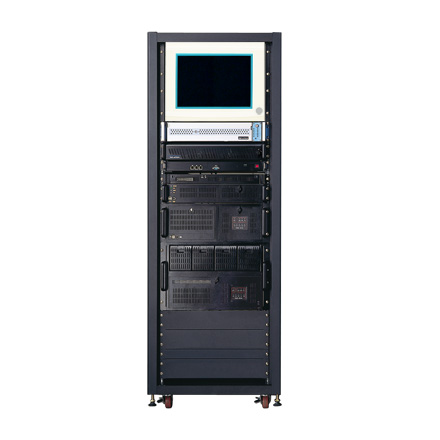

- Mounting: Panel, Rack (optional)
- OS Support: Microsoft® WES7 32bit/Windows 7 32bit&64bit/
Windows 8.1 32bit&64bit/Windows 10 64bit
-
- Power Input: 100 ~ 240 VAC @ 60 ~ 50 Hz, 7 ~ 3.5 A
- Power Supply: 350 W
System Hardware
-
- CPU: Supports Intel® Core™ i7/i5/i3 processor (up to 3.1GHz )
- Chipset: Intel Q87
- Memory: System supports four DIMM sockets support up to 32
GB DDR3 1333/1600 MHz SDRAM
-
- LAN: 10/100/1000 Base-T Ethernet x 2
- Expansion: Two half-length PCI (default)
Two PCIe x1 (in the accessory box)
One PCI + One PCIe x4 (Optional)
-
- Storage: Supports 2 x 2.5″ SATA 2.0 or SATA 3.0 HDDs and
RAID 0,1 compatibility
-
- Optical Driver: 1 x Slim Type DVD-RW (optional)
CFast (optional)
-

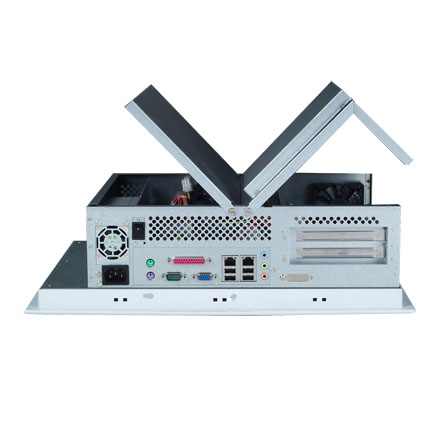

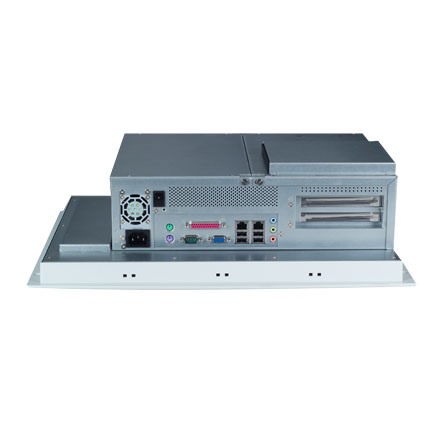

- I/Os: 4 (3 x RS-232, 1 x RS-232/422/485 to support auto
flow control)
1 x GPIO
2 x Reservation ports
5 x USB Host( USB 2.0 front, 4 USB 3.0) 2 x GbE LAN
VGA x1; DVI x1; DP x1
2 (1 x keyboard and 1 x mouse)
2 (Mic-in, Line-out)
LCD Display
-
- Backlight Life: 50,000 hrs
- Contrast Ratio: IPPC-6172A:1000:1
- Display Size: 15″, 17″, 19″
- Display Type: IPPC-6172A:SXGA TFT LCD LED Backlight
- Luminance: IPPC-6172A: 350 cd/m2
- Max. Colors: IPPC-6172A: 16.7M (RGB 6-bit + Hi-FRC data)
- Max. Resolution: IPPC-6172A: 1280 x 1024
- Viewing Angle (H/V°): IPPC-6172A: 170/160
