Call for Price

8-Slot Desktop/Wallmount Chassis with Front Alarm Notification.

SKU: IPC-6908 Category: Desktop & Wallmount

Please click the link below to open the PDF datasheet

8-slot desktop/wallmount industrial computer chassis

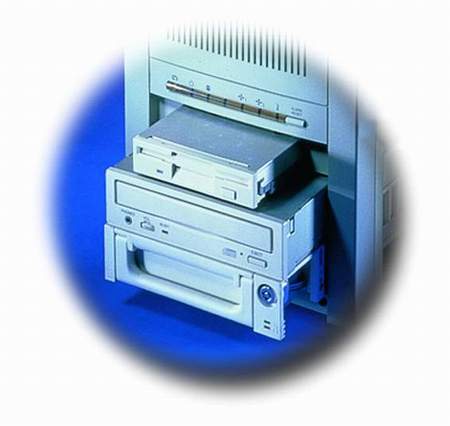

Shock-resistant drive bay with rubber cushions

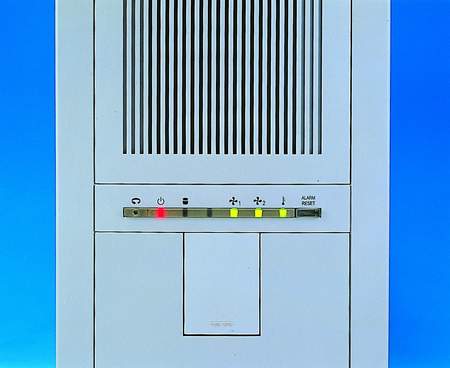

LED indicators and audible alarm notification for system fault detection
Easy-to-open top-cover, no screwdriver required

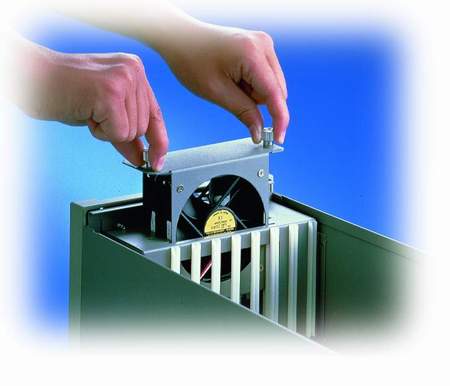

One hot-swappable 9 cm / 53 CFM system fans

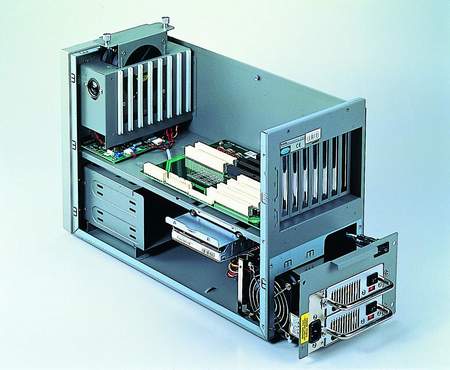

Various 8-slot backplane options

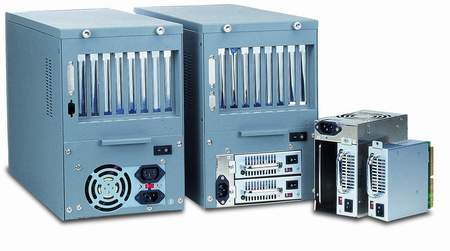

250 W / 300 W / 400 W ATX PS/2 and 300W ATX redundant power supply options

Drive Bay

Front-accessible

5.25″: 2
3.5″: 1

Internal

5.25″: –
3.5″: 1

Cooling

Fan: 1 (hot-swappable, 9 cm / 53 CFM each)
Air Filter: Yes

Miscellaneous

LED Indicators: Power, HDD, temperature and fan
Control: System reset and alarm reset

Environment

Operating

Temperature: 0 ~ 40° C (32 ~ 104° F)
Humidity: 10 ~ 85% @ 40° C, non-condensing
Vibration (5 ~ 500 Hz): 1 Grms

Non-Operating

Temperature: -20 ~ 60° C (-4 ~ 140° F)
Humidity: 10 ~ 95% @ 40° C, non-condensing
Vibration (5 ~ 500 Hz): 1 Grms

Physical Characteristics

Dimensions (W x H x D): 200 x 300 x 463 mm (7.9″ x 11.8″ x 18.2″)
Weight: 12 kg (26.4 lb)
