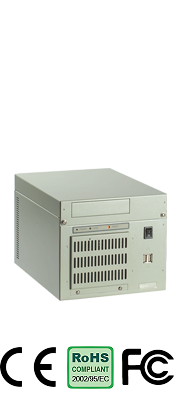

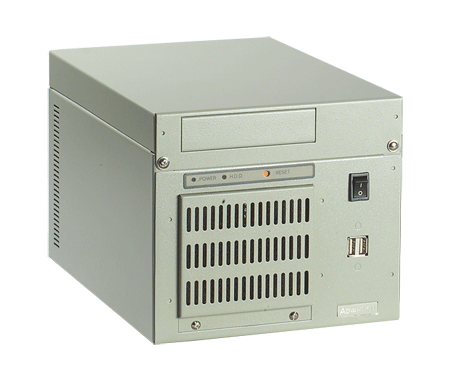

IPC-6806S Compact Chassis for Half Size SHB/SBC

IPC-6806S Compact Chassis for Half Size SHB/SBC

IPC-6806S Compact Chassis for Half Size SHB/SBC

IPC-6806S Compact Chassis for Half Size SHB/SBC

IPC-6806S Compact Chassis for Half Size SHB/SBC

Call for Price

Compact Chassis for Half Size SHB/SBC.

SKU: IPC-6806S Category: Desktop & Wallmount

Please click the link below to open the PDF datasheet

Shockproof drive bay for 3.5” HDD
Two Front access USB ports
Support 6-slot PICMG 1.3/1.0 backplane
Easy maintain system fan and filter

Drive Bay

5.25″: –
3.5″: 2 (1-front-accessible, 1 internal)

Cooling

Fan: 1 (9cm / 53 CFM)
Air Filter: Yes

Front I/O Interface

USB: 2

Miscellaneous

LED Indicators: Power and HDD
Control: Power switch and system reset button

Environment
Operating

Temperature: 0 ~ 40° C (32 ~ 104° F)
Humidity: 10 ~ 85% @ 40° C, non-condensing
Vibration (5 ~ 500 Hz): 0.5 Grms
Shock: 10 G (with 11 ms duration, half sine wave)

Non-operating

Temperature: -20 ~ 60° C (-4 ~ 140° F)
Humidity: 10 ~ 95% @ 40° C, non-condensing
Vibration (5 ~ 500 Hz): 2G
Shock: 30G

Physical Characteristics

Dimensions (W x H x D): 191 x 170 x 285 mm (7.5″ x 6.7″ x 11.2″)
Weight: 5.6 kg (12.3 lb)
