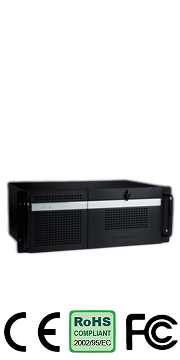

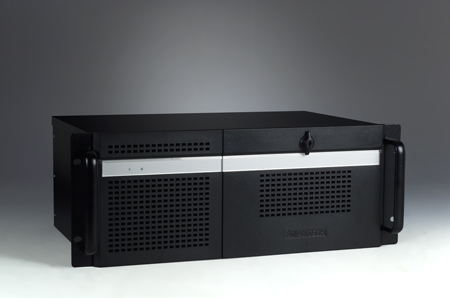

IPC-619 Compact 4U Rackmount Chassis for Motherboard & SBC

IPC-619 Compact 4U Rackmount Chassis for Motherboard & SBC

Call for Price

The elegantly designed IPC-619 is a solid industrial chassis with a depth of only 429 mm”“much smaller than normal chassis in the market”“that can accommodate a PICMG 1.3/1.0 full-size SHB/SBC with up to 14-slots for full-length cards or an ATX/microATX motherboard for application ready requirements.

SKU: IPC-619 Category: 19" Rackmount Chassis 1U/2U/4U/6U

Please click the link below to open the PDF datasheet

View Datasheet

Space-saving 4U rackmount chassis, with only 429 mm depth
Supports either ATX/MicroATX motherboards or backplane up to 15 slots

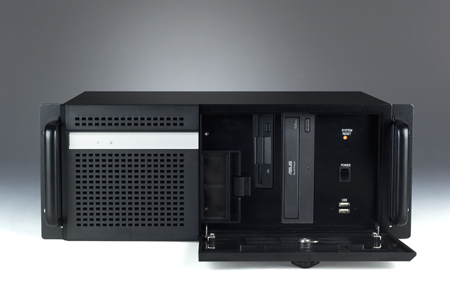

Shock-resistant drive bay design supports up to two 5.25″ and one 3.5″ disk drives
Versatile 250W/300W/400W power supply options

Drive Bay

Front-accessible
5.25″: 2/1
3.5″: 1/1

Cooling

Fans: One (12 cm/85 CFM)
Air Filters: Yes

I/O interfaces

USB: 2 (front-accessible)

Miscellaneous

Notification: LEDs PWR, HDD
Control Power: switch and system reset button

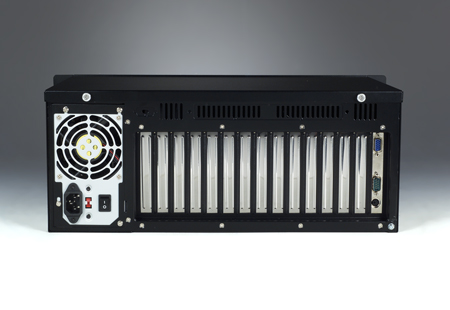

Rear Panel: BP version: One 9-pin D-Sub opening; MB version (IPC-619 only): Five 9-pin D-Sub & one 68-pin SCSI openings

Environment

Operating
Temperature: 0 ~ 40° C (32 ~ 104° F)
Humidity: 10 ~ 85% @ 40° C, non-condensing
Vibration: (5-500 Hz): 1 Grms
Shock: 10 G (with 11 ms duration, half sine wave)
Non-Operating
Temperature: -20 ~ 60° C (-4 ~ 140° F)
Humidity:10 ~ 95% @ 40° C, non-condensing
Vibration: (5-500 Hz): 2 G
Shock: 30 G

Physical

Dimensions (W x H x D): 482 x 177 x 430 mm (19″ x 7″ x 16.9″)/482 x 177 x 275 mm (19″ x 7″ x 10.8″)
Weight: 15 kg (33 lb)/8 kg (17.6 lb)
