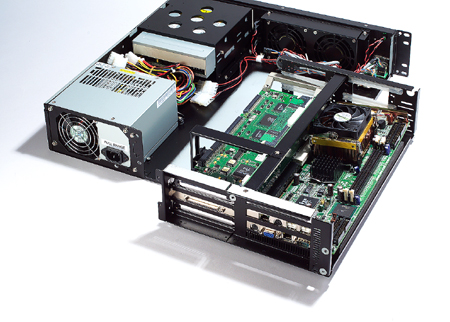

IPC-602 2U 6-Slot Rackmount Chassis with Front USB and PS/2 Interfaces
Call for Price
2U 6-Slot Rackmount Chassis with Front USB and PS/2 Interfaces
Please click the link below to open the PDF datasheet
View Datasheet - 2U rackmount chassis supports up to 6 cards
- Butterfly backplane design
- Front-accessible USB and PS/2 connectors
- 250 W / 300 W AC ATX and DC power supply options
- Two 40 CFM cooling fans with air filter
- Lockable front door prevents unauthorized access
- Drive Bay
- External:
- Internal:
- Fan: 2 (8 cm / 47 CFM each) / 2 (8 cm / 40 CFM each)
- Air Filter: Yes
- USB: 2
- PS/2: 1
- LED Indicators: Power and HDD activity; fan and temperature for ACP-2000 only
- Rear Panel: One 9-pin D-Sub opening
- CPU/System fan speed , CPU/System temperature , motherboard voltage
- Operating:
- Non-Operating:
- Dimensions (W x H x D): 482 x 88 x 451 mm (19″ x 3.5″ x 17.8″)
- Weight: 11.5 kg (25.3 lb) / 11.3 kg (24.9 lb)
Slim Optical Disk Drive: 1/-
3.5″: 2/1
5.25″: -/1
Slim Optical Disk Drive: –
3.5″: -/1
5.25″: –
Cooling
Front I/O Interface
Miscellaneous
Intelligent System Module Remote Monitoring
(Only selected Advantech MBs/CPU cards with WISE-PaaS/RMM installed can fully enable these functions, check with Advantech local rep. for detailed
information.) (This feature only enabled in ACP-2000)
Environment
Temperature: 0 ~ 40 °C (32 ~ 104 °F)
Humidity: 10 ~ 85% @ 40 °C, non-condensing
Vibration (5 ~ 500 Hz): 0.5 Grms
Shock: 10 G (with 11 ms duration, half sine wave)
Temperature: -20 ~ 60 °C (-4 ~ 140 °F)
Humidity: 10 ~ 95% @ 40 °C, non-condensing
Vibration (5 ~ 500 Hz): 2 G
Shock: 10 G (with 11 ms duration, half sine wave)
Physical Characteristics
