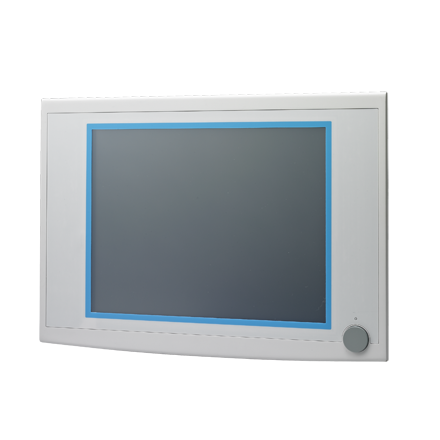

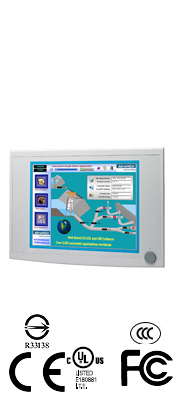

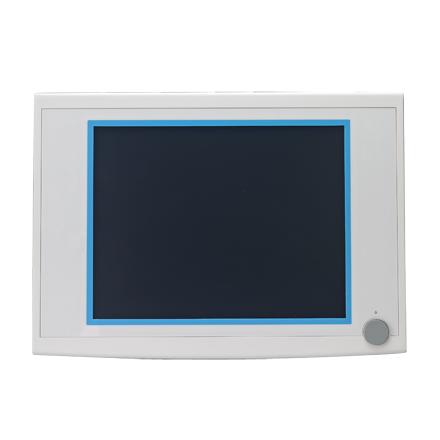

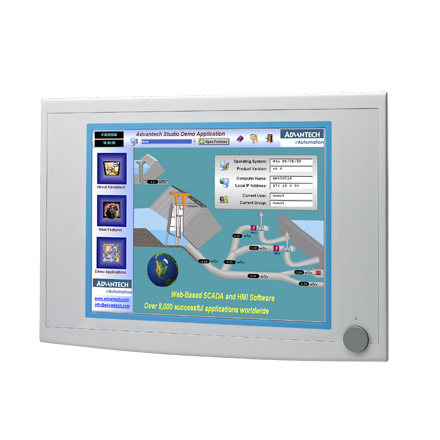

FPM-5152G 15″ XGA Industrial Monitors with Resistive Touchscreens, Lockable Display Port
£0.00 excl. vat
The FPM-5000G series provides 15″, 17″ and 19″ color TFT LCD with LED backlight flat panel monitors specifically designed for industrial applications. With a viewing size from 15″ to 19″, they present ample display areas as well as vivid and sharp images. It features display port signal transmission and onscreen display allows users to adjust the images on the screen. The front access USB connector provides easy access the controller, and the industrial 18-32VDC wide range power support makes this product an excellent option for Factory and Machine Automation display solutions.
Out of stock
Please click the link below to open the PDF datasheet
View Datasheet - 15″ XGA or 17″ / 19″ SXGA TFT LCD LED backlight
- Lockable display port input interface
- Lockable OSD keys with 2 user-defined contrast/brightness settings
- Flat-sealed front panel
- Robust design with anti-rust chassis and aluminum die-cast front panel
- Front accessible USB connector
- USB interface for touchscreen function
- Supports industrial 18-32VDC power input with Phoenix jack
- Supports panel, wall, desktop, rack or VESA arm mounting
- Front panel is IP65 compliant
- General
- Button Controls: OSD control pad on rear side with lockable function
- Certification: BSMI, CCC, CE, FCC Class B, UL
- Dimensions: (WxHxD):
- Enclosure:

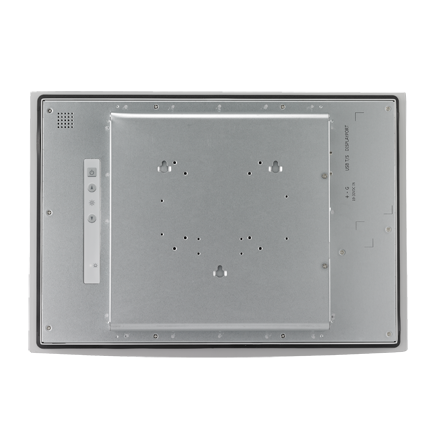

- Mounting: Panel, wall, desktop, VESA arm, or 19″ rackmount
- Power Input:
- Weight (Net): 6 kg (13.22 lbs)
- Display Type: XGA TFT LCD LED backlight
- Display Size: 15″
- Max. Resolution: 1024 x 768
- Max. Color: 16.2M
- Viewing Angle (H/V°): 140°(V),120°(H)
- Luminance (cd/m2): 350
- Backlight Life (hrs): 50,000
- Contrast Ratio: 700:1
- Sensor: AMT
- Driver Penmount: 6000
- Type: 5-wire Resistive
- Interface: USB
- Light Transmission: > 80%
- OS Support: Windows 2000, XP, Vista, 7, XPe, CE and Linux
- Touch Resolution: Linearity
- Operation Temperature: 0 ~ 50°C (32 ~ 122°F)
- Storage Temperature: -20 ~ 60°C (-4 ~ 140°F)
- Humidity (Storage): 10 ~ 90% non-condensing
- Waterproof: Front panel is IP65 compliant
- Vibration: 5 ~ 500 Hz, 1 Grms (Operating, Random)
5152G: 449.92 x 315.63 x 50.5 mm (17.71″ x 12.43″ x 2″)
Front panel: Aluminum and flat-sealed
Rear cover: Anti-rust coating
Phoenix Jack 18 ~ 32VDC input
Optional external 48 W power adapter, with AC 100 V
~240 V input and DC18-32 V @max3.3A output

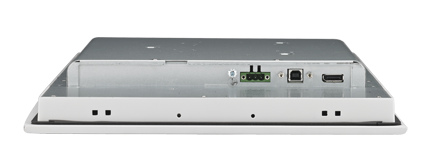

USB Front USB access for extension
Video Port Lockable display port
LCD Display
Touchscreen
Environment
