FPM-3191S 19″ SXGA Industrial Monitor with Resistive Touchscreen, Direct-VGA and DVI Ports
Call for Price

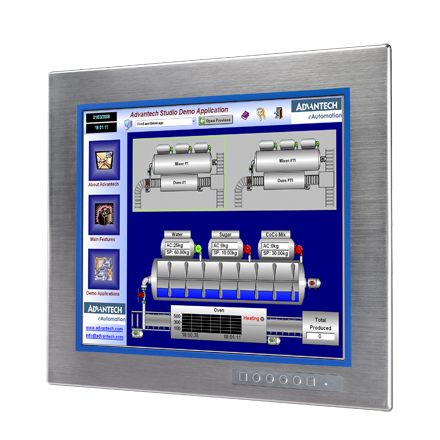

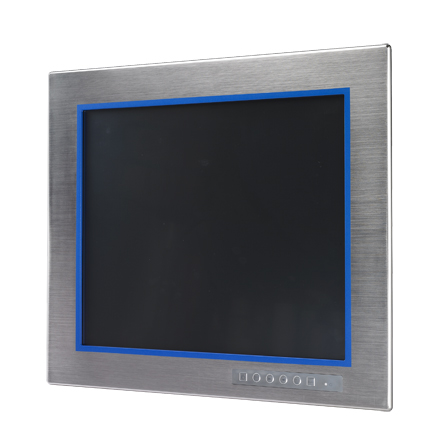

FPM-3191S is a 19″ color TFT LCD flat panel monitor specifically designed for industrial applications. With a viewing size as large as 19″, it presents an ample display area as well as vivid and sharp images for your HMI. It features Direct-VGA signal transmission and the onscreen display function makes it easy to adjust the images on the screen. The stainless steel chassis and the NEMA4/IP65 compliant stainless steel front panel enable installation in applications with water and dust.
Please click the link below to open the PDF datasheet
View Datasheet - 19″ SXGA TFT LCD with resolution up to 1280 x 1024
- Robust design with stainless steel chassis and front panel
- Anti-reflective screen with tempered glass

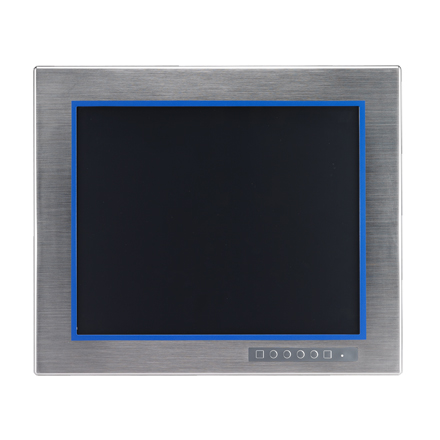

- OSD control pad on front panel
- Supports industrial 24-48 VDC power input (optional)
- Supports panel, wall, desktop, VESA arm mounting
- Front panel is NEMA4/IP65 compliant
- Front panel stainless steel with 316L level
- General
- Button Controls: OSD (Onscreen Display) control pad on front panel

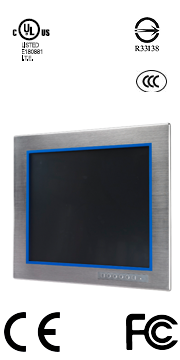

- Certification: BSMI, CCC, CE, FCC Class B, UL
- Dimension (W x H x D): 482 x 399.2 x 66 mm (18.98″ x 15.72″ x 2.6″)

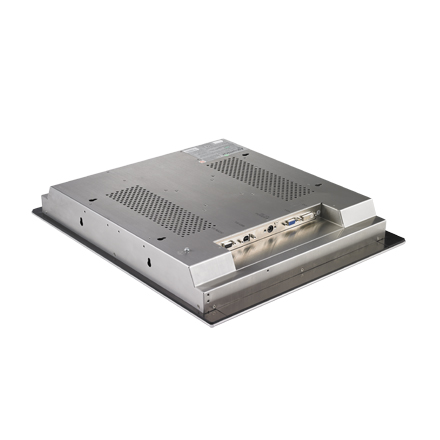

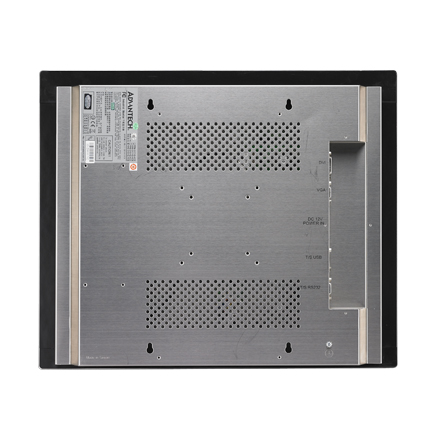

- Enclosure: Front panel: 316L level stainless steel Rear cover: Stainless steel chassis *Mounting holes on rear cover are designed for PWR-246E DC Source
- Mounting: Panel, wall, desktop, VESA arm
- Power Input: DC Jack – Optional external 57 W power adapter, with 100 ~ 240 VAC input and 12 VDC @ 4.75 A output
- Power Consumption: 35 W + 20%

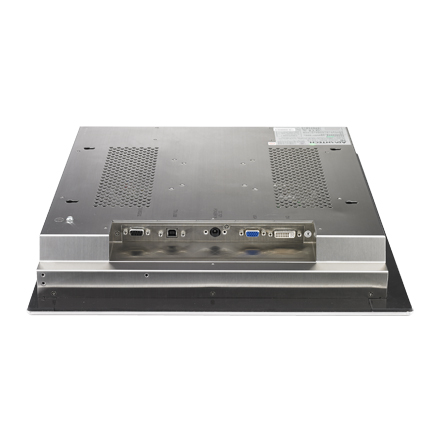

- Video Port: VGA & DVI-D Port
- Weight (Net): 15 kg (33.07 lbs)
- Display Type: SXGA TFT LCD (AUO)
- Display Size: 19″
- Max. Resolution: 1280 x 1024
- Max. Color: 16.2 M
- Viewing Angle (H/V°): 178/178
- Luminance (cd/m2): 300
- Backlight Life (hrs): 50,000
- Contrast: Ratio 1300 : 1
- Sensor: ELO
- Driver: ELOTOUCH
- Type: 5-wire Resistive
- Interface: RS-232 and USB
- Lifespan: 35 million touches at a single point
- Light Transmission: 80% ±5
- OS Support: Windows XP, Vista, 7, XPe, CE, Linux
- Power Consumption: +5 V @ 100 mA
- Touch Resolution: Linearity
- Operation Temperature: 0 ~ 50°C (32 ~ 122°F)
- Storage Temperature: -20 ~ 60°C (-4 ~ 140°F)
- Humidity (Storage): 10 ~ 90% non-condensing
- Waterproof Front: panel is NEMA4/IP65 compliant
- Vibration: 5 ~ 500 Hz, 1 Grms (Operating, Random)
LCD Display
Touchscreen (Optional)
Environment
