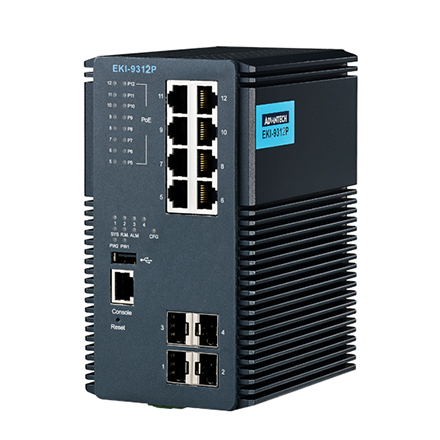

EKI-9312P Industrial-Class 12 Port Managed DIN Rail Switch Full Gigabit Switch with PoE/PoE+
£1,290.00 excl. vat
The EKI-9312P Gigabit managed PoE Ethernet switches come standard with 8 10/100/1000BaseT(X), 802.3af (PoE), and 802.3at (PoE ) compliant Ethernet ports, and 4 fiber optic Gigabit Ethernet ports. The EKI-9312P PoE Ethernet switches provide up to 30 watts of power per PoE port for heavy-duty, industrial PoE devices, such as weather-proof IP surveillance cameras, high performance wireless access points, and rugged IP phones. The EKI-9312P are equipped with 8 Gigabit Ethernet ports and up to 4 fiber optic ports, making them ideal for upgrading an existing network to Gigabit speed or building a new, full Gigabit network. The X-Ring with RSTP, STP and MSTP support, increases system reliability and the availability of your network. The EKI-9312P are designed especially for bandwidth demanding applications, such as video and process monitoring, intelligent transportation systems, all of which benefit from a scalable backbone construction.
Please click the link below to open the PDF datasheet
View Datasheet -
- All Gigabit connections support dual ring protection and non-blocking traffic forwarding
- X-Ring+: recovery time within 20ms for 250 node connections
- IEEE 802.3at PoE+ to supply 30W power
- IEEE 802.3af PoE to supply 15.4 power
- IEEE 802.3af/802.3at per port with system PoE power management
- Dual power input, dual image for system reliability
- Operating temperature: -40 ~ 75° C
Interface
-
- I/O Port: 8 x 10/100/1000Base-T/TX RJ-45 4 x 1000BASE-X
SFP
-
- Console port: RJ-45
- F/W backup port: USB
- Power Connector: 6-pin screw Terminal Block (including relay)
Physical
-
- Enclosure: Aluminum Shell
- Protection: Class IP 30
- Installation: DIN Rail
- Dimensions (W x H x D): 86 x 165 x 125 (mm)
LED Display
-
- System LED: PWR1, PWR2, SYS, CFG, Alarm and R.M.
- Port LED: Link / Speed / Activity / PoE
Environment
-
- Operating Temperature: -40 ~ 75°C
- Storage Temperature: -40 ~ 85°C
- Ambient Relative: 10 ~ 95% (non-condensing) Humidity
- Humidity: 10 ~ 95% (non-condensing)
Power
-
- Power Consumption: ~ 21.82 Watts (System)
EKI-9312P: ~203.42 Watts
-
- Power Input: 48 (46 to 57 V) VDC dual inputs
(> 53 VDC for PoE+ output recommended)
Certification
-
- EMI: CE, FCC Class A
- Safety: UL60950 C1D2
- EMC: EN61000-6-4; EN61000-6-2; EN61000-4-2 (ESD)
Level 4 EN61000-4-3 (RS) Level 3; EN61000-4-4
(EFT) Level 4; EN50121-4; EN61000-4-5 (Surge)
Level 4; EN61000-4-6 (CS) Level 3 EN61000-4-8
(Magnetic Field) Level 4
-
- Shock: IEC 60068-2-27
- Freefall: IEC 60068-2-32
- Vibration: IEC 60068-2-6
- Patent http://www.advantech.com/legal/patent
L2 Features
-
- L2 MAC Address: 16K
- Jumbo Frame: 12KB
- VLAN Group: 4K (VLAN ID 1~4094)
- VLAN Arrange: Mac based VLAN, Protocol based VLAN, IP subnet
based VLAN, Port based VLAN, Q-in-Q (VLAN
Stacking), GVRP
-
- Port Mirroring: Per port, Multi-source port
- IP Multicast: IGMP Snooping v1/v2/v3, MLD Snooping, IGMP
Immediate leave
-
- Storm Control: Broadcast, Multicast, Unknown unicast
- Spanning Tree: IEEE 802.1D-STP, IEEE 802.1s-MSTP, IEEE
802.1w-RSTP, X-Ring Pro
