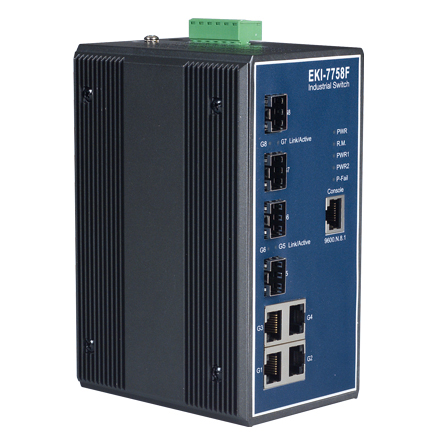

EKI-7758F 8-port Gigabit Ethernet Switch
£509.00 excl. vat
For many industrial automation applications, redundancy helps increase the reliability of your system. To create reliability in your network, the EKI-7758F comes equipped with a proprietary redundant network protocol — X-Ring that was developed by Advantech, which provides users with an easy way to establish a redundant Ethernet network with ultra high-speed recovery time less than 10 ms. Furthermore, EKI-7758F also supports many advanced network standards to optimize network performance, ease maintenance issues, and secure network safety.
Out of stock
Please click the link below to open the PDF datasheet
View Datasheet - All Gigabit Ethernet ports for 4 Copper and 4 SFP
- SFP sockets for easy and flexible fiber expansion
- Redundancy: Gigabit X-Ring (ultra high-speed recovery time < 10ms), RSTP/STP (802.1w/1D)
- Management: Web, Telnet, Serial Console, Windows Utility, SNMP
- Control: VLAN/GVRP, QoS, IGMP Snooping/Query, LACP, Rate Limit
- Security: IP/MAC and port binding, DHCP Server, IP access list, 802.1X
- Diagnostic: Port statistic, Port Mirroring, RMON, Trap, E-Mail Alert, Syslog
- Dual 12 ~ 48 VDC power input and 1 Relay Output
- Robust mechanism and special heat spreader design
- Communications
- Standard: IEEE 802.3, 802.3u, 802.3x, 802.3z, 802.1D, 802.1w,
- LAN: 10/100/1000Base-TX, Optional 100Base-FX,
- Transmission Distance: Ethernet : Up to 100m (4- wire Cat.5e, Cat.6 RJ-45
- Transmission Speed: Gigabit Copper:10/100/1000 Mbps, Auto-Negotiation
- Connectors: 4 x RJ-45 (Ethernet)
- LED Indicators: System: PWR, R.M., PWR1, PWR2, P-Fail
- Console: RS-232 (RJ-45)
- Configuration: Web browser, Telnet, Serial consloe, Windows
- VLAN: IEEE 802.1Q, GVRP, Port-based VLAN
- Redundancy: ADVANTECH X-Ring (Recovery time < 10ms at 30pcs
- Security: IP Access security, port security, DHCP Server, Port
- Traffic Control: IGMP Snooping/Query for multicast group
- Diagnostics: Port Mirroring, Real-time traffic statistic, MAC Address
- Enclosure: IP30, metal shell with solid mounting kits
- Dimensions (W x H x D): 79 x 152 x 105 mm
- Mounting: DIN-rail, wall
- Power Consumption: Max. 17 W
- Power Input: 2 x Unregulated 12~ 48 VDC
- Fault Output: 1 Relay Output
- ESD (Ethernet): 4,000 VDC
- Surge (EFT for power): 3,000 VDC
- Power Reverse: Present
- Overload: 3.5 A @ 12 VDC (Fuse)
- Operating Temperature: -10 ~ 60° C (14 ~ 140° F)
- Storage Temperature: -40 ~ 85° C (-40 ~ 185° F)
- Operating Humidity: 5 ~ 95% (non-condensing)
- Storage Humidity: 0 ~ 95% (non-condensing)
- MTBF: 289,777 hours
- Safety: UL 60950-1, CAN/CSA-C22.2 No.60950
- EMC: EU: EN55011, EN61000-6-4, EN55022 Class A,
- Shock: IEC60068-2-27
- Freefall: IEC60068-2-32
- Vibration: IEC60068-2-6
802.1p, 802.1Q, 802.1X, 802.3ad, 802.3ab
1000Base-SX/LX/LHX/XD/ZX/EZX
cable suggested for Gigabit port)
SFP: Up to 110 km (depends on SFP)
SFP: Up to 1000 Mbps
Interface
4 x SFP (mini-GBIC) ports
6-pin removable screw terminal (Power&Relay)
Gigabit Copper: Link/Activity, Speed
SFP: Link/Activity
Network Management
Utility, TFTP, SNMPv1/v2c/v3, Port Speed/Duplex
Configuration
full loading ring structure), Dual Homing, Couple Ring,
802.1w/D RSTP/STP
and IP Binding, 802.1X Port Access Control
management Port Trunking, Static/802.3ad LACP
Rate limit and storm control
IEEE 802.1p QoS CoS/TOS/DSCP priority queuing
IEEE 802.3x flow control
Table, SNTP, Syslog, E-Mail Alert, SNMP Trap, RMON
Mechanism
Power
Protection
Environment
Wide temp. model: -40 ~ 75° C (-40 ~ 167° F)
Certifications
EN61000-3-2/3, EN55024,
IEC61000-4-2/3/4/5/6/8, EN61000-6-2
