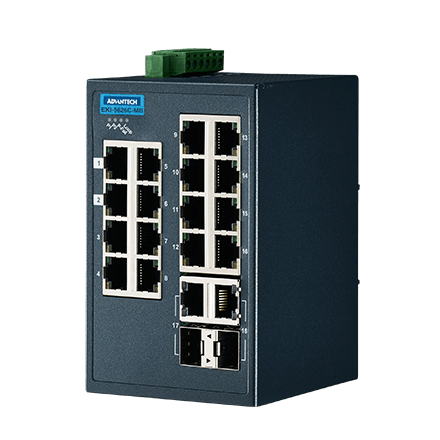

EKI-5626C-MB 16FE+2G Combo Managed Ethernet Switch support Modbus/TCP
£556.00 excl. vat
The EKI-5626C/CI-MB are a new generation of entry-level managed switch products. They support basic Layer 2 managed function such as Ring, SNMP, IGMP etc. Besides, they support Modbus/TCP and can easily integrate with SCADA. The devices come with a compact metal housing that is IP30 rated to protect against dusty industrial environments. The wide power input power (8.4 to 52.8 VDC) is dedicated to operating in areas of unstable power and rugged environments.
Please click the link below to open the PDF datasheet
View Datasheet -
- 16 Fast Ethernet ports + 2 Gigabit Copper/SFP combo ports (EKI-5626C/CI-MB)
- Entry-Level Managed Switch
- IXM function enables fast deployment
- Management: SNMP v1/v2c/v3, WEB, Standard MIB, Private MIB
Communications
-
- Standard: IEEE 802.3, 802.3u, 802.3x, 802.1D,
802.1w,802.1p, 802.1Q, 802.1X,
802.3AD,802.3az
-
- LAN: 10/100Base-T (X),
- Transmission Distance: Ethernet: UP to 100m (4-wire Cat.5e, Cat.6
RJ-45 cable suggested for Gigabit port)
SFP: UP to 110km (depends on SFP)
-
- Transmission Speed Ethernet: Ethernet: 10/100Mbps Auto-Negotiation
Gigabit Copper: 10/100/1000Mbps,
Auto-Negotiation
Gigabit Fiber: UP to 1000Mbps
Interface
-
- I/O Port: EKI-5626C/CI-MB: 16 x RJ-45 + 2 x RJ-45/SFP
combo ports
-
- Power Connector: 6-pin screw Terminal Block (including relay)
Physical
-
- Enclosure: Metal Shell
- Protection: Class IP 30
- Installation: DIN-Rail
- Dimensions (W x H x D): 74 x 120 x 84 mm
LED Display
-
- System LED: PWR1, PWR2, P-Fail, Loop detection
- Port LED: Link / Speed / Activity
Environment
-
- Operating Temperature: EKI-5626C-MB:
-10 ~ 60°C (14 ~ 140°F)
-
- Storage Temperature: -40 ~ 85°C
- Ambient Relative Humidity: 10 ~ 95% (non-condensing)
- Humidity: 10 ~ 95% (non-condensing)
- MTBF: EKI-5626C/CI-MB: 2,825,281 hours
Power
-
- Power Consumption: EKI-5626C/CI-MB: Max 8.2W
- Power Input: 12 ~ 48 VDC (8.4~52.8 VDC), redundant dual power input
- Fault Output: 1 Relay Output
Certification
-
- EMI: CE, FCC Class A
- Safety: UL508, Class 1 Division 2, ATEX
- EMC: EN 61000-4-2; EN 61000-4-3; EN 61000-4-4;
EN 61000-4-5; EN 61000-4-6; EN 61000-4-8
-
- Shock: IEC 60068-2-27
- Freefall: IEC 60068-2-32
- Vibration: IEC 60068-2-6
L2 Features
-
- L2 MAC Address: 8K
- Jumbo Frame: 9216 Bytes
- VLAN Group: 256 (VLAN ID 1~4094)
- VLAN Arrange: Port based VLAN, GVRP
- Port Mirroring: Per port, Multi-source port,
- IP Multicast: IGMP Snooping v1/v2/v3, MLD
Snooping, IGMP Immediate leave
-
- Storm Control: Broadcast, Multicast, Unknown unicast
- Redundancy: IEEE 802.1D-STP, IEEE 802.1s-MSTP, IEEE 802.1w-RSTP,
X-Ring, with ultra high-speed recovery time less than
20ms
QoS
-
- Priority Queue: Scheduling WRR (Weighted Round Robin), SP (Strict Scheduling
Priority) Hybrid Priority
- Class of Service: IEEE 802.1p Based CoS, IP TOS, DSCP based CoS
- Rate Limiting: Ingress Rate limit, Egress Rate limit
- Link Aggregation: IEEE 802.3ad Dynamic Port Trunking, Static Port Trunking
Security
- Port Security: Static, Dynamic, MAC address filtering
- Authentication: 802.1x (Port-Based, MD5/TLS/TTLS/PEAP Encryption)
