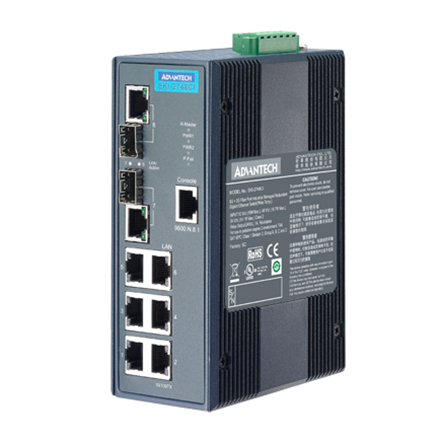

EKI-2748CI 6GE+2G Combo Managed Ethernet Switch, -40~75°C
£788.00 excl. vat
EKI-2748FI and EKI-2748CI supports Gigabit with Ethernet and SFP/Combo ports. To enhance reliability in industrial communication network, it equipped with Advantech owned redundant network protocol — X-Ring Pro, which provides users with an easy way to establish a redundant Ethernet network with ultra high-speed recovery time less than 20 ms. Furthermore, EKI-2748FI and EKI-2748CI also support advanced network standards to optimize network performance, reduce maintenance cost, and secure network safety.
Please click the link below to open the PDF datasheet
View Datasheet -
- All Gigabit Ethernet ports for Copper and SFP/Combo interfaces
- SFP sockets for easy and flexible fiber expansion
- Redundancy: Gigabit X-Ring Pro (ultra high-speed recovery time < 20 ms), RSTP/STP (802.1w/1D)
- Management: Web, Telnet, Serial Console, SNMP v1/v2c/v3
- Control: VLAN/GVRP, QoS, IGMP Snooping/Query, LACP, Rate Limit
- Security: IP/MAC and port binding, DHCP Server, IP access list, 802.1X, SSL
- Diagnostic: Port statistic, Port Mirroring, RMON, Trap, Email Alert, Syslog
- Dual 12 ~ 48 VDC power input and 1 relay output
Communications
-
- Standard: IEEE 802.3, 802.3u, 802.3x, 802.3z, 802.1d, 802.1w,
802.1p, 802.1Q, 802.1X, 802.3ad, 802.3ab
-
- LAN: 10/100/1000 Base-T(X), Optional 100Base-FX,
1000Base-SX/LX/LHX/XD/ZX/EZX
-
- Transmission Speed: Gigabit Copper:10/100/1000 Mbps, Auto-Negotiation
SFP: Up to 1000 Mbps
Interface
-
- Connectors: RJ45 x 4; SFP Combo: 100/1000 SFP *4 (EKI-2748FI)
RJ45 x 6; SFP Combo: RJ45 x 2;
100/1000 Mini-GBIC x 2 (EKI-2748CI)
Console port : RJ45 x 1
-
- LED Indicators: System: PWR1, PWR2, P-Fail, R-Master
Gigabit Copper: Link/Activity, Speed
SFP: Link/Activity
-
- Console: RS-232 (RJ45)
Network Management
-
- Configuration: SNMP v1/v2c/v3, Web, Telnet, CLI, IPv6
- VLAN: IEEE 802.1Q, GVRP, Port-based VLAN
- Redundancy: Advantech X-Ring Pro (Recovery time < 20 ms at 250
pcs full loading ring structure), Dual Homing, Dual
Ring, Couple Ring, IEEE 802.1w/d RSTP/STP
-
- Security: IP Access security, port security, DHCP Server, Port
and IP Binding, 802.1X Port Access Control, SSL
-
- Traffic Control: IGMP Snooping/Query for multicast group
management, Port Trunking, Static/802.3ad, LACP Rate
limit and storm control, IEEE 802.1p QoS CoS/TOS/
DSCP priority queuing, IEEE 802.3x flow control
-
- Diagnostics: Port Mirroring, Real-time traffic statistic, MAC Address
Table, SNTP, Syslog, E-Mail Alert, SNMP Trap, RMON,
DMI
Mechanism
-
- Enclosure: IP30, metal shell with solid mounting kits
- Dimensions (W x H x D): 59.6 x 152 x 105 mm (2.35″ x 5.98″ x 4.13″)
- Mounting: DIN-rail, Wall
Power
-
- Power Consumption: Max. 15.12 W (EKI-2748CI)
- Power Input: 12 ~ 48 VDC, 24 VAC (18 ~ 30 VAC)
- Fault Output: 1 Relay Output
Protection
-
- Power Reverse: Present
- Overload Current: Present
Environment
-
- Operating Temperature: -40 ~ 75°C (-40 ~ 167°F)
- Storage Temperature: -40 ~ 85°C (-40 ~ 185°F)
- Operating Humidity: 5 ~ 95% (non-condensing)
- Storage Humidity: 5 ~ 95% (non-condensing)
- MTBF: 248,507 hours (EKI-2748CI)
Certification
-
- Safety: UL 508
Class I, Division 2
-
- EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A
- EMS: EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-4-8
-
- Shock: IEC 60068-2-27
- Freefall: IEC 60068-2-32
- Vibration: IEC 60068-2-6
