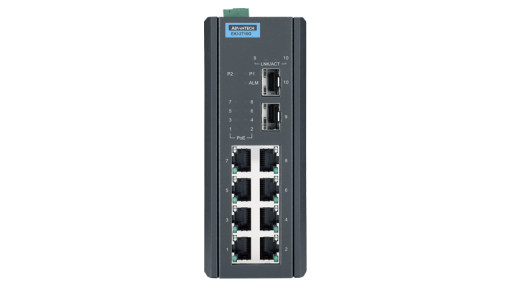

EKI-2710G-2FPI 8GE + 2G SFP Port Gigabit Unmanaged Industrial PoE Ethernet Switch
£359.00 excl. vat
The EKI-2708G and EKI-2710G PoE switch are unmanaged Ethernet switches supporting 8 ports PoE+ (Power over Ethernet) and compliant with IEEE 802.3at/af standards. Provides up to 30 watts of power per port and fulfill the power budget of max. 240 watts on system with the power input from 12~48VDC. The switch provides a relay output for an event alarm which activate the alarm to notify administrators. Robust design for harsh environment, din rail mounting and fast startup with plug and work.The EKI-2708G and EKI-2710G support IEEE 802.3/802.3u/802.3z/802.3ab/802.3x with 10/100/1000 Mbps, full/half-duplex, auto-negotiation and MDI/MDI-X auto-sensing to
provide an economical solution for your industrial Ethernet network.
Please click the link below to open the PDF datasheet
View Datasheet - 8 x Gigabit Ethernet ports plus 2 Gigabit SFP ports
- Support 8 x IEEE 802.3at/af PoE ports for PD demands
- Up to 30W output per PoE port
- Supports jumbo frame transmission up to 9k bytes
- DIN-rail with IP30 metal mechanism
- 12 ~ 48 VDC redundant dual power input and 1 relay output
- Wide operating temperature range of -40 ~ 75°C
See Datasheet
