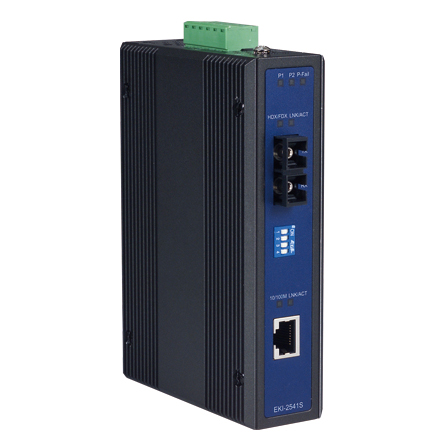

EKI-2541SI Hardened Media Converter, 100Mbps, Single mode 1310nm, 30km, SC
£199.00 excl. vat
EKI-2541M/2541S is designed to convert Ethernet networks to fiber networks by transparently converting Ethernet signals to optic signals. The advantages of fiber optics are wide bandwidth, EMI immunity and long-distance transmissions.Therefore, EKI-2541M/2541S is an ideal solution for “fiber to building” applications at central offices or local sites. EKI-2541M/2541S supports MDI/MDIX auto detection, so you don’t need to use crossover wires. Furthermore, the EKI-2541M/2541S can work normally from -10 ~ 60°C and accepts a wide voltage range from +12 ~ 48 VDC. Besides, it also provides 3,000 VDC surge (EFT) protection against over-voltage, so it is suitable for harsh operating environments.
Please click the link below to open the PDF datasheet
View Datasheet -
- Provides 1 x 10/100 Mbps Ethernet port with RJ45 connector
- Provides 1 x 100 Mbps multi-mode/single-mode SC type fiber port
- Provides internal jumper for Link Fault Pass-through (LFP) setting
- Supports full/half duplex flow control
- Supports store and forward transmission
- Supports auto-negotiation
- Supports MDI/MDI-X auto crossover
- Supports redundant +12-48 VDC power input
- Provides flexible mounting: DIN-rail & Panel Mounting
- Supports wide Operating Temperature from -40 ~ 75° C
See Datasheet
