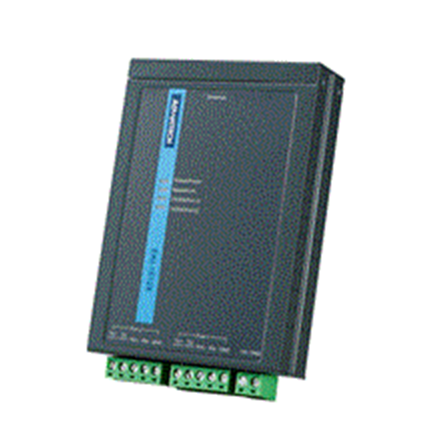

EKI-1512X 2-port RS-422/485 Serial Device Server
£134.00 excl. vat
The EKI-1511X and EKI-1512X are serial device servers which connect RS-422/485 serial devices, such as PLC, meters, and sensors to an IP-based Ethernet LAN. They allow nearly any device with serial ports to connect and share an Ethernet network. EKI-1511X and EKI-1512X provide various operation modes: COM port redirection (Virtual COM port), TCP server, TCP Client, and UDP mode. With COM port redirection mode, standard serial operation calls are transparently redirected to the EKI-1511X and EKI-1512X, guaranteeing compatibility with legacy serial devices and enabling backward compatibility with existing software. With TCP server, TCP client and UDP modes, the EKI-1511X and EKI-1512X ensure the compatibility of network software that uses a standard network API. Moreover you can make serial devices communicate with other devices peer-to-peer, without any intermediate host PCs and software programming. With a compact and slim IP30 metal case, EKI-1511X and EKI-1512X can be installed into a field cabinet easily. EKI-1511X and EKI-1512X provide terminal block connector for RS-422/485 that user can setup the physical wiring without any manually made connector. And with EMC level 3 protection, EKI-1511X and EKI-1512X can work in harsher working environments than other serial device servers.
Please click the link below to open the PDF datasheet
View Datasheet -
- Compact, slim designed IP30 metal case
- EMC Level 3 protection
- Provides COM port redirection (Virtual COM), TCP and UDP operation modes
- Supports up to 921.6 kbps, and any baud rate setting
- Configuration utility supports 32-bit/64-bit Windows XP/7/8/8.1, Windows Server 2003/2008/2008 R2/2012/2012 R2, and Linux
- Automatic RS-485 data flow control
- Terminal block for easy wiring
Ethernet Communications
-
- Compatibility: IEEE 802.3, IEEE 802.3u
- Speed: 10/100 Mbps, auto-sensing
- No. of Ports: 1
- Port Connector: RJ45
- Protection: Built-in 1.5 KV magnetic isolation
Serial Communications
-
- Port Type: RS-422/485, software selectable
- No. of Ports: EKI-1512X: 2
- Port Connector: Terminal Block
- Data Bits: 5, 6, 7, 8
- Stop Bits: 1, 1.5, 2
- Parity: None, Odd, Even, Space, Mark
- Flow Control: XON/XOFF, RTS/CTS
- Baud Rate: 50 bps ~ 921.6 kbps, any baud rate setting
- Serial Signals: RS-422: TxD+, TxD-, RxD+, RxD-, GND
RS-485: Data+, Data-, GND
-
- Protection: Built-in 15 KV ESD for all signals
Software
-
- Driver Support: 32-bit/64-bit Windows XP/7/8/8.1, Windows Server
2003/2008/2008 R2/2012/2012 R2 and Linux
-
- Operation Modes: COM port redirection mode (Virtual COM)
TCP/UDP server (polling) mode
TCP/UDP client (event handling) mode
Pair connection (peer to peer) mode
-
- Configuration: Windows utility, Web Browser
Mechanics
-
- Dimensions (W x H x D): 85 x 120 x 26 mm (3.35″ x 4.72″ x 1.02″)
- Enclosure: Metal with solid mounting hardware
- Mounting: Wall
- Weight: EKI-1512X: 275g
General
-
- LED Indicators: System: Power, System Status
LAN: Speed, Link/Active
Serial: Tx, Rx
Power Requirements
-
- Input: 10 ~ 30 VDC
- Connector: Terminal block
- Consumption: EKI-1512X: 2.5 W
Environment
-
- Operating Temperature: -10 ~ 60°C (14 ~ 140°F)
- Storage Temperature: -40 ~ 85°C (-40 ~ 185°F)
- Operating Humidity: 10 ~ 95% RH
Regulatory Approvals
-
- EMC: CE, FCC Part 15 Subpart B (Class A)
