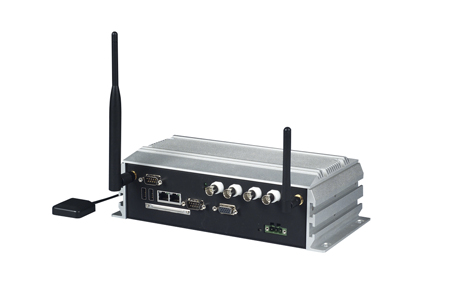

ARK-VH200 Intel® Atom™ Dual Core D510 In-Vehicle DVR with 4 BNC Fanless Box PC

ARK-VH200 Intel® Atom™ Dual Core D510 In-Vehicle DVR with 4 BNC Fanless Box PC

Name: ARK-VH200 Intel® Atom™ Dual Core D510 In-Vehicle DVR with 4 BNC Fanless Box PC
SKU: ARK-VH200
Availability: OutOfStock

£0.00 excl. vat

Intel® Atom™ Dual Core D510 In-Vehicle DVR with 4 BNC Fanless Box PC

Out of stock

SKU: ARK-VH200 Category: Embedded Box PCs

Please click the link below to open the PDF datasheet

View Datasheet

Intel® Atom™ D510 processor at 1.66 GHz
120/100 FPS D1 resolution video preview and recording
Optional add-on Mini PCIe card for wireless applications, e.g. WLAN or 3.5G

module

eSATA for large capacity external HDD
In-vehicle power design and IGN support, compliant with ISO-7637-2
4 x USB 2.0 ports (2 x USB ports are lockable for secure connection)
Compliant with EN50155 for rail transportation applications
IP40 sealed design
Supports SUSIAccess and Embedded Software APIs

Processor System

CPU: Intel Atom Dual Core D510
Frequency: 1.66 GHz
L2 Cache: 1 MB
BIOS: AMI 16 Mbit Flash BIOS

Memory

Technology: DDR2 667 MHz
Max. Capacity: 2 GB
Socket: 1 x 200-pin SO-DIMM

Graphics

Chipset: Embedded Gen 3.5G+GFX Core, Intel Gen 3.5 DX9, MPEG2 Decode in HW
Interface: CRT Interface

Ethernet

LAN 1: 10/100/1000 Mbps Intel 82567V GbE, support Wake On LAN
LAN 2: 10/100/1000 Mbps Intel 82583V GbE, support Wake On LAN

Audio

Interface: Line-out, Mic-in

IO interface

Serial Interface: 2 x RS-232 port, 1 x RS-232/422/485 (Optional)
USB Interface: 4 x USB ports, Compliant with USB 2.0 (2 x USB ports are lockable)

Other

Digital I/O: Supports up to 4-bit DIO
GPS: On-board GPS
eSATA: 1 x eSATA
Watchdog timer: 255-level timer interval, setup by software

Expansion

Mini PCIe: 2 x Mini PCIe
SIM Socket:1 x SIM Socket

Video Recording

Video Compression: H/W H.264
Video Input: 4 x Ch Video Inputs, BNC
Video Resolution: Preview@D1; Record@D1+CIF (dual stream)
Video Frame: Total 120/100 FPS (NTSC/PAL) @ D1 resolution
SDK Support: VC++/.NET/VB/V4L2

Storage

HDD Supports: 1 x SATA 2.5″ HDD Bay (9.5 mm height only)
SSD Supports: CompactFlash socket for type I/II CompactFlash disk

Software Support

Microsoft Windows: WES2009, WES7
Linux: Fedora v10.04.1

Power Requirement

Power Type: AT/ATX
Power Input Voltage: PC Mode: 9 VDC ~ 32 VDC

VH Mode: 12 V battery (11 VDC ~ 16 VDC), 24V battery (22 VDC ~ 32 VDC)

Ignition: Supports ignition function
PIC Firmware: Battery status check, and Off-delay support
Minimum Power Inputs: 36W
Power Adapter: AC to DC, DC19V/3.42A, 65W (Optional)

Power Consumption

Typical: 19 W
Max.: 22 W

Mechanical

Construction: Aluminum housing
Mounting: Desk/wall-mounting
Dimensions (W x H x D): 260 mm x 77 mm x 134 mm
Weight: 3 kg (6.6 lb)

Environment

Operating Temperature: With extend temperature peripherals CompactFlash disk: -20 ~ 60° C (-4 ~ 140° F)

With extend temperature peripherals 2.5-inch hard disk 0 to 45° C (32 ~ 113° F) , with air flow

Storage Temperature: -40 ~ 85° C (-40 ~ 185° F)
Relative Humidity: 95% @ 40° C (non-condensing)
Vibration Loading During Operation: With CompactFlash disk: 5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 Oct./min, 1 hr/axis.

With 2.5-inch hard disk: 1 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 Oct./min, 1 hr/axis.

Shock During Operation: With CompactFlash disk: 50 G, IEC 60068-2-27, half sine, 11 ms duration

With hard disk: 20 G, IEC 60068-2-27, half sine, 11 ms duration

EMC: CE/FCC Class A
Safety Certifications: CE/FCC, CCC, UL/cUL
In-Vehicle Certification: E-Mark E13
