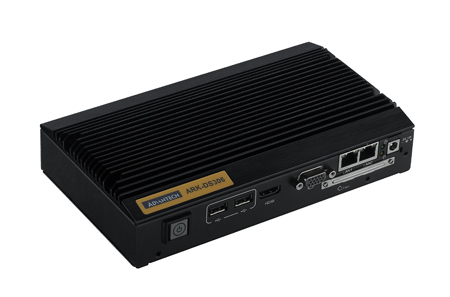

ARK-DS306 AMD G-Series Digital Signage platform
£371.00 excl. vat
The ARK-DS306 is powered by an AMD Embedded G-Series APU with the AMD A50M Fusion Controller Hub system chipset, and provides a power-efficient platform for high-performance multi-media content delivery. Based on this new APU platform, ARK-DS306 offers an outstanding visual experience with full multi-media capability, while maintaining very low power consumption. It is an excellent high performance solution for versatile digital signage applications.
Please click the link below to open the PDF datasheet
View Datasheet - AMD G-series T40N (DC 1.0 GHz) + A50M FCH, 1 x DDR3 SODIMM,
- DirectX® 11, 2D/3D acceleration, dual display: HDMI, VGA
- Built-in Mini-PCIe slot for easy expansion
- Supports 2 Gigabit LAN connectors, HD audio, 2 x COM, 2 x USB I/O
- Storage: 1 x 2.5″ SATA HDD drive bay, 1 x CFast slot
- Supports VESA mounting (Optional)
- Supports WebAccess/IMM for intuitive signage content managing, remote
supports up to 4 GB
interfaces
monitoring and control
- Processor System
- CPU: AMD G-Series, T40N 1.0GHz dual core
- System Chipset: AMD G-Series + A50M FCH
- BIOS: AMI EFI 16 Mbit
- Technology: 1 x DDR3 204-pin SODIMM
- Max. Capacity: Max. up to 4 GB
- Chipset: AMD G-Series
- Graphic Engine: DirectX 11 graphics with UVD 3.0
- Output: HDMI x 1, VGA x 1
- Resolution: VGA: 1920 x 1080 at 60 Hz
- Dual display: Yes
- SATA: 1 x 2.5-inch SATA II HDD/SSD (support 9.5 mm / 7 mm height)
- Cfast (socket): 1
- Interface: 2 Gigabit LAN Controller Realtek RTL8111E-VB-GR 10/100/1000Mbps
- Connector: 2 x RJ-45
- Chipset: Realtek ALC892, High Definition Audio (HD)
- HDMI: 1
- VGA: 1
- LAN: 2 (RJ-45)
- USB: 2 (USB 2.0 compliant)
- Audio: 3 audio phone jacks for Line-in, Line-out, Mic-in
- Serial: 2 x COM (RS-232)
- Mini-PCIe (Internal): 1 (for optional expansion modules)
- Power input: 1 (DC-in Jack)
- Management: ACPI 2.0
- Power Consumption: Typical: 9 W (w/o expansion)
- Input Voltage: 12V DC-in (ATX/AT mode, default ATX)
- Others: Supports boot on power back and schedule boot up function
- Output: Interrupt, system reset
- Interval: 255 levels timer interval, programmable by software
- Mounting: Easy mounting kits for LCD or Plasma
- Dimensions (W x H x D): 204 x 44.2 x 118.2 mm
- Weight: 1.1 kg
- Operating Temperature: Operating: 0 ~ 40° C (32 ~ 104° F) (w / HDD); 0 ~ 50° C (32 ~ 122° F) (w / CFast Card)
- Relative Humidity: 95% @ 40° C (non-condensing), Operating
- Operating System: Supports Microsoft Windows 8, Windows 7, XP with SP3, XP Embedded
- EWF & WDT SDK: EWF and WDT libraries for signage stability design in XPE
- Linux: supported by project
- Electromagnetic: CE/FCC Class A, CCC, BSMI
- Safety: UL, CCC, BSMI
Memory
Display
2D Acceleration, 3D Acceleration, Motion Video Acceleration, Supports DVD, Blu-ray*
HDMI: Supports 1920 x 1080p at 60 Hz, 36 bpp, Supports HDMI v1.3, using TMDS data encoding
Storage
Ethernet
Audio
I/O Interface
Power Requirement
Max.: 13W (w/o expansion)
Watchdog Timer
Physical Characteristics
Environment
Software Development Kit
Certifications
