ARK-DS262 3rd Generation Intel® Core™ i7 OPS Digital Signage Player
£0.00 excl. vat

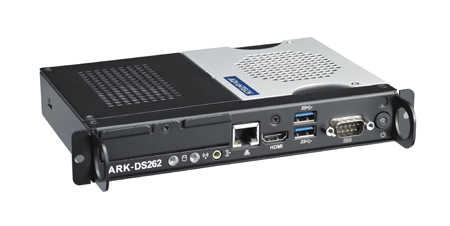

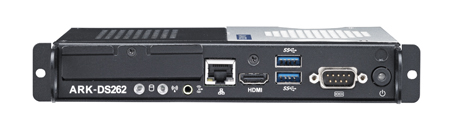

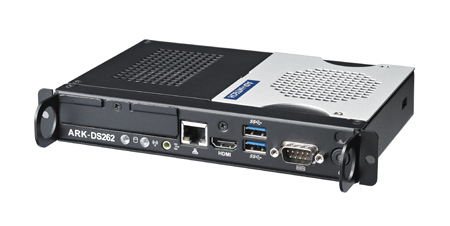

The very compact (200 x 119 x 30 mm) ARK-DS262 digital signage player is an Intel® OPS (Open Pluggable Specification) digital signage platform that helps standardize the design and development of media player and display. Development, installation, management, maintenance and upgrade are all easy. The ARK-DS262 is powered by a 3rd generation Intel® Core™ i7/i3 with built-in graphics, which enables it to generate compelling video and 3D animation. ARK-DS262 also supports 1x GigaLAN, 1x COM ports, and 2x USB3.0, giving a great selection of data communications for display applications. The entire design makes digital signage applications more intelligent and connected.
Please click the link below to open the PDF datasheet
View Datasheet - 3rd generation Intel® Core™ i7 processor-based platform
- Design compliant with OPS (Open Pluggable Standardization)

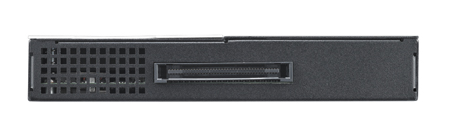

- Supports HDMI, eDP, UART, USB3.0/2.0 via JAE 80-pin connector
- Supports PCIe x 4, USB3.0/2.0, SATA, LPC & SMB optional 2nd JAE 60-pin
- Slot-in integration, easy maintenance
- Design compliant with Energy Star 5.0
- Supports iManager, SUSIAccess and Embedded Software APIs
connector
- Processor System
- CPU :3rd generation Intel Core i7-3555LE 2.5 GHz
- System Chipset: Intel QM77 chipset
- BIOS: AMI 64 MB SPI BIOS
- Technology: 2 x DDR3 204-pin SO-DIMM
- Max. Capacity: Max. up to 16 GB (8 GB per SO-DIMM)
- Chipset: Integrated graphics built in Processor
- Resolution (Chipset support): HDMI/eDP: up to 1920 x 1080 (via OPS interconnection)
- Output: HDMI x 1
- SATA: Interface Support 2.5″ SATA HDD (support max 9.5 mm height only)/SSD/SATA Slim Card
- Interface: Gigabit LAN Controller Intel 82579LM
- *JAE Connector: 1 (JAE TX25 80-pin)/ 2 (JAE TX25 80-pin + JAE TX25 60-pin by optional )
- HDMI: 1
- LAN: 1 (RJ-45)
- USB: 2 (USB 3.0 compliant)
- Audio: 1 x Line-out (supports Jack Sense via OS setting)
- Serial: 1 x COM (RS-232)
- Mini-PCIe (Internal): 1
- Management: ACPI 3.0
- Power Consumption: Average 19 W
- Input Voltage: 12 V-24 V DC-in (via OPS interconnection)
- Output: Interrupt, system reset
- Interval: 255-level timer interval, setup by software
- Dimensions (W x H x D): 200 x 30 x 119 mm (OPS compliant)
- Weight: 1.5 kg (3.3 lb)
- 0 ~ 40° C (32 ~ 104° F) (w / HDD); 0 ~ 50° C (32 ~ 122° F) (w / SSD)
- Relative Humidity: 95% @ 40° C (non-condensing), operating
- Vibration Resistance: 0.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 Oct./min, 1 hr/axis.
- Operating System: Supports Microsoft Win7, WES7E, XP Embedded
- Linux: Fedora 14
- Electromagnetic: CE/FCC Class B, CCC, BSMI, C-Tick
- Safety: UL, CB
3rd generation Intel Core i3-3217UE 1.6 GHZ
Memory
Display
Storage
Ethernet
I/O Interface
Power Requirement
Watchdog Timer
Physical Characteristics
Environment
Software Development Kit
Certification
