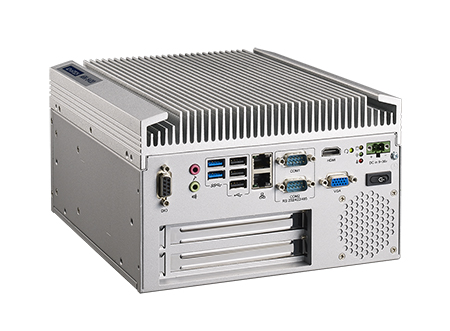

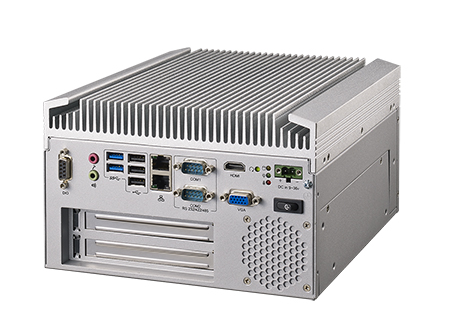

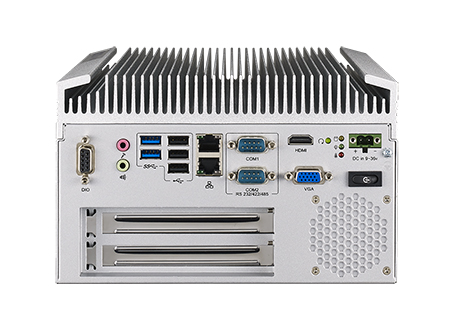

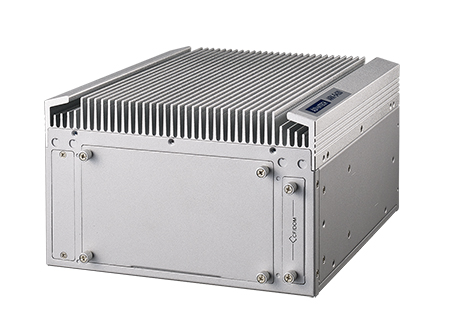

ARK-5420 Intel® 3rd Generation Core™ i Processor Fanless System with PCIEx4 & PCI Slot
£1,029.00 excl. vat
The ARK-5420 is a fanless, compact embedded industrial computer chassis with CoreTM dual core processor and wide voltage input range. This powerful computing platform can stand operation 24 hours a day, 7 days a week.
Please click the link below to open the PDF datasheet
View Datasheet - Support Intel 3nd Generation Core i7/i5/Celeron BGA type CPU
- Intel® HM76 PCH
- Support wide temperature -25° C ~ 60° C
- Support VGA & HDMI
- 1 x 2.5″ HDD+1 x m-SATA
- Support PCIEx4 /PCI slot /Mini-PCIE
- Supports 9 ~ 36V wide range DC input
- CPU: Intel Core i7-3555LE
- Max Speed: 2.5GHz
- L3 Cache: 6 MB
- Chipset: Intel HM76
- BIOS: AMI SPI 64 Mb
- CPU: Intel i5-3610ME Processor
- Max Speed: 2.7 GHz
- L3 Cache: 4 MB
- Chipset: Intel HM76
- BIOS: AMI SPI 64 Mb
- CPU: Intel Celeron 1020E processer
- Max Speed: 2.20 GHz
- L3 Cache: 2 MB
- Chipset: Intel HM76
- BIOS: AMI SPI 64 Mb
- Technology: DDR3 1333/1600, non ECC
- On board memory: 4 GB on board
- Socket:
- Maximum Capacity: 12 GB
- Chipset: Intel Integrated Graphics HD4000, support Direct x11
- VGA: 1 x DB15, max resolution up to 2048 x 1536
- HDMI: 1 x HDMI, support HDMI1.4 standard, max to 1920 x 1200 @ 60Hz
- Display Option: Support Dual independent display
- Controller: Intel I210-AT, 10/100/1000 Mbps
- Interface: 2 x RJ-45
- HDD: Support 1x 2.5″HDD + CF module (Optional function)
- SSD: 1 x internal mSATA (Mini-PCIE interface)
- USB: 2 x USB3.0 + 3x USB 2.0
- Serial Port: 2 x DB9, RS232/422/485 with automatic flow control
- DIO: 1 x DB9, 8-bit
- Audio: 2 (1 x Line-0ut, 1 x Mic-in)
- LPT: 1 x DB26 (Front panel, option)
- PCIE: 1 x PCIEx4
- PCI: 1 x PCI32 33Mhz Slot
- LED: Power x 1/Storage x 1/Fault x 1
- Button: Power on/off Switch x 1
- Power Type: ATX/AT
- Power Input: Voltage 9 ~ 36VDC
- Output System: reset
- Interval Programmable: 1~255 sec/min
- Temperature: Operating (With Industral SSD): -25 ~ 60° C with 0.7m/S air flow
- Humidity: 95% @ 40° C (non-condensing)
- Vibration: With SSD: 2 Grms @ 5 ~ 500 Hz, random, 1 hr/axis
- Shock: With SSD: 20G, IEC-68-2-27, half-sine wave, 11 ms duration
- Dimension (W x H x D): 253 x 129 x 240 mm
- Install: Desktop/Wall-mounting
- EMC: CE/FCC Class A, CCC, BSMI
- Safety: UL,CCC,BSMI
System Chipset
Memory
1 x 204-pin SODIMM (up to 8GB per DIMM)
Note: SODIMM and HDD Tray has mechanism interferences, only 1 x HDD or 1 x CF can be used when you
request to expand memory size
Display
Ethernet
Storage
I/O
Expansion Slot
1 x Internal Mini-PCIe (Full-Size)
LED & Button
Reset button x 1
Power
Watchdog Timer
Environment
Temperature: Operating (with HDD): 0 ~ 40° C
Temperature: Non-Operating: -40 ~ 85° C
With 2.5″ HDD: 0.5 Grms @ 5 ~ 500 Hz, random, 1 hr/axis
With 2.5″ HDD: 10G, IEC-68-2-27, half-sine wave, 11 ms duration
Mechanical Features
Certifications
