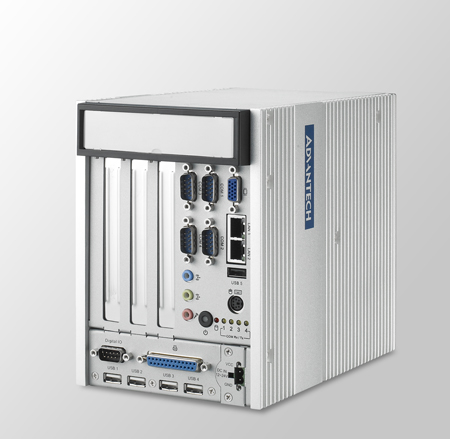

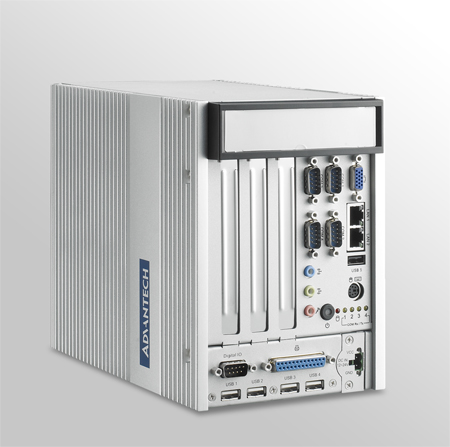

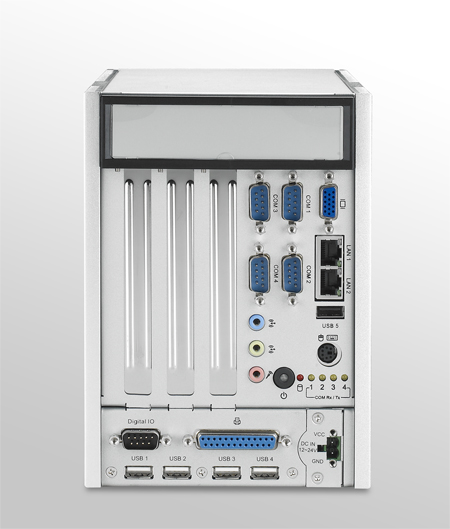

ARK-5260 Intel® Atom™ D510 with Dual PCI/PCIe Expansion and Dual Mobile HDDs
£0.00 excl. vat
ARK-5260 Intel® Atom™ D510 with Dual PCI/PCIe Expansion and Dual Mobile HDDs
Out of stock
Please click the link below to open the PDF datasheet
View Datasheet - Sealed construction with fanless operation, supports Intel® Atom® D510 up
- Supports 2 Giga LAN and 5 USB 2.0 ports
- Supports 4 RS-232/422/485 with Auto-flow control
- Built-in 1 x PCIe, and 2 x PCI expansion slots
- Rubber anti-vibration card-holder for PC expansion boards
- Supports wide power range of 12~ 24V DC input
- Supports SUSIAccess and Embedded Software APIs
- IP40
to 1.66 GHz
- Processor System
- CPU: Intel Atom™ D510 processor
- Max. Speed: 1.66 GHz
- System Chipset: ICH8M
- BIOS: AMI 16 MB SPI BIOS
- Technology: Single channel DDR2 667 MHz
- Max. Capacity: 2 GB SODIMM
- Socket: 1 x 200-pin SODIMM
- Chipset: Embedded Gen3.5+ GFX Core technology, Direct X 9/Pixel Shader 2.0 compliant
- VRAM: Shared 224 MB
- Interface: VGA: Supports up to 2048 x 1536 @ 60 Hz
- LAN1: 10/100/1000 Mbps GigaLAN Controller, Supports Wake On LAN
- LAN2: 10/100/1000 Mbps GigaLAN Controller, Supports Wake On LAN
- Audio Interface: Line-in, Line-out, Mic-in
- Serial Ports: 4 x RS-232/422/485 port, support Auto-flow control
- USB Interface: 5 x USB ports, USB 2.0 compliant
- Keyboard/Mouse: 1 x PS/2 port, supports PS/2 mouse and keyboard
- Parallel Port: Supports D-sub 25-pin connector
- Digital I/O: Supports 8-bit digital IO
- Watchdog timer: 255-level timer interval, setup by software
- COM: LED 4 COM LED lighting
- HDD: Supports two drive bays space for SATA 2.5″ HDD (9.5 mm height only)
- SSD: Supports one internal CompactFlash socket for type I/II CompactFlash disk
- PCI/PCIe Slot: 2 PCI Slot, and 1 PCIe x1 Slot Supports maximum 15W power for expansion Supports maximum dimension of 99 mm (width) x 186 mm (length) for expansion PC board
- Microsoft Windows: Windows 7, XP Embedded, WinCE 6.0
- Power Type: ATX
- Power Input Voltage: 12 VDC ~ 24 VDC
- Minimum Power Input: 12 V @ 5 A ~ 24 V @ 2.5 A
- Power Adapter: AC-to-DC, 65 W DC19 V/3.4 A
- Typical: 20W
- Max.: 23W
- Construction: Aluminum housing
- Mounting: Desk/wall-mounting
- Dimensions (W x H x D): 137 x 189 x 221 mm (5.39″ x 7.44″ x 8.70″)
- Weight: 4.2 kg (9.24 lbs)
- Operating Temperature: With extended temperature peripherals 2.5-inch HDD without PC expansion Boards: 0 ~ 45° C With extended temperature peripherals CompactFlash disk without PC expansion Boards: -20 ~ 55° C
- Storage Temperature – 40 ~ 85° C (-40 ~185° F)
- Relative Humidity 95% @ 40° C (non-condensing)
- Vibration Loading During Operation: With 2.5-inch HDD: 1 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 Oct./min, 1 hr/axis With Compact Flash disk: 5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 Oct./min, 1 hr/axis
- Shock During Operation: With 2.5-inch HDD: 20 G, IEC 60068-2-27, half sine, 11 ms duration With Compact Flash disk only: 50 G, IEC 60068-2-27, half sine, 11 ms duration
- EMC: CE/FCC, CCC, BSMI
- Safety Certifications: CCC, BSMI
Memory
Graphics
Ethernet
IO Interface
Other
Storage
Expansion
Software Support
Power Requirement
Power Consumption
Mechanical
Environment
