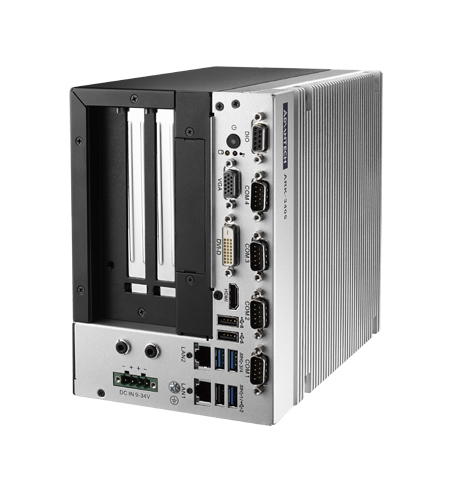

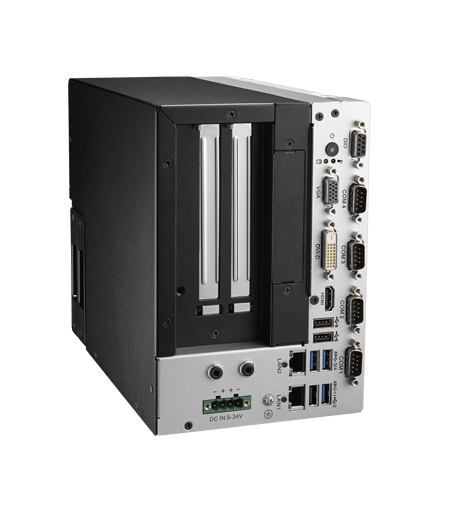

ARK-3405 Intel® Celeron™ N3160 Fanless Embedded Box PC with Rich Expansion and Dual Removable 2.5″ HDD Drive Bays

Processor System

• • CPU: Intel Celeron N3160 processor
  • Max. speed: 1.6GHz, Turbo boost up to 2.24GHz
  • BIOS: AMI EFI 64 Mbit BIOS

Memory

• • Technology: DDR3L 1600MHz
  • Max. Capacity: 8 GB
  • Socket: 1 x 204-pin SO-DIMM

Graphics

• • Chipset: Intel HD 8 Gen Integrated Graphic Engine
  • Interface:

VGA: Up to 1920 x 1200 @ 60Hz
DVI-D: 1920 x 1200 @ 60Hz
HDMI: 2560 x 1600 @ 60Hz; 3840 x 2160 @ 30Hz

• • Triple Display: VGA + DVI-D + HDMI

Ethernet

• • LAN 1: 10/100/1000 Mbps Intel i210 Ethernet controller, support Wake on LAN
  • LAN 2: 10/100/1000 Mbps Intel i210 Ethernet controller, support Wake on LAN

Audio

• • Interface: Realtek ALC892; Mic-in and Line-Out

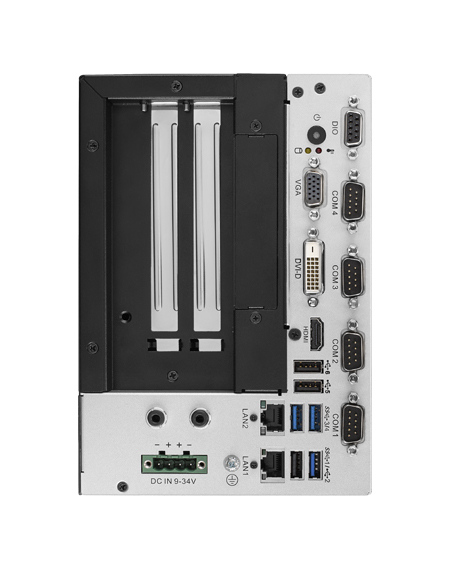

IO interface

• • Serial Interface: 2 x RS-232, 2 x RS-232/422/485 w/ auto flow control (Default) ; COM 4 support 5V/12V power supply (by jumper)

Additional 2 x RS-232 ports support by cable and bracket (Optional by project support)

• • USB Interface: 3 x USB 2.0 + 3 x USB 3.0, 1 x internal USB2.0
  • Digital I/O: 8-bit digital IO
  • P/S2: 1 x PS/2 port support by cable and bracket (Optional by project support)

Other

• • Watchdog Timer: 255-level timer interval, setup by software
  • TPM: TPM 2.0 (Optional by project support)

Expansion

• • Add-on Card Slot:

2 Slots PCI (default)
1 Slot PCI and 1 Slot PCIe x1 (Optional: AMO-R020E);
2 Slots PCIe x1 (Optional :AMO-R019E);
Maximum card size of 180mm (L) x 110mm (H)
Maximum power consumption 10w for each slot

• • Mini PCIe: 2 x Full-size Mini PCIe ( 1 Mini PCIe with SIM holder)

Storage

• • HDD/SSD: Two 2.5″ SATA removable HDD Bays with maximum device height 12.5mm
  • SD: 1 internal SD Card slot support

Software Support

• • Microsoft Windows: Windows 10, Windows 8.1, Windows 7, WES8.1 , WES7
  • Linux: Support by project

Power Requirement

• • Power Type: AT/ATX
  • Power Input Voltage: 9 VDC ~ 36 VDC
  • Power Adapter: AC to DC, DC12V/7A, 84W (Optional)

Power Consumption

• • Typical: 9.7W
  • Max.: 22.8W

Mechanical

• • Construction: Aluminum housing
  • Mounting: Desk/wall-mounting
  • Dimensions (W x H x D): 142.8 x 198 x 215 mm (5.63″ x 7.79″ x 8.46″)
  • Weight: 3.16 kg (6.97 lb)

Environment

• • Operating Temperature: With extended temperature peripherals: -10 ~ 55 °C (-14 ~ 131 °F) with 0.7m/s air flow

With 2.5-inch hard disk 0 ~ 40 °C (32 ~ 104 °F) with 0.7m/s air flow

• • Storage Temperature: -40 ~ 85° C (-40 ~ 185°F)
  • Relative Humidity: 95% @ 40° C (non-condensing)
  • Vibration Loading During Operation: With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
  • Shock During Operation: With SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration
  • EMC: CE/FCC Class A, CCC, BSMI
  • Safety Certifications: CB, UL, CCC, BSMI
