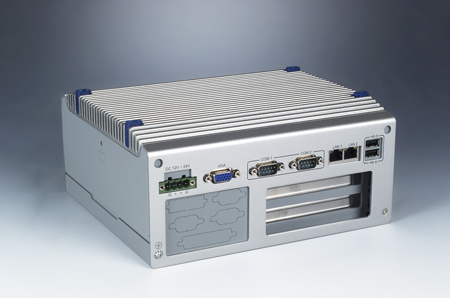

ARK-3403 Intel® Atom™ D510/D525 Fanless Embedded Box PC with PCI/PCIe Expansion and Dual SATA HDDs
Call for Price
Intel® Atom™ D510/D525 Fanless Embedded Box PC with PCI/PCIe Expansion and Dual SATA HDDs
Please click the link below to open the PDF datasheet
View Datasheet - Intel® Atom™ D510/D525 dual core up to 1.8 GHz Fanless Embedded Box PC
- Supports VGA and LVDS dual display and support for widescreens with high resolution
- Supports 2 GbE, eSATA, 6 USB 2.0, audio and 4 COM ports
- Two internal 2.5″ SATA HDD drive bays
- Supports 2 x Mini PCIe, 2 x PCI/PCIe expansion interfaces for diverse applications
- Easy integration, easy maintenance, and wide input voltage range
- Supports SUSIAccess and Embedded Software APIs
- IP40
- Processor System
- CPU: Intel Atom D510 processor
- Max. speed: 1.66 GHz
- System Chipset: Intel ICH8-M
- BIOS: AMI 16 Mbit SPI BIOS
- CPU: Intel Atom D525 processor
- Max. speed: 1.8 GHz
- System Chipset: Intel ICH8-M
- BIOS: AMI 16 Mbit SPI BIOS
- Technology: DDR2 667 MHz
- Max. Capacity: 2 GB
- Socket: 1 x 200-pin SO-DIMM
- Chipset: Intel 3.5 Gen Integrated Graphic Engine + GFX core
- Interface: VGA: up to 1920 x 1200
- LAN 1: 10/100/1000 Mbps Intel 82567V Ethernet controller, support Wake on LAN
- LAN 2: 10/100/1000 Mbps Intel 82583V Ethernet controller, support Wake on LAN
- Amplifier: –
- Interface: Line-out, Mic-in, Line-in
- Serial Interface: 4 COM, 2 x RS-232 and 2 x RS-232/422/485 port , RS-485 w/auto flow control, 2 extra RS-232 ports (optional)
- USB Interface: 6 x USB ports, Compliant with USB 2.0
- Parallel Port: Supports D-sub 25-pin connector (optional)
- Digital I/O: Support 16-bit digital IO (optional)
- Thermal Alarm: Yellow LED lighting
- Watchdog Timer: 255-level timer interval, setup by software
- PCI/PCIe Slot:
- Mini PCI/Mini PCIe: 2 x Mini PCIe
- HDD: Supports drive bay space for 2 x SATA 2.5″ HDD (9.5 mm height only)
- SSD: Supports CompactFlash socket for type I/II CompactFlash disk
- Microsoft Windows: Windows 7, XP Professional, XP Embedded, WinCE 6.0
- Linux: Fedora 12
- Power Type: AT/ATX
- Power Input Voltage: 12 VDC ~ 24 VDC
- Minimum Power Input: 12 VDC ~ VDC @ 4.6 A ~ 2.4 A
- Power Adapter: AC to DC, DC19V/7.89A, 150W(Optional)
- Typical: 13 W (with Intel Atom D510 1.66 GHz and w/o expansion)
- Max.: 15 W (with Intel Atom D510 1.66 GHz and w/o expansion)
- Construction: Aluminum housing
- Mounting: Desk/wall-mounting
- Dimensions (W x H x D): 220 mm x 102.5 mm x 200 mm (8.66″ x 4.04″ x 7.87″ )
- Weight: 4 kg (8.8 lb)
- Operating Temperature: With extended temperature peripherals CompactFlash disk: -10 ~ 55° C
- Storage Temperature: -40 ~ 85° C (-40 ~ 185°F)
- Relative Humidity: 95% @ 40° C (non-condensing)
- Vibration Loading During Operation: With CompactFlash disk: 5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 Oct./min, 1 hr/axis.
- Shock During Operation: With CompactFlash disk: 50 G, IEC 60068-2-27, half sine, 11 ms duration
- EMC: CE/FCC Class A, CCC, BSMI
- Safety Certifications: UL, CCC, BSMI
Memory
Graphics
18-bit LVDS interface(Optional)
Ethernet
Audio
IO interface
Other
Expansion
1 Slot PCI and 1 Slot PCIe x1 (default);
2 Slots PCIe x1 (optional);
2 Slots PCI (optional)
Supports maximum dimension of 167 mm (width) x 106 mm (length) for expansion PC board
Storage
Software Support
Power Requirement
Power Consumption
Mechanical
Environment
With extended temperature peripherals 2.5-inch hard disk -10 to 45° C, with air flow
With 2.5-inch hard disk: 1 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 Oct./min, 1 hr/axis.
With hard disk: 20 G, IEC 60068-2-27, half sine, 11 ms duration
